CM35LV-QRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

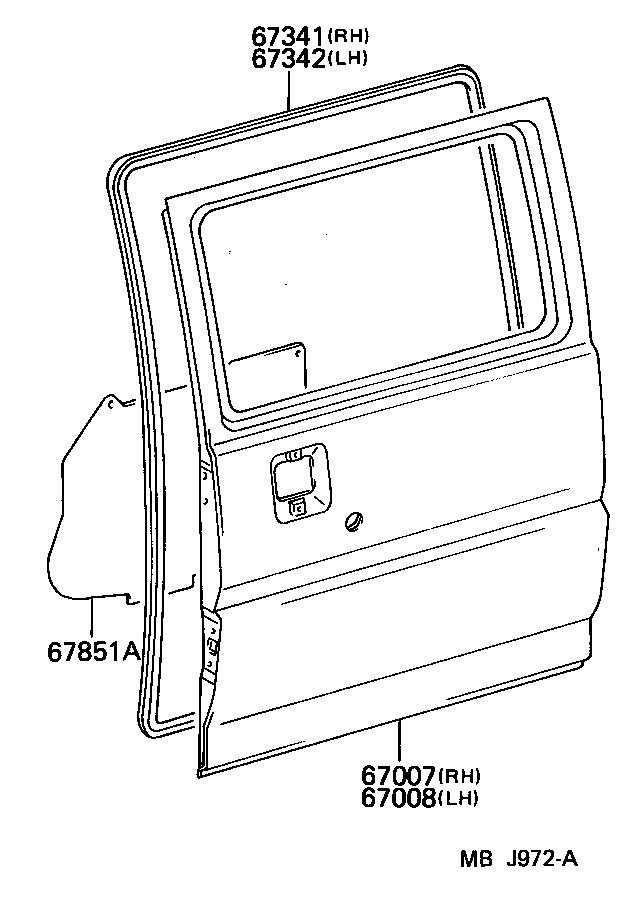

ILLUST NO. 1 OF 2(8510- )

Click highlighted areas on diagram

diagram 67007 67008 67341 67342 67851A
Part # Description Qty Price
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-95714

CM35,KM36..LHD..02S

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
67871-95702

CM35,KM3#..LHD

 1
67871-95700

CM35,KM3#..LHD

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-95701

CM35,KM3#..MRF

 1

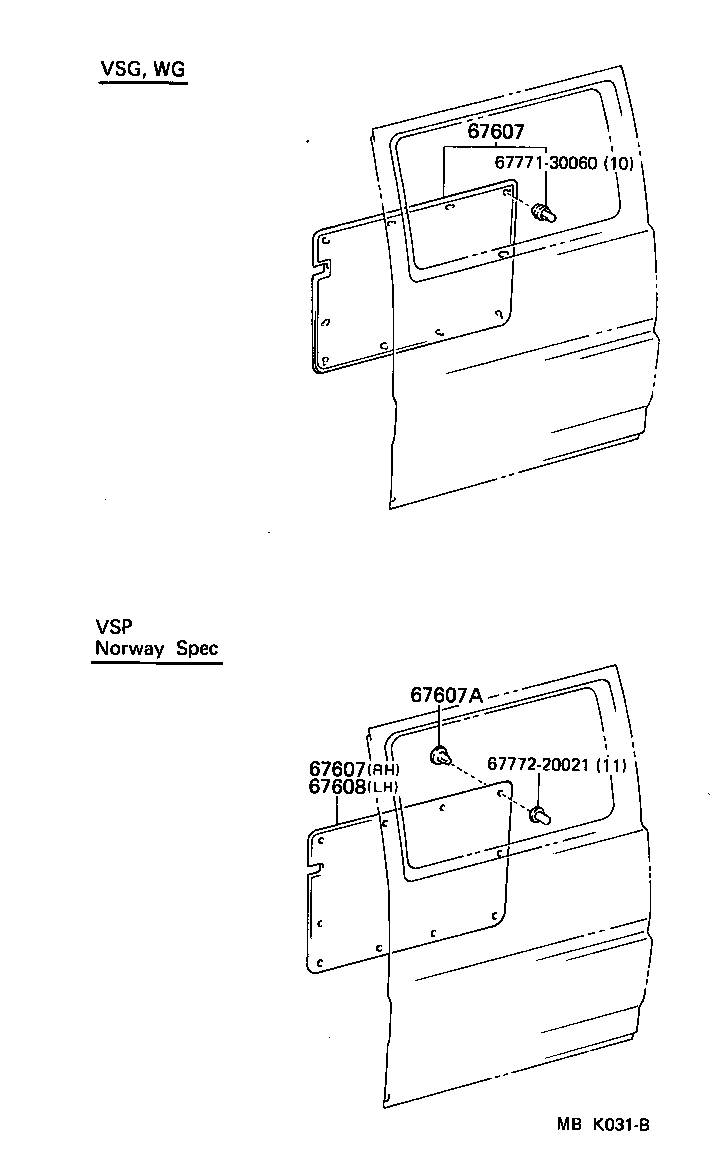

ILLUST NO. 2 OF 2(8510- )

Click highlighted areas on diagram

diagram 67607 67607 67607A 67608 6777130060 6777220021
Part # Description Qty Price
67607 - BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
67613-95708

CM35,KM36..LHD..02S

 1
67607 - BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
67613-95708

CM35,KM36..LHD..02S

 1
67607A - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-0804006

CM35,KM36..MRF..02S

BROWN,BROWN,TRIM4#

 10
Common parts
67771-30060
67772-20021
