CM35LV-QRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

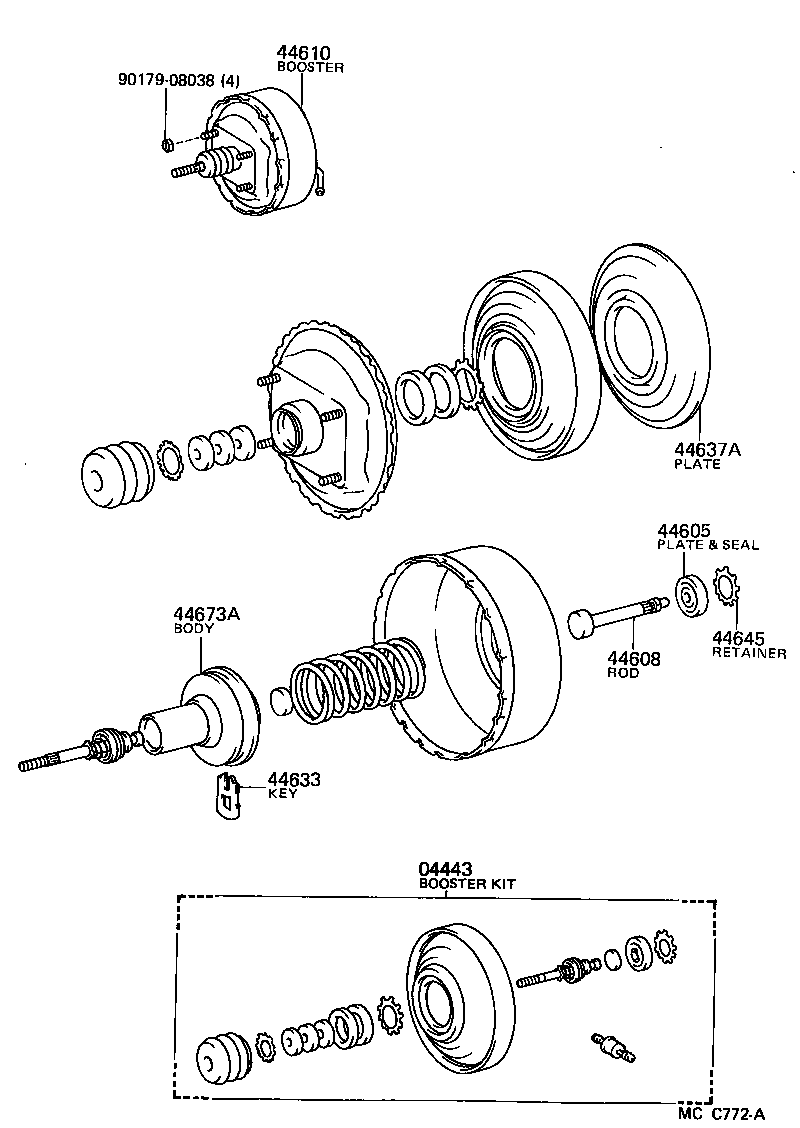

ILLUST NO. 1 OF 2(8510- )4F..05S ; (8510- )CM35..LHD ; (8510- )KM36..LHD..02S

Click highlighted areas on diagram

SINGLE BOOSTER

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-27270

CM35..LHD

SINGLE BOOSTER

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44610 - BOOSTER ASSY, BRAKE
44610-27250

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44673A - BODY, BOOSTER VALVE
44673-28190

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
Common parts
90179-08038

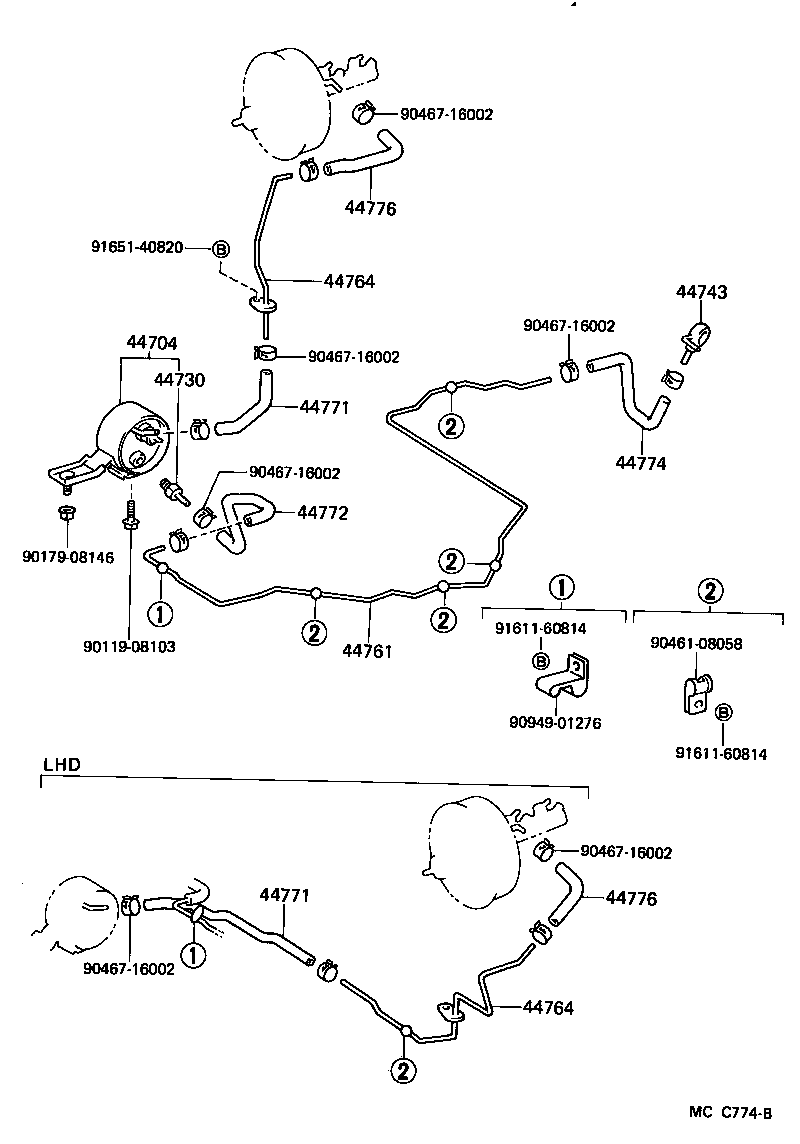

ILLUST NO. 2 OF 2(8510- )CM35

Click highlighted areas on diagram

diagram 44704 44730 44743 44761 44764 44764 44771 44771 44772 44774 44776 44776 9011908103 9017908146 9046108058 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901276 9161160814 9161160814 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44740-27040

CM35

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

CM35

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09064

CM35

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27120

CM35

 1
44764 - TUBE, BOOSTER VACUUM
44764-27050

CM35,KM3#..LHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-27050

CM35,KM3#..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27070

CM35..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27070

CM35..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27030

CM35

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-27100

CM35

 1
44776 - HOSE, BRAKE BOOSTER
44776-27010

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
44776 - HOSE, BRAKE BOOSTER
44776-27010

CM35..LHD;KM36..4F..05S;KM36..LHD..02S

SINGLE BOOSTER

 1
Common parts
90119-08103
90179-08146
90461-08058
90467-16002
90949-01276
91611-60814
91651-40820
