CM35LV-QRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

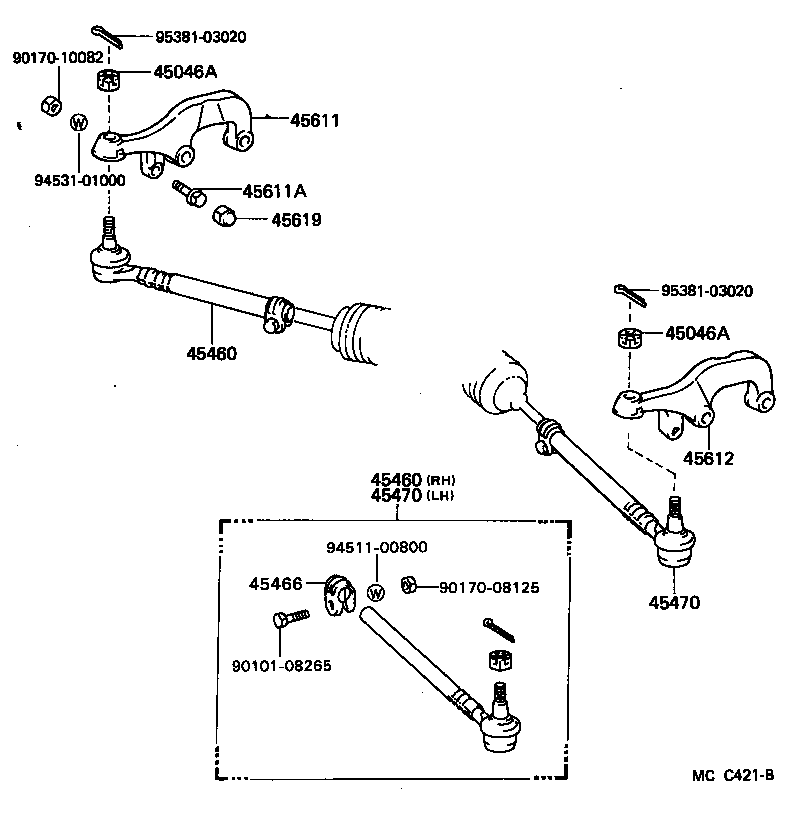

ILLUST NO. 2 OF 2(8510- )

Click highlighted areas on diagram

diagram 45046A 45046A 45460 45460 45466 45470 45470 45611 45611A 45612 45619 9010108265 9017008125 9017010082 9451100800 9453101000 9538103020 9538103020
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CM35,KM3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CM35,KM3#

 2
45460 - ROD ASSY, TIE, RH
45460-29315

CM35,KM3#

 1
45460 - ROD ASSY, TIE, RH
45460-29315

CM35,KM3#

 1
45466 - CLAMP, TIE ROD END
45466-22010

CM35,KM3#

 2
45470 - ROD ASSY, TIE, LH
45470-29085

CM35,KM3#

 1
45470 - ROD ASSY, TIE, LH
45470-29085

CM35,KM3#

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-28030

CM35,KM3#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

CM35,KM3#

 2
45612 - ARM, STEERING KNUCKLE, LH
45612-28030

CM35,KM3#

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

CM35,KM3#

 2
Common parts
90101-08265
90170-08125
90170-10082
94511-00800
94531-01000
95381-03020

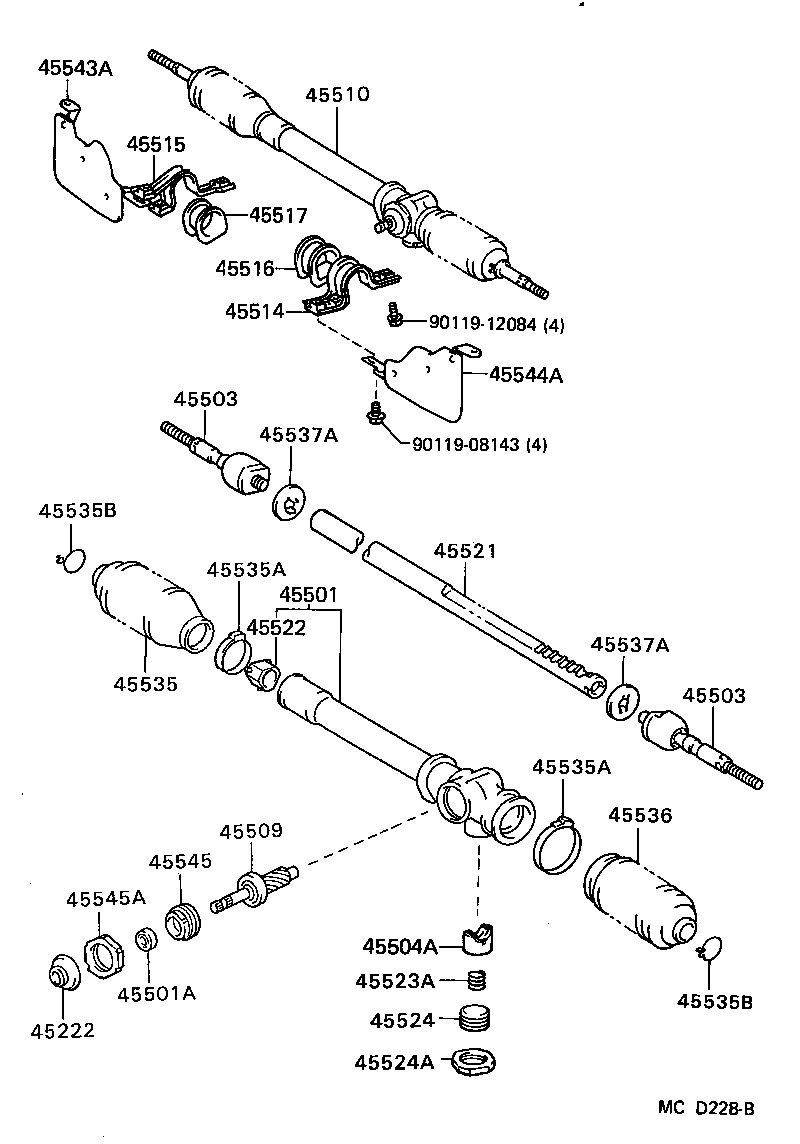

ILLUST NO. 1 OF 2(8510- )LHD

Click highlighted areas on diagram

diagram 45222 45501 45501A 45503 45503 45504A 45509 45510 45514 45515 45516 45517 45521 45522 45523A 45524 45524A 45535 45535A 45535A 45535B 45535B 45536 45537A 45537A 45543A 45544A 45545 45545A 9011908143 9011912084
Part # Description Qty Price
45222 - COVER, STEERING GEAR DUST
45222-27020

CM35,KM36

 1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-27020

CM35,KM3#..LHD

 1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-15001

CM35,KM3#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-29095

CM35,KM3#

 2
45503-29135

CM35,KM3#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-29095

CM35,KM3#

 2
45503-29135

CM35,KM3#

 2
45504A - GUIDE SUB-ASSY, RACK
45504-27010

CM35,KM3#

 1
45509 - PINION SUB-ASSY, STEERING
45509-27020

CM35,KM3#..LHD

 1
45510 - GEAR ASSY, STEERING
45510-27020

CM35,KM3#..LHD

 1
45510-27021

CM35,KM3#..LHD

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-28020

CM35,KM3#

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-28020

CM35,KM3#

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-27010

CM35,KM3#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-27010

CM35,KM3#

 1
45521 - RACK, STEERING
45521-27020

CM35,KM3#..LHD

 1
45522 - BUSH, STEERING RACK
45522-27010

CM35,KM3#

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23075

CM35,KM3#

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-16030

CM35,KM3#

 1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36002

CM35,KM3#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-27010

CM35,KM3#

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-56001

CM35,KM3#

LH

 1
90460-42001

CM35,KM3#

RH

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-56001

CM35,KM3#

LH

 1
90460-42001

CM35,KM3#

RH

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-18003

CM35,KM3#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-18003

CM35,KM3#

 2
45536 - BOOT, STEERING RACK, NO.2
45536-27010

CM35,KM3#

 1
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14005

CM35,KM3#

 2
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14005

CM35,KM3#

 2
45543A - PROTECTOR, STEERING RACK BOOT, RH
45057-95701

CM35..5H;KM36..4F..05S

NORWAY SPEC

 1
45544A - PROTECTOR, STEERING RACK BOOT, LH
45058-95701

CM35..5H;KM36..4F..05S

NORWAY SPEC

 1
45545 - SCREW, PINION BEARING ADJUSTING
45545-27010

CM35,KM3#

 1
45545A - NUT(FOR PINION BEARING ADJUSTING SCREW)
90179-38001

CM35,KM3#

 1
Common parts
90119-08143
90119-12084
