CM35LV-QRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

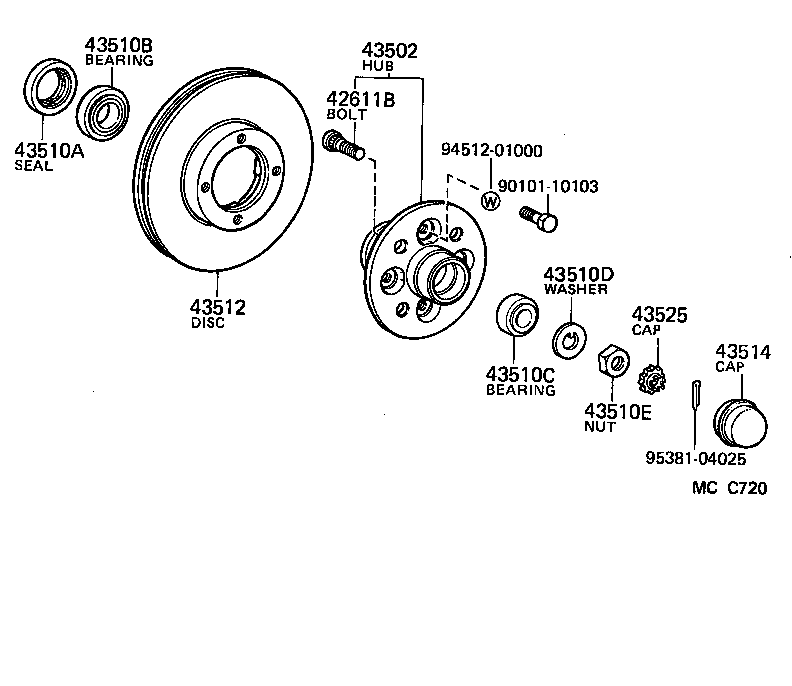

Click highlighted areas on diagram

diagram 42611B 43502 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9010110103 9451201000 9538104025
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02048

CM35,KM3#

 8
43502 - HUB SUB-ASSY, FRONT AXLE
43502-28030

CM35,KM3#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-48001

CM35,KM3#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-31067

CM35,KM3#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-19037

CM35,KM3#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20005

CM35,KM3#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

CM35,KM3#

 2
43512 - DISC, FRONT
43512-28050

CM35,KM3#

 2
43514 - CAP, FRONT HUB GREASE
43514-27010

CM35,KM3#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

CM35,KM3#

 2
Common parts
90101-10103
94512-01000
95381-04025
