CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

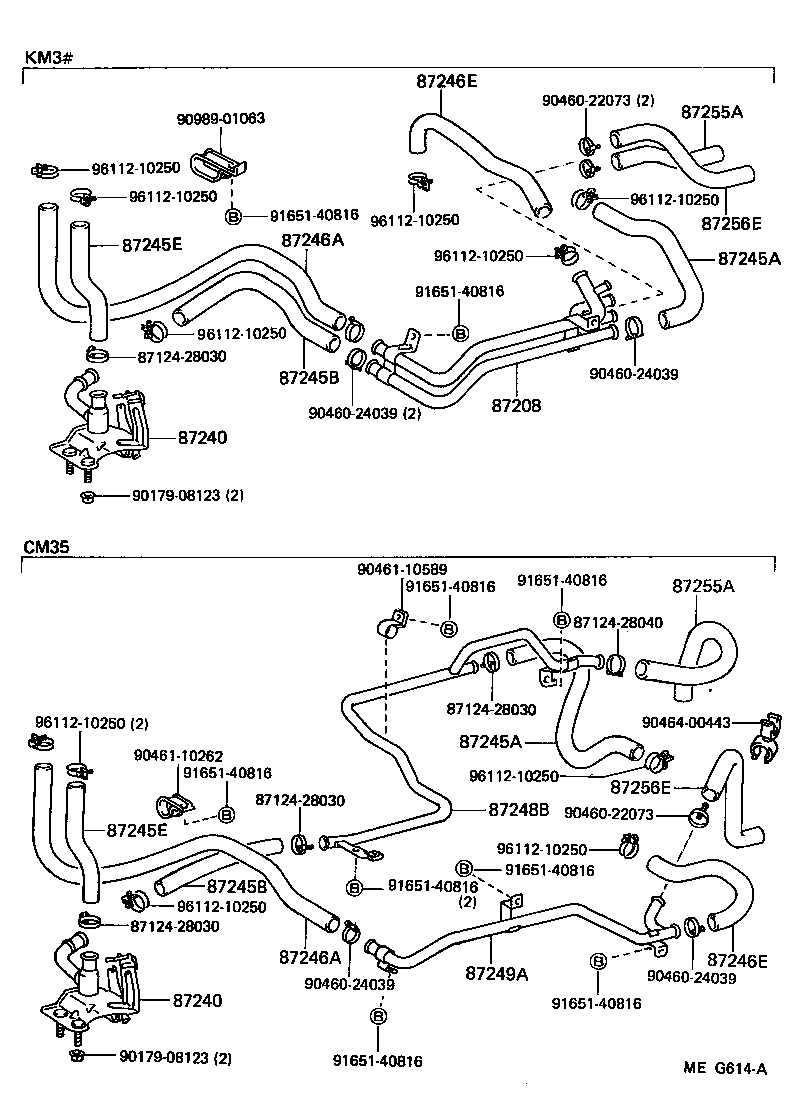

ILLUST NO. 1 OF 2(8510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95731 |
CM35..05S |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95707 |
CM35,KM3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95707 |
CM35,KM3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95736 |
CM35 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95736 |
CM35 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30300 |
CM35 *H,L=250 |
1 | ||
| 99556-30260 |
CM35 *H,L=250 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30300 |
CM35 *H,L=250 |
1 | ||
| 99556-30260 |
CM35 *H,L=250 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30180 |
CM35,KM3# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30180 |
CM35,KM3# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
CM35 *H,L=820 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
CM35 *H,L=820 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95739 |
CM35 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95739 |
CM35 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95721 |
CM35 |
1 | ||
| 87208-95722 |
CM35..05S W/RR HEATER |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95724 |
CM35..05S W/RR HEATER |
1 | ||
| 87208-95723 |
CM35 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-95738 |
CM35..05S |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-95738 |
CM35..05S |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-95741 |
CM35..05S |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-95741 |
CM35..05S |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-28040 | ||||
| 90179-08123 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-10262 | ||||
| 90461-10589 | ||||
| 90464-00443 | ||||
| 90469-24039 | ||||
| 90989-01063 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||

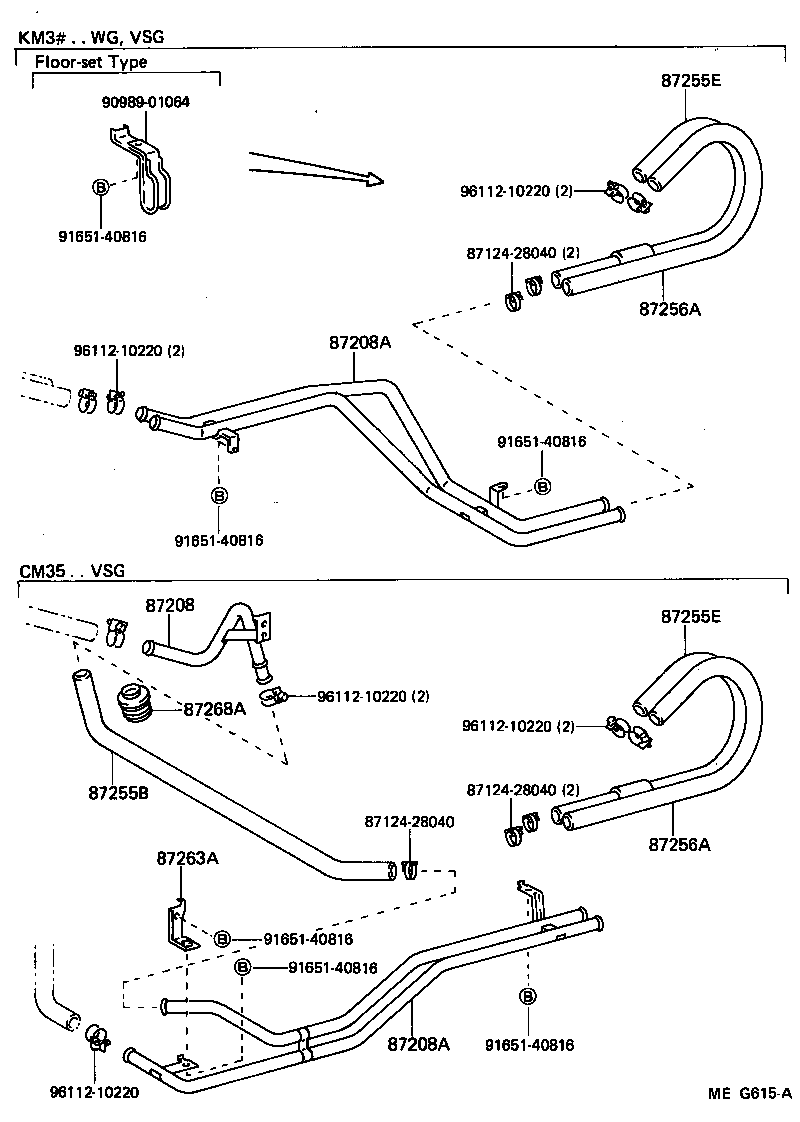

ILLUST NO. 2 OF 2(8510- )05S,08S
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95731 |
CM35..05S |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95736 |
CM35..05S |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95736 |
CM35..05S |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-95751 |
CM35..05S |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95744 |
CM35..05S |
1 | ||
| 87245-95747 |
CM35,KM3#..05S,08S TRIM BUILT-IN TYPE |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95744 |
CM35..05S |
1 | ||
| 87245-95747 |
CM35,KM3#..05S,08S TRIM BUILT-IN TYPE |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20320 |
CM35..05S *H,L=320 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20320 |
CM35..05S *H,L=320 |
1 | ||
| 87263A - BRACKET, HEATER WATER PIPE, NO.2 | ||||
| 87121-95704 |
CM35..05S |
1 | ||
| 87268A - PROTECTOR, REAR HEATER PIPE | ||||
| 87268-95701 |
CM35..05S |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 90989-01064 | ||||
| 91651-40816 | ||||
| 96112-10220 | ||||
