CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 8302 8302 8401 8401 8401 9018305033 9048013013 9354015016 9354015016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-10110

CM35,KM3#

DEF-VENT,WARM-COOL

 2
55905-95707

CM35,KM3#

FRESH-RECIRC

 1
55905A - KNOB, HEATER CONTROL
55905-10110

CM35,KM3#

DEF-VENT,WARM-COOL

 2
55905-95707

CM35,KM3#

FRESH-RECIRC

 1
55905A - KNOB, HEATER CONTROL
55905-10110

CM35,KM3#

DEF-VENT,WARM-COOL

 2
55905-95707

CM35,KM3#

FRESH-RECIRC

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95708

CM35,KM3#..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95710

CM35,KM3#..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95706

CM35,KM3#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95704

CM35,KM3#..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95720

CM35,KM3#..LHD

 1
Common parts
90183-05033
90480-13013
93540-15016
Linked diagrams
8302
8401

(8510- )LHD

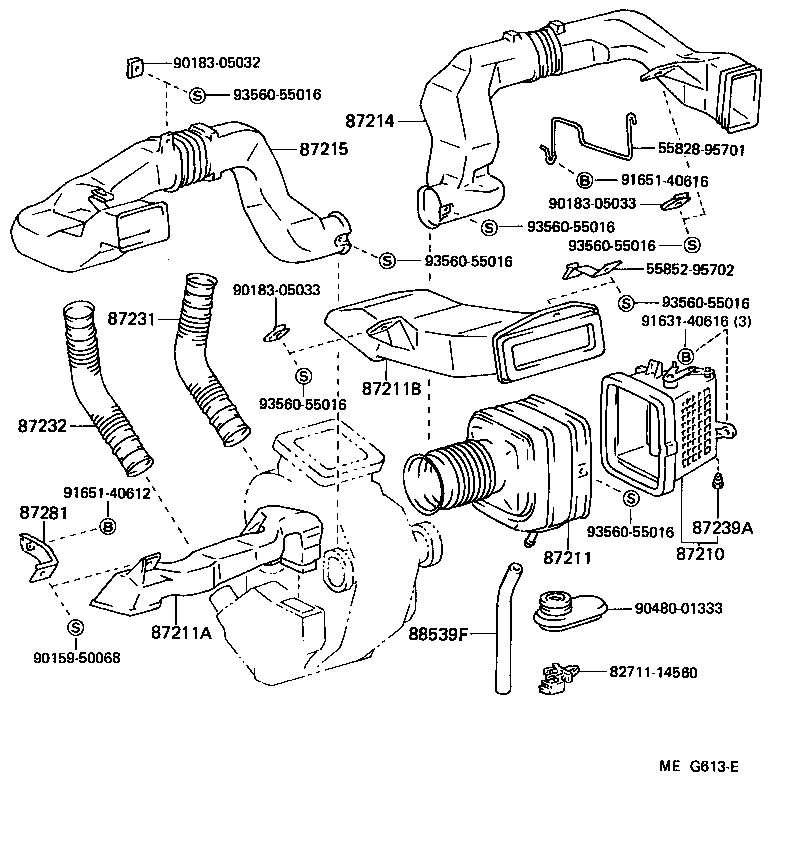

Click highlighted areas on diagram

diagram 5582895701 5585295702 8271114560 87210 87211 87211A 87211B 87214 87215 87231 87232 87239A 87281 88539F 9015950068 9018305032 9018305033 9018305033 9048001333 9163140616 9165140612 9165140616 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016
Part # Description Qty Price
87210 - DAMPER ASSY, AIR
87210-95708

CM35,KM3#..LHD

 1
87211 - DUCT, AIR, NO.1
87211-95714

CM35,KM3#..LHD

 1
87211A - DUCT, AIR, NO.2
87211-95717

CM35,KM3#..LHD

 1
87211B - DUCT, AIR, NO.3
55086-95702

CM35,KM3#..LHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-95704

CM35,KM3#..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-95704

CM35,KM3#..LHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95701

CM35,KM3#

 1
87231-95702

CM35,KM3#

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95701

CM35,KM3#

 1
87231-95702

CM35,KM3#

 1
87239A - COVER, HEATER INLET HOLE
87239-95700

CM35,KM3#

 1
87281 - BRACKET, AIR DUCT
87214-95700

CM35,KM3#..LHD

 1
88539F - HOSE, DRAIN
88539-95707

CM35,KM3#

 1
Common parts
55828-95701
55852-95702
82711-14560
90159-50068
90183-05032
90183-05033
90480-01333
91631-40616
91651-40612
91651-40616
93560-55016
