CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )

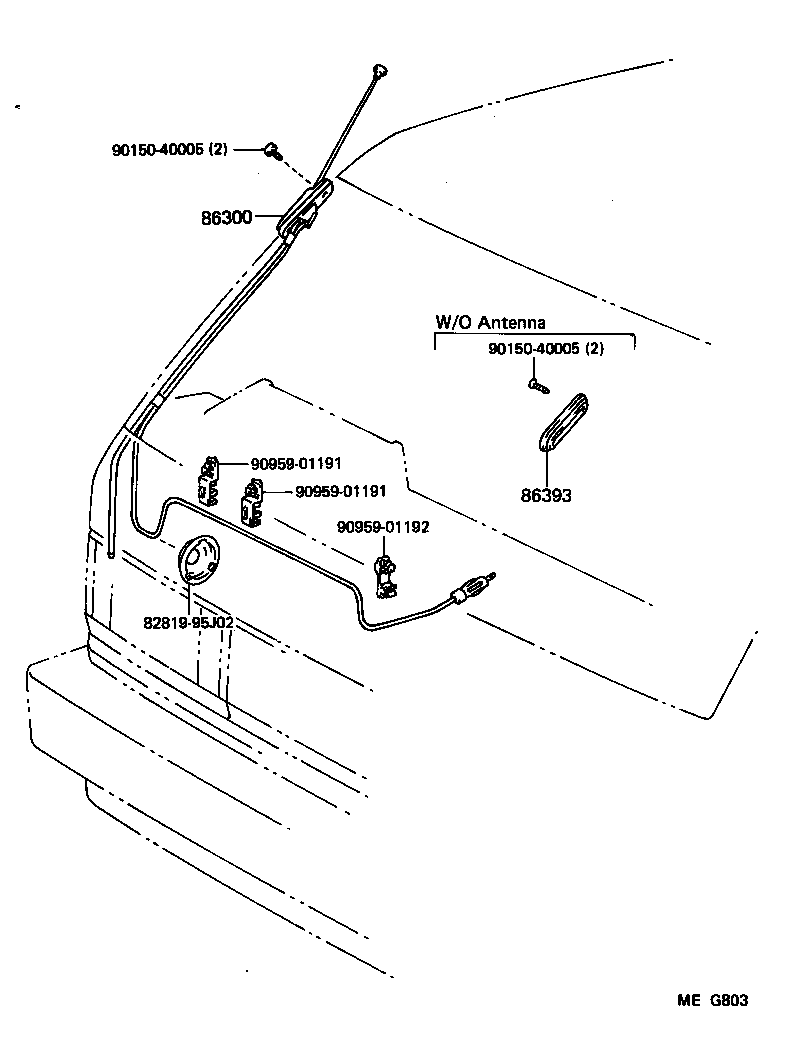

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-95701 |
CM35,KM3# |
1 | ||
| 86300-95702 |
CM35,KM3# |
1 | ||
| 86393 - ORNAMENT, ANTENNA | ||||
| 86392-20031 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 82819-95J02 | ||||
| 90150-40005 | ||||
| 90959-01191 | ||||
| 90959-01192 | ||||
