CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon

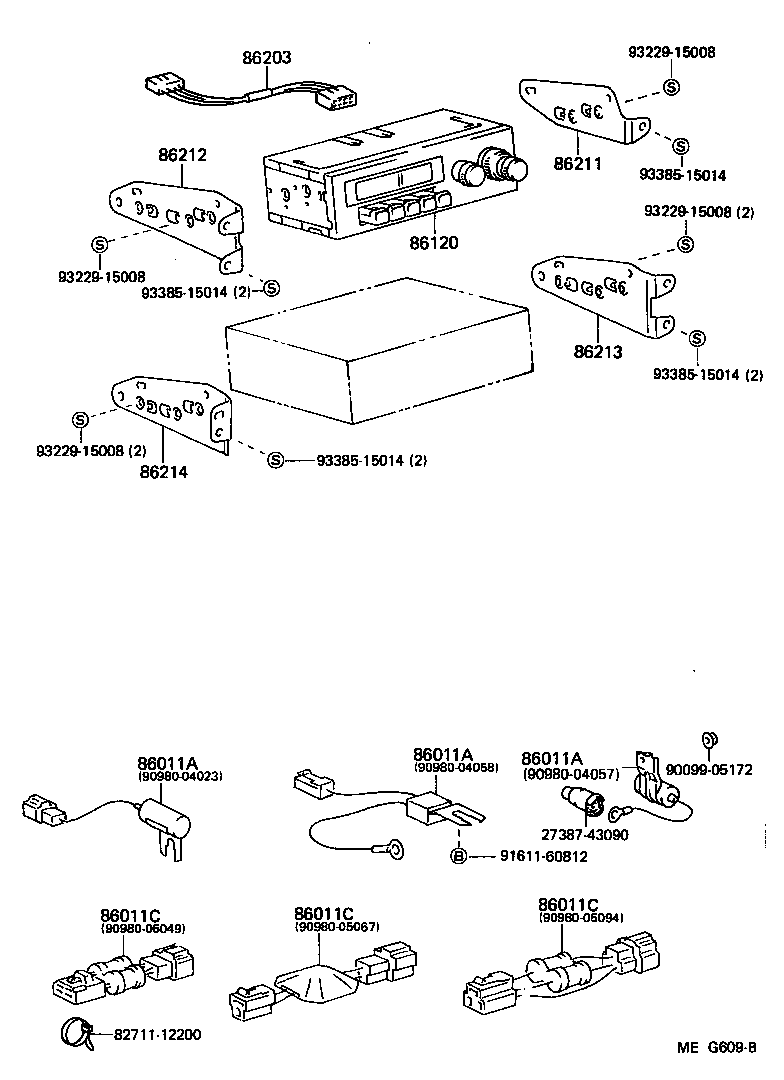

ILLUST NO. 1 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04057 |
CM35,KM3# ALTERNATOR |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04057 |
CM35,KM3# ALTERNATOR |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04057 |
CM35,KM3# ALTERNATOR |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM35,KM3# FLASHER RELAY |
1 | ||
| 90980-05049 |
CM35,KM3# WIPER MOTOR |
1 | ||
| 90980-05067 |
CM35,KM3# STOP LAMP SW |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM35,KM3# FLASHER RELAY |
1 | ||
| 90980-05049 |
CM35,KM3# WIPER MOTOR |
1 | ||
| 90980-05067 |
CM35,KM3# STOP LAMP SW |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM35,KM3# FLASHER RELAY |
1 | ||
| 90980-05049 |
CM35,KM3# WIPER MOTOR |
1 | ||
| 90980-05067 |
CM35,KM3# STOP LAMP SW |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32100 |
CM35,KM3# LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-22401 |
CM35,KM3#..LHD LW/MW/UKW,W/ARI |
1 | ||
| 86120-22402 |
CM35,KM3#..LHD FUJITSU TEN,LW/MW/UKW,W/ARI |
1 | ||
| 86120-22391 |
CM35,KM36..LHD FUJITSU TEN,LW/MW/UKW,W/O ARI |
1 | ||
| 86120-14421 |
CM35,KM3#..LHD AM |
1 | ||
| 86120-32241 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120-32111 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32102 |
CM35,KM3# MATSUSHITA,LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-16350 |
CM35,KM36..LHD FUJITSU TEN,AM |
1 | ||
| 86120-32110 |
CM35,KM3# LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32240 |
CM35,KM3# LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-16100 |
CM35,KM36..LHD LW/MW/UKW,W/O ARI |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86215-95700 |
CM35,KM3# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-95704 |
CM35,KM3# |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86211-95713 |
CM35,KM3#..LHD |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86212-95704 |
CM35,KM3#..LHD |
1 | ||
| Common parts | ||||
| 27387-43090 | ||||
| 82711-12200 | ||||
| 90099-05172 | ||||
| 90980-04023 | ||||
| 90980-04057 | ||||
| 90980-04058 | ||||
| 90980-05049 | ||||
| 90980-05067 | ||||
| 90980-05094 | ||||
| 91611-60812 | ||||
| 93229-15008 | ||||
| 93385-15014 | ||||

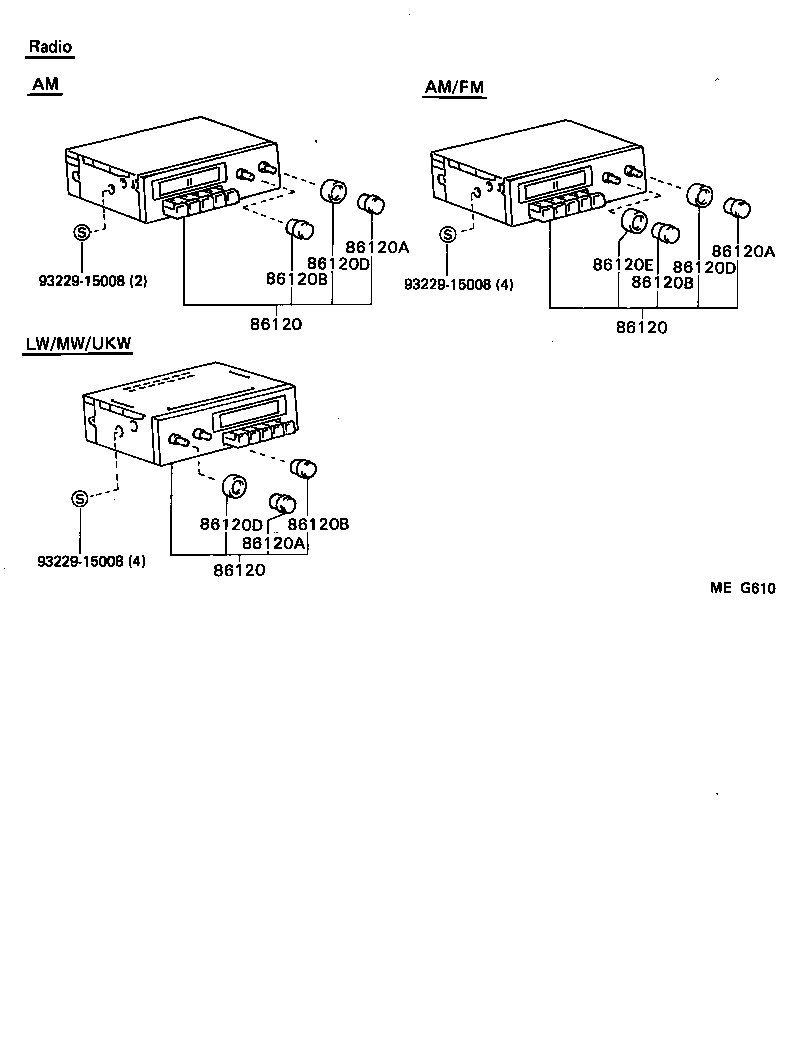

ILLUST NO. 2 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32100 |
CM35,KM3# LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-22401 |
CM35,KM3#..LHD LW/MW/UKW,W/ARI |
1 | ||
| 86120-22402 |
CM35,KM3#..LHD FUJITSU TEN,LW/MW/UKW,W/ARI |
1 | ||
| 86120-22391 |
CM35,KM36..LHD FUJITSU TEN,LW/MW/UKW,W/O ARI |
1 | ||
| 86120-14421 |
CM35,KM3#..LHD AM |
1 | ||
| 86120-32241 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120-32111 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32102 |
CM35,KM3# MATSUSHITA,LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-16350 |
CM35,KM36..LHD FUJITSU TEN,AM |
1 | ||
| 86120-32110 |
CM35,KM3# LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32240 |
CM35,KM3# LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32100 |
CM35,KM3# LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-22401 |
CM35,KM3#..LHD LW/MW/UKW,W/ARI |
1 | ||
| 86120-22402 |
CM35,KM3#..LHD FUJITSU TEN,LW/MW/UKW,W/ARI |
1 | ||
| 86120-22391 |
CM35,KM36..LHD FUJITSU TEN,LW/MW/UKW,W/O ARI |
1 | ||
| 86120-14421 |
CM35,KM3#..LHD AM |
1 | ||
| 86120-32241 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120-32111 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32102 |
CM35,KM3# MATSUSHITA,LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-16350 |
CM35,KM36..LHD FUJITSU TEN,AM |
1 | ||
| 86120-32110 |
CM35,KM3# LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32240 |
CM35,KM3# LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32100 |
CM35,KM3# LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-22401 |
CM35,KM3#..LHD LW/MW/UKW,W/ARI |
1 | ||
| 86120-22402 |
CM35,KM3#..LHD FUJITSU TEN,LW/MW/UKW,W/ARI |
1 | ||
| 86120-22391 |
CM35,KM36..LHD FUJITSU TEN,LW/MW/UKW,W/O ARI |
1 | ||
| 86120-14421 |
CM35,KM3#..LHD AM |
1 | ||
| 86120-32241 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120-32111 |
CM35,KM3# FUJITSU TEN,LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32102 |
CM35,KM3# MATSUSHITA,LW/MW/UKW MPX W/CST,W/ARI ETR |
1 | ||
| 86120-16350 |
CM35,KM36..LHD FUJITSU TEN,AM |
1 | ||
| 86120-32110 |
CM35,KM3# LW/MW/UKW MPX W/ARI ETR |
1 | ||
| 86120-32240 |
CM35,KM3# LW/MW/UKW,W/O ARI ETR |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-14680 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-14680 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86128-14580 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-32020 |
CM35,KM3# LW/MW/UKW ETR |
1 | ||
| 86128-16040 |
CM35,KM36..LHD AM |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-14680 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-14680 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86128-14580 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-32020 |
CM35,KM3# LW/MW/UKW ETR |
1 | ||
| 86128-16040 |
CM35,KM36..LHD AM |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-14680 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-14680 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86128-14580 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-32020 |
CM35,KM3# LW/MW/UKW ETR |
1 | ||
| 86128-16040 |
CM35,KM36..LHD AM |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-14680 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-16040 |
CM35,KM36..LHD AM |
1 | ||
| 86128-14580 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-14680 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-14680 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-16040 |
CM35,KM36..LHD AM |
1 | ||
| 86128-14580 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-14680 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86128-14680 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-16040 |
CM35,KM36..LHD AM |
1 | ||
| 86128-14580 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-14680 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-14600 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-32040 |
CM35,KM3# LW/MW/UKW ETR |
1 | ||
| 86128-14720 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86128-14720 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-16060 |
CM35,KM36..LHD AM |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-14600 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-32040 |
CM35,KM3# LW/MW/UKW ETR |
1 | ||
| 86128-14720 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86128-14720 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-16060 |
CM35,KM36..LHD AM |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-14600 |
CM35,KM3#..LHD AM,AM/FM |
1 | ||
| 86128-32040 |
CM35,KM3# LW/MW/UKW ETR |
1 | ||
| 86128-14720 |
CM35,KM36..LHD LW/MW/UKW |
1 | ||
| 86128-14720 |
CM35,KM3# LW/MW/UKW |
1 | ||
| 86128-16060 |
CM35,KM36..LHD AM |
1 | ||
| Common parts | ||||
| 93229-15008 | ||||
