CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon

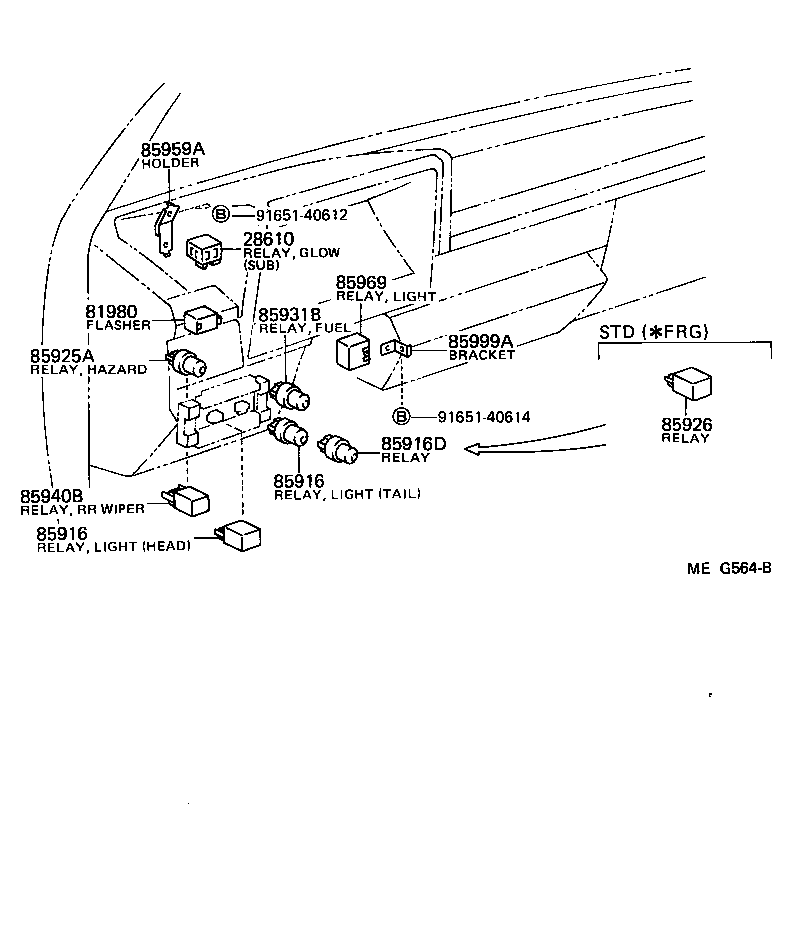

ILLUST NO. 4 OF 7(8510- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64030 |
1C..CM35 MAIN |
1 | ||
| 28610-54021 |
1C..CM35 SUB |
1 | ||
| 28610-55010 |
1C..CM35 MAIN |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CM35,KM3# |
1 | ||
| 81980-22070 |
CM35,KM3# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM35,KM3# TAIL |
1 | ||
| 90987-02006 |
CM35,KM3# HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM35,KM3# TAIL |
1 | ||
| 90987-02006 |
CM35,KM3# HEAD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
CM35,KM3# |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
CM35,KM3#..LHD |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
CM35 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 90987-04002 |
CM35,KM3# |
1 | ||
| 85913-30020 |
CM35,KM3# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27010 |
CM35 |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-17010 |
CM35,KM3# |
1 | ||
| 85969-22012 |
CM35,KM3# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-95708 |
CM35,KM3# |
1 | ||
| 85999-95707 |
CM35,KM3#..LHD COLD SPEC |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||

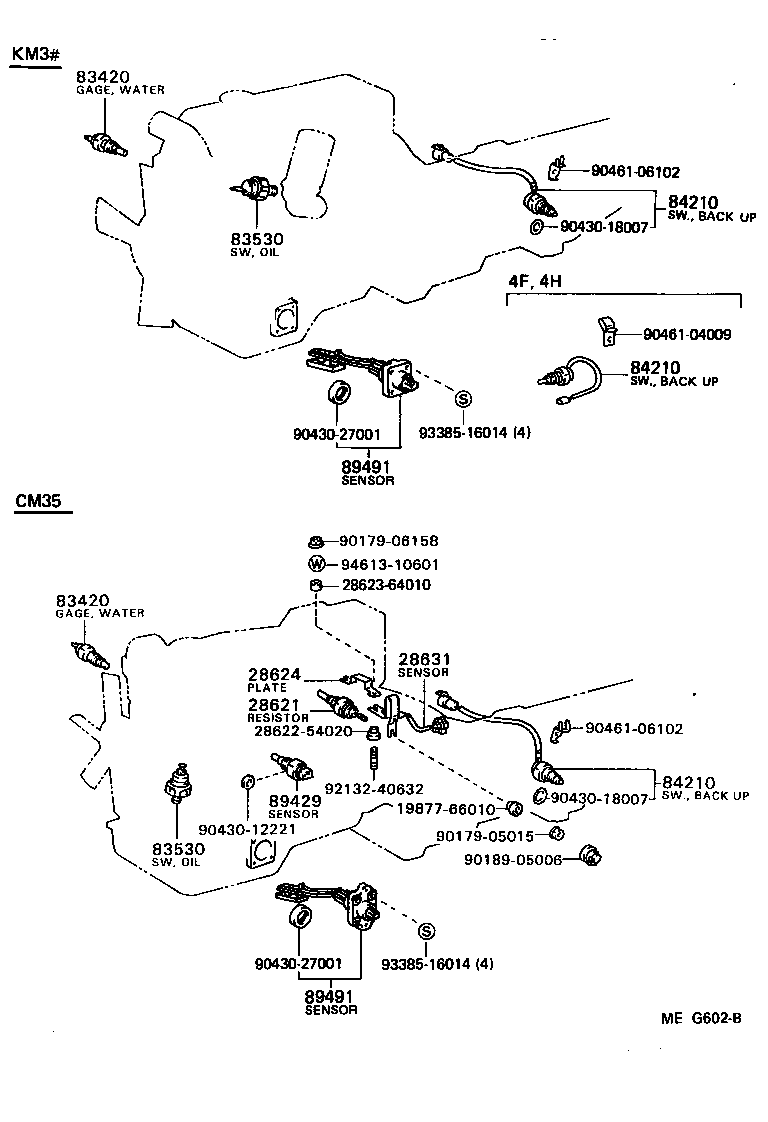

ILLUST NO. 1 OF 7(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
1C..CM35 |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64010 |
1C..CM35 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-64021 |
1C..CM35 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM35,KM3# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM35,KM3# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM35 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM35 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
CM35,KM3#..5F,5H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
CM35,KM3#..5F,5H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
CM35,KM3#..5F,5H |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CM35 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28010 |
CM35 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28010 |
CM35 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-04009 | ||||
| 90461-06102 | ||||
| 92132-40632 | ||||
| 93385-16014 | ||||
| 94613-10601 | ||||

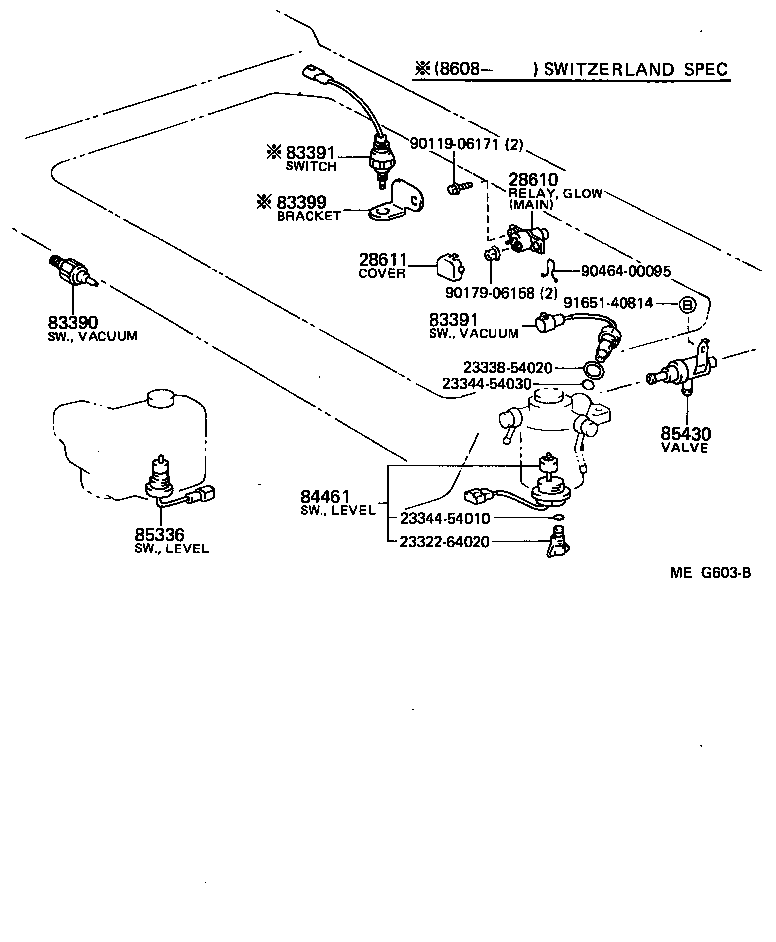

ILLUST NO. 2 OF 7(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64030 |
1C..CM35 MAIN |
1 | ||
| 28610-54021 |
1C..CM35 SUB |
1 | ||
| 28610-55010 |
1C..CM35 MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
1C..CM35 MAIN |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CM35 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
CM35 |
1 | ||
| 83391-32020 |
CM35 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
CM35 |
1 | ||
| 83391-32020 |
CM35 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CM35 |
1 | ||
| 84461-26020 |
CM35 |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-64050 |
CM35 |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23338-54020 | ||||
| 23344-54010 | ||||
| 23344-54030 | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 90464-00095 | ||||
| 91651-40814 | ||||

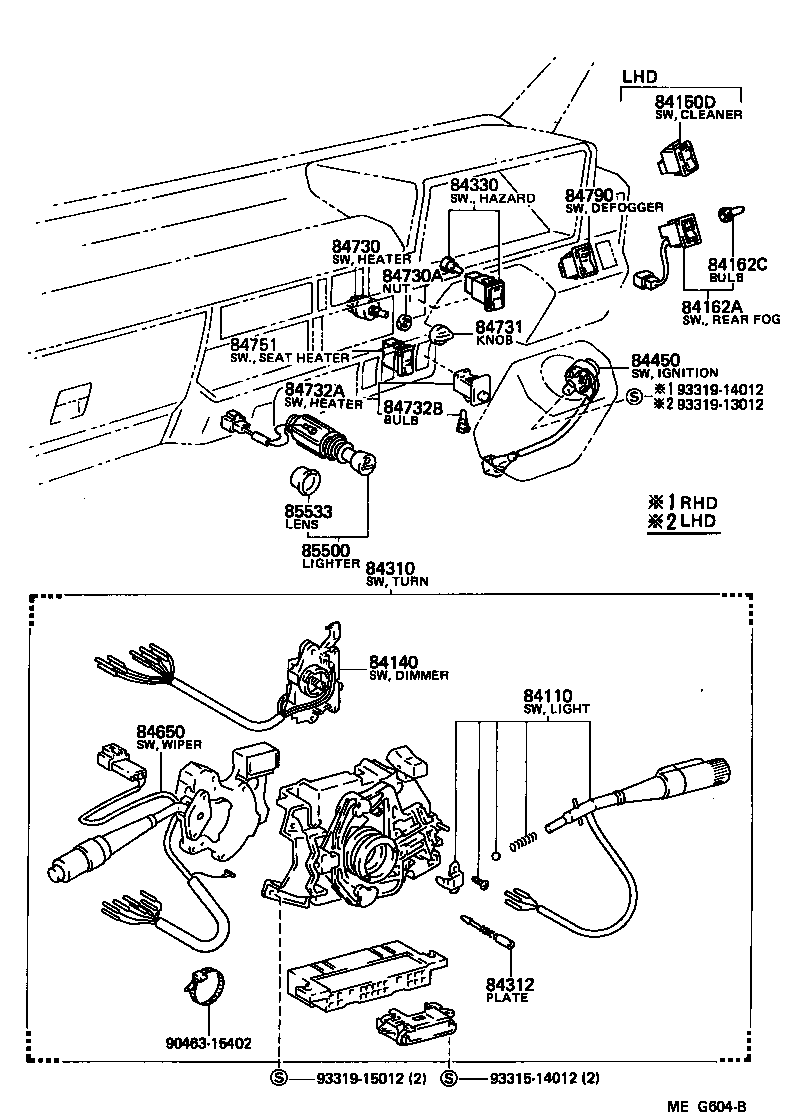

ILLUST NO. 3 OF 7(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29595 |
CM35,KM3#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27030 |
CM35,KM3#..LHD |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-95702 |
CM35,KM3#..LHD |
1 | ||
| 84160-14040 |
CM35,KM3# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10110 |
CM35,KM3# 12V 1.12W |
1 | ||
| 84999-10120 |
CM35,KM3#..LHD 12V 0.7W |
2 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27160 |
CM35,KM31,36..LHD W/*IW |
1 | ||
| 84310-27180 |
CM35,KM3#..LHD W/*IW & RR WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM35,KM3# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27080 |
CM35,KM3#..LHD..(4F,5F) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-27160 |
CM35,KM3#..LHD W/*IW & RR WIPER |
1 | ||
| 84652-27140 |
CM35,KM31,36..LHD W/*IW |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
CM35,KM3# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM35,KM3# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
CM35,KM3# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95704 |
CM35,KM3#..05S,08S INSTRUMENT PANEL |
1 | ||
| 84730-95J01 |
CM35,KM3#..05S,08S RR TRIM,PUSH SW. |
1 | ||
| 84732-95703 |
CM35,KM3#..05S,08S RR TRIM,ROTARY SW. |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11024 |
CM35,KM3#..05S,08S 12V 1.4W,12V 1.4W,INSTRUMENT PANEL |
1 | ||
| 90981-11024 |
CM35,KM3#..05S,08S 12V 1.4W,12V 1.4W,RR TRIM,PUSH SW. |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32060 |
CM35,KM3# |
1 | ||
| 84790-20130 |
CM35,KM3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95710 |
CM35,KM3# |
1 | ||
| 85500-95712 |
CM35,KM3#..LHD |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-95700 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 7(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80043 |
CM35,KM3# |
1 | ||
| 83320-80065 |
CM35 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM35,KM3# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM35,KM3# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-35010 |
CM35,KM3#..LHD |
1 | ||
| Common parts | ||||
| 90319-14010 | ||||
| 90461-08999 | ||||
| 91611-60818 | ||||
| 93315-14014 | ||||
| 94120-41000 | ||||

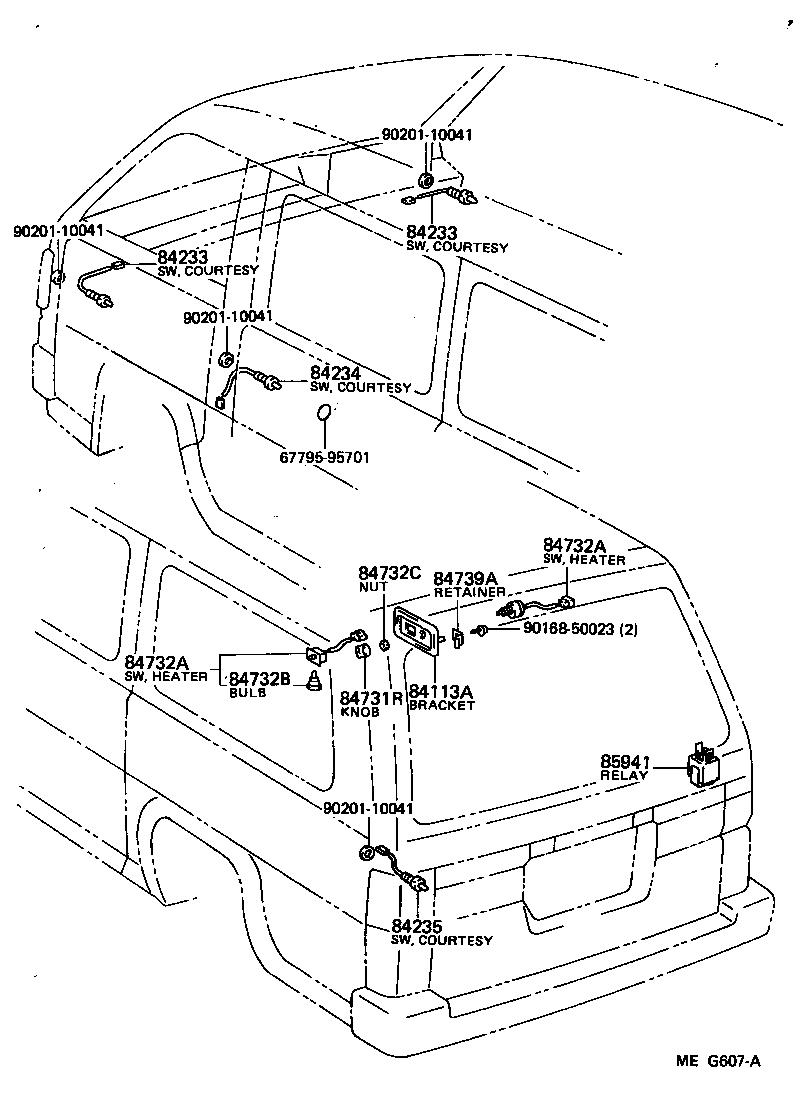

ILLUST NO. 7 OF 7(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-9570306 |
CM35,KM3#..05S,08S BROWN,BROWN,TRIM4# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM35,KM3# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM35,KM3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95702 |
CM35,KM3#..05S,08S |
1 | ||
| 84230-95702 |
CM35,KM3#..05S,08S |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-95703 |
CM35,KM3# |
1 | ||
| 84230-95703 |
CM35,KM3#..05S,08S |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-95700 |
CM35,KM3#..05S,08S |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95704 |
CM35,KM3#..05S,08S INSTRUMENT PANEL |
1 | ||
| 84730-95J01 |
CM35,KM3#..05S,08S RR TRIM,PUSH SW. |
1 | ||
| 84732-95703 |
CM35,KM3#..05S,08S RR TRIM,ROTARY SW. |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95704 |
CM35,KM3#..05S,08S INSTRUMENT PANEL |
1 | ||
| 84730-95J01 |
CM35,KM3#..05S,08S RR TRIM,PUSH SW. |
1 | ||
| 84732-95703 |
CM35,KM3#..05S,08S RR TRIM,ROTARY SW. |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-11024 |
CM35,KM3#..05S,08S 12V 1.4W,12V 1.4W,INSTRUMENT PANEL |
1 | ||
| 90981-11024 |
CM35,KM3#..05S,08S 12V 1.4W,12V 1.4W,RR TRIM,PUSH SW. |
1 | ||
| 84732C - NUT, REAR HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM35,KM3#..05S,08S |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 55944-95701 |
CM35,KM3#..05S,08S |
2 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 85941-95700 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 67795-95701 | ||||
| 90168-50023 | ||||
| 90201-10041 | ||||

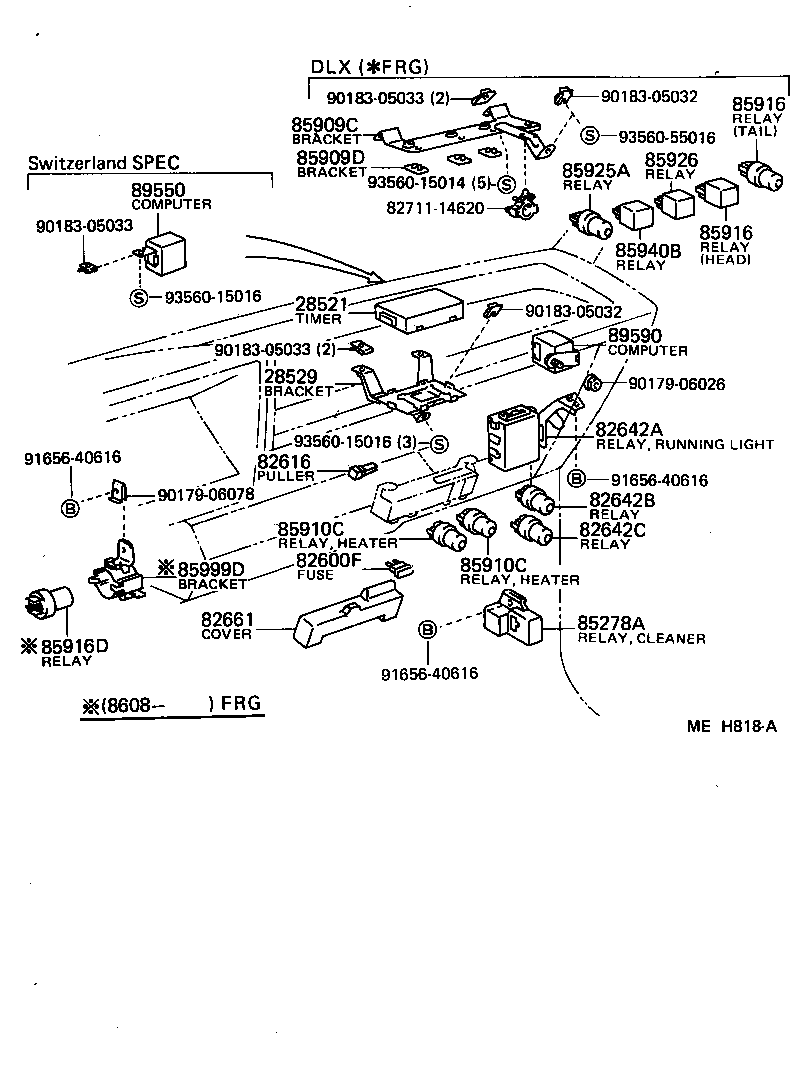

ILLUST NO. 5 OF 7(8510- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64260 |
1C..CM35 |
1 | ||
| 28521-64290 |
1C..CM35 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64060 |
1C..CM35..LHD |
1 | ||
| 28529-64050 |
1C..CM35 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
CM35,KM3# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
CM35,KM3# 15A,15A |
6 | ||
| 90982-09005 |
CM35,KM3# 7.5A,7.5A |
8 | ||
| 90982-09002 |
CM35,KM3# 10A,10A |
16 | ||
| 90982-07011 |
CM35,KM3# 30A,GREEN,30A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM35,KM3# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82611-95706 |
CM35,KM3#..LHD |
1 | ||
| 82611-95711 |
CM35,KM3#..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM35,KM3# FR HEATER |
1 | ||
| 90987-02004 |
CM35,KM3#..05S,08S RR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM35,KM3# FR HEATER |
1 | ||
| 90987-02004 |
CM35,KM3#..05S,08S RR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM35,KM3# TAIL |
1 | ||
| 90987-02006 |
CM35,KM3# HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CM35,KM3# TAIL |
1 | ||
| 90987-02006 |
CM35,KM3# HEAD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
CM35,KM3# |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
CM35,KM3#..LHD |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 90987-04002 |
CM35,KM3# |
1 | ||
| 85913-30020 |
CM35,KM3# |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-27030 |
CM35,KM3#..LHD |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90179-06026 | ||||
| 90179-06078 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||
| 93560-15016 | ||||
| 93560-55016 | ||||
