CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

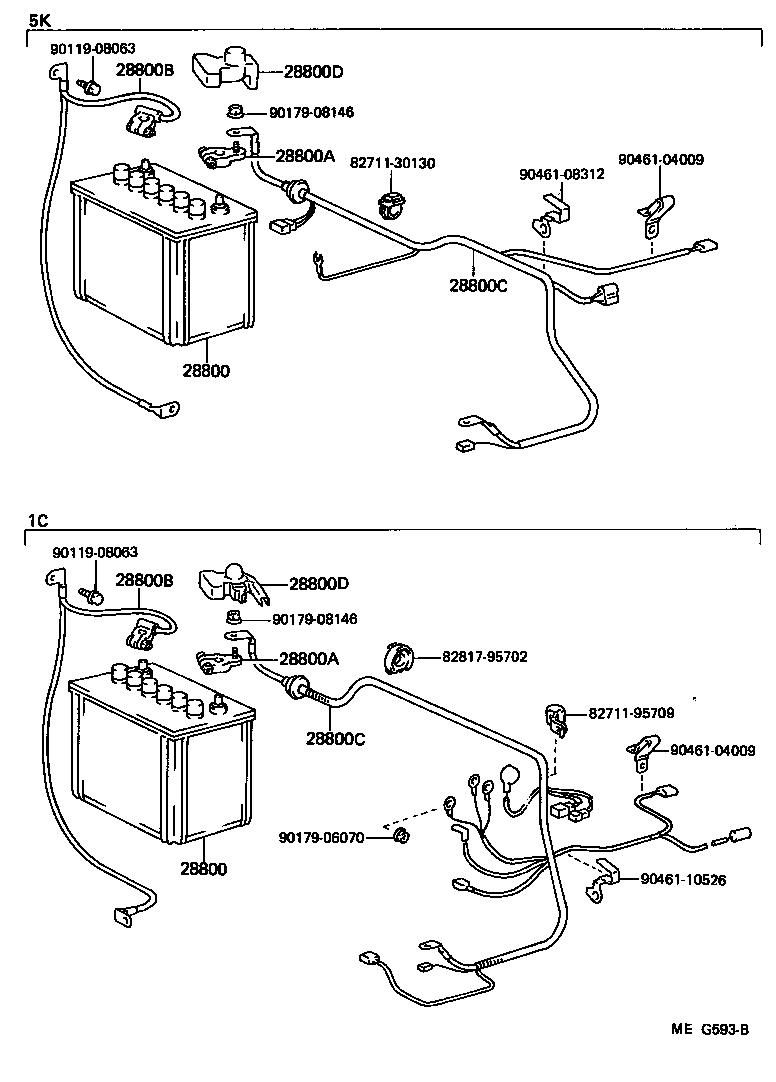

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 8271130130 8271195709 8281795702 9011908063 9011908063 9017906070 9017908146 9017908146 9046104009 9046104009 9046108312 9046110526
Part # Description Qty Price
28800 - BATTERY
28800-67030

1C..CM35

80D26R,80D26R(NX110-5)

 1
28800-54040

1C..CM35

95D31R,95D31R(NX120-7)

 1
28800 - BATTERY
28800-67030

1C..CM35

80D26R,80D26R(NX110-5)

 1
28800-54040

1C..CM35

95D31R,95D31R(NX120-7)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

1C,5K..CM35,KM3#

 1
90982-05005

1C,5K..CM35,KM3#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

1C,5K..CM35,KM3#

 1
90982-05005

1C,5K..CM35,KM3#

 1
28800B - CABLE, BATTERY TO GROUND
82123-95701

1C..CM35

 1
28800B - CABLE, BATTERY TO GROUND
82123-95701

1C..CM35

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95757

1C..CM35

 1
82122-95737

1C..CM35

 1
82122-95701

1C..CM35

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95757

1C..CM35

 1
82122-95737

1C..CM35

 1
82122-95701

1C..CM35

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702

1C..CM35

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702

1C..CM35

 1
Common parts
82711-30130
82711-95709
82817-95702
90119-08063
90179-06070
90179-08146
90461-04009
90461-08312
90461-10526
