CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )CM35,KM31,36

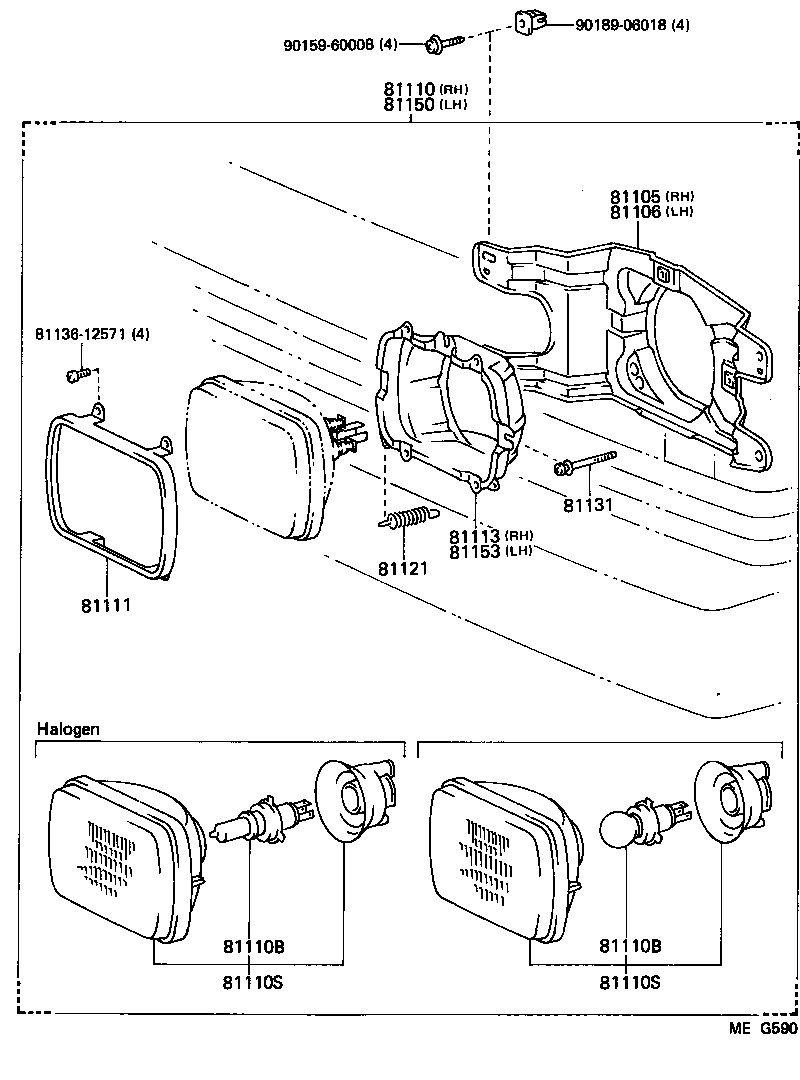

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9015960008 9018906018
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95728

CM35,KM31,36

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95728

CM35,KM31,36

 1
81110 - HEADLAMP ASSY, RH
81110-95733

CM35,KM31,36..LHD

HALOGEN,YELLOW

 1
81110-95732

CM35,KM31,36..LHD

HALOGEN,WHITE

 1
81110-95730

CM35,KM31,36..LHD

 1
81110-95732

CM35,KM31,36..LHD..(4F,4H,5F)

HALOGEN,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CM35,KM3#..4F,4H,5F

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
90981-13016

CM35,KM3#..LHD

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
90981-13015

CM35,KM3#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
90981-13013

CM35,KM3#

12V 45/40W,WHITE,12V 45/40W

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CM35,KM3#..4F,4H,5F

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
90981-13016

CM35,KM3#..LHD

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
90981-13015

CM35,KM3#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
90981-13013

CM35,KM3#

12V 45/40W,WHITE,12V 45/40W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

CM35,KM31,36..LHD..(4F,4H,5F)

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

 2
90981-04009

CM35,KM31,36..LHD

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

 2
90981-04006

CM35,KM31,36..LHD

12V 45/40W,*WSB,12V 45/40W

 2
90981-04008

CM35,KM31,36..LHD

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

CM35,KM31,36..LHD..(4F,4H,5F)

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

 2
90981-04009

CM35,KM31,36..LHD

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

 2
90981-04006

CM35,KM31,36..LHD

12V 45/40W,*WSB,12V 45/40W

 2
90981-04008

CM35,KM31,36..LHD

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

CM35,KM31,36

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CM35,KM31,36

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CM35,KM31,36

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

CM35,KM31,36

 4
81150 - HEADLAMP ASSY, LH
81150-95732

CM35,KM31,36..LHD..(4F,4H,5F)

HALOGEN,WHITE

 1
81150-95733

CM35,KM31,36..LHD

HALOGEN,YELLOW

 1
81150-95730

CM35,KM31,36..LHD

 1
81150-95732

CM35,KM31,36..LHD

HALOGEN,WHITE

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CM35,KM31,36

 1
Common parts
81136-12571
90159-60008
90189-06018
