CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

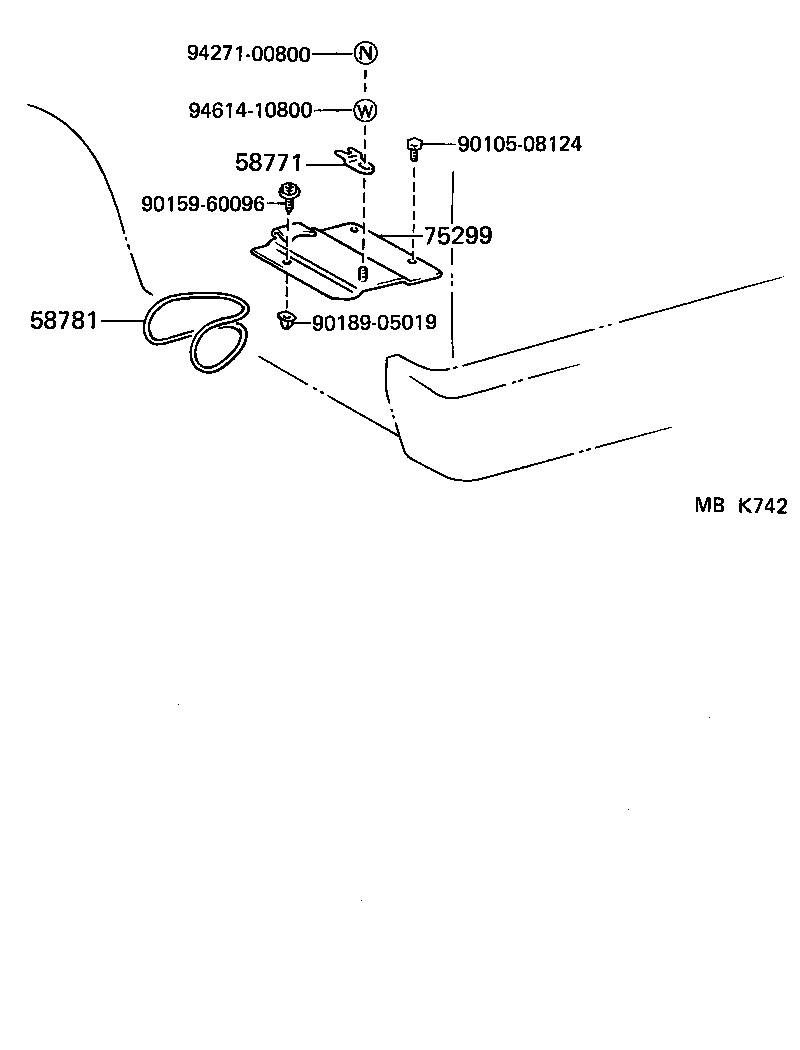

Click highlighted areas on diagram

diagram 58771 58781 75299 9010508124 9015960096 9018905019 9427100800 9461410800
Part # Description Qty Price
58771 - CLAMP, JACK, NO.1
75298-95700

CM35,KM3#

 1
58781 - BAND, TOOL BAG
58795-20011

CM35,KM31,36

 1
75299 - BASE, JACK HOLDER
75299-95700

CM35,KM3#

 1
Common parts
90105-08124
90159-60096
90189-05019
94271-00800
94614-10800
