CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

Click highlighted areas on diagram

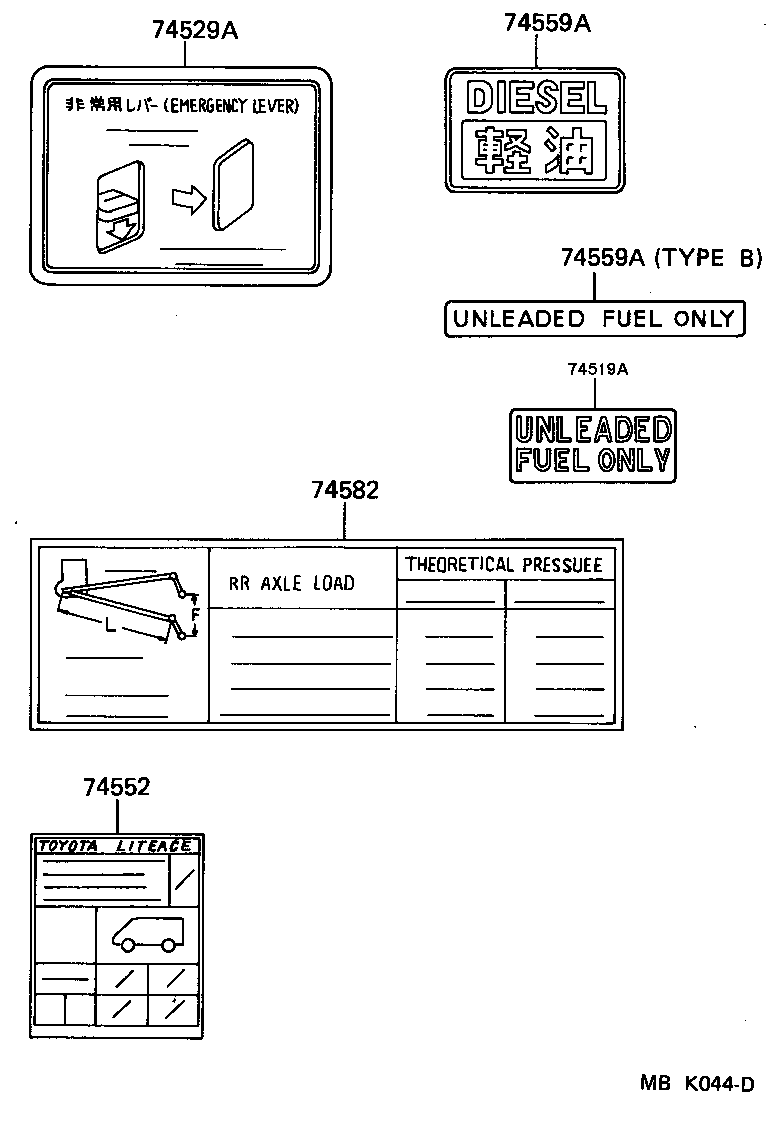

diagram 74519A 74529A 74552 74559A 74559A 74582
Part # Description Qty Price
74529A - PLATE, BACK DOOR CAUTION
74529-95700

CM35,KM3#

 1
74552 - PLATE, SAFETY CAUTION
74552-27410

KM36..(4F,4H)..05S;CM35,KM30,31..05S,08S

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CM35

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CM35

 1
74582 - PLATE, LOAD SENSING VALVE MARKING
47939-27060

CM35,KM36..05S

 1
47939-27050

CM35,KM36..05S

 1
