CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )

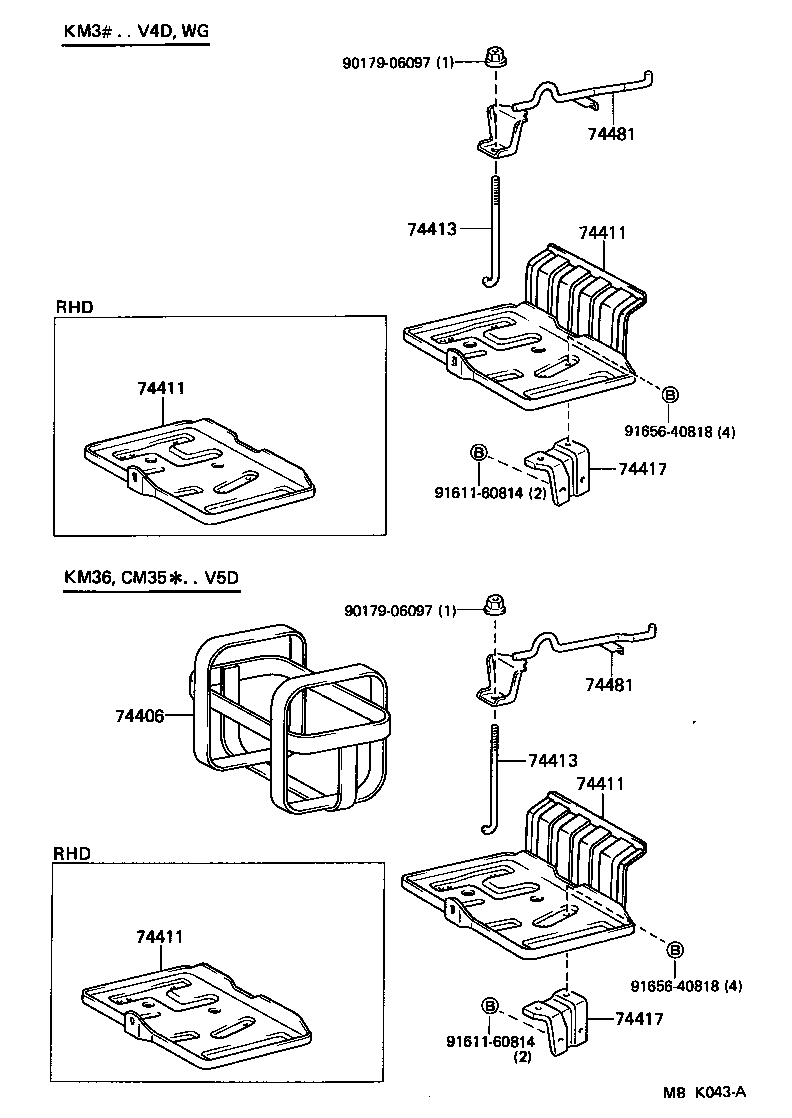

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74406 - BELT SUB-ASSY, BATTERY | ||||
| 74446-95702 |
CM35 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95709 |
CM35,KM3#..LHD |
1 | ||
| 74410-95710 |
CM35..LHD NX120-7 |
1 | ||
| 74410-95713 |
CM35..LHD NX120-7 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95709 |
CM35,KM3#..LHD |
1 | ||
| 74410-95710 |
CM35..LHD NX120-7 |
1 | ||
| 74410-95713 |
CM35..LHD NX120-7 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95709 |
CM35,KM3#..LHD |
1 | ||
| 74410-95710 |
CM35..LHD NX120-7 |
1 | ||
| 74410-95713 |
CM35..LHD NX120-7 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95709 |
CM35,KM3#..LHD |
1 | ||
| 74410-95710 |
CM35..LHD NX120-7 |
1 | ||
| 74410-95713 |
CM35..LHD NX120-7 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95704 |
CM35,KM3# |
1 | ||
| 74451-95J00 |
CM35,KM3# |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95704 |
CM35,KM3# |
1 | ||
| 74451-95J00 |
CM35,KM3# |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-95704 |
CM35,KM3# |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-95704 |
CM35,KM3# |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-95704 |
CM35 |
1 | ||
| 74404-95705 |
CM35 NX120-7 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-95704 |
CM35 |
1 | ||
| 74404-95705 |
CM35 NX120-7 |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91611-60814 | ||||
| 91656-40818 | ||||
