CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

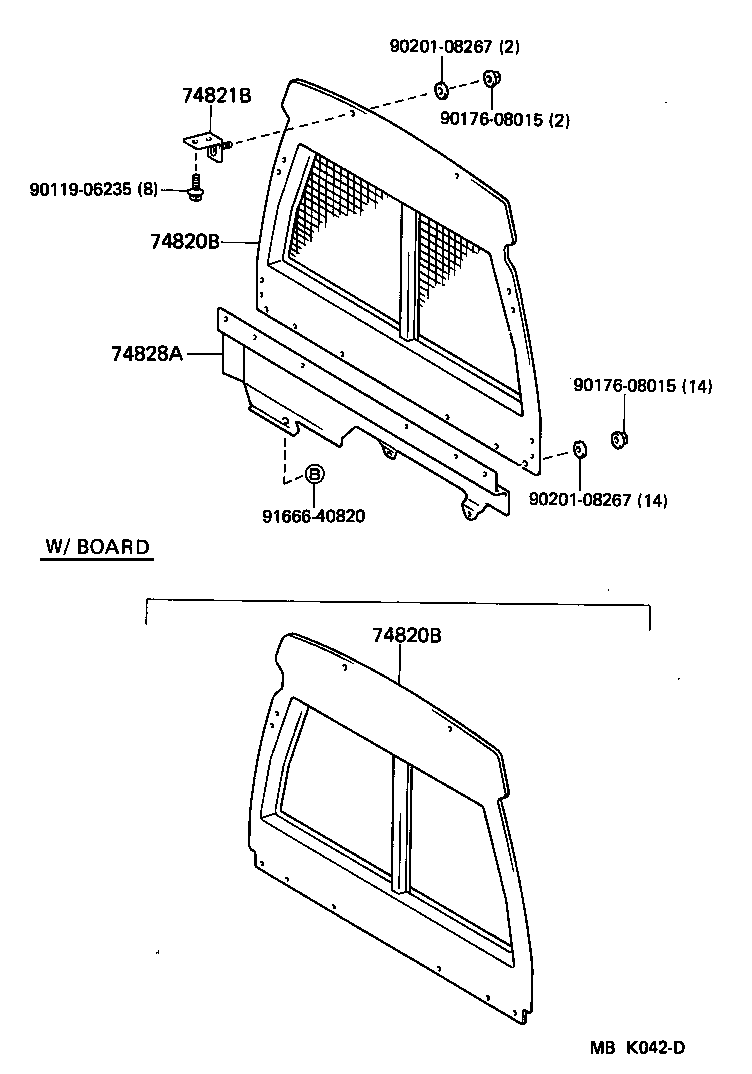

Click highlighted areas on diagram

diagram 74820B 74820B 74821B 74828A 9011906235 9017608015 9017608015 9020108267 9020108267 9166640820
Part # Description Qty Price
74820B - BOARD ASSY, SEPARATOR
74820-9570406

CM35,KM31,36..LHD..MRF

W/NET,BROWN,BROWN,TRIM4#

 1
74820-9570706

CM35,KM36..LHD..MRF

W/NET,BROWN,BROWN,TRIM4#

 1
74820B - BOARD ASSY, SEPARATOR
74820-9570406

CM35,KM31,36..LHD..MRF

W/NET,BROWN,BROWN,TRIM4#

 1
74820-9570706

CM35,KM36..LHD..MRF

W/NET,BROWN,BROWN,TRIM4#

 1
74821B - BRACKET, SEPARATOR BOARD, UPR
74821-95701

CM35,KM31,36..LHD..MRF

 2
74821-95701

CM35,KM36..LHD..MRF

 4
74828A - EXTENSION, SEPARATOR BOARD
74086-95700

CM35,KM31,36..LHD..MRF

 1
Common parts
90119-06235
90176-08015
90201-08267
91666-40820
