CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

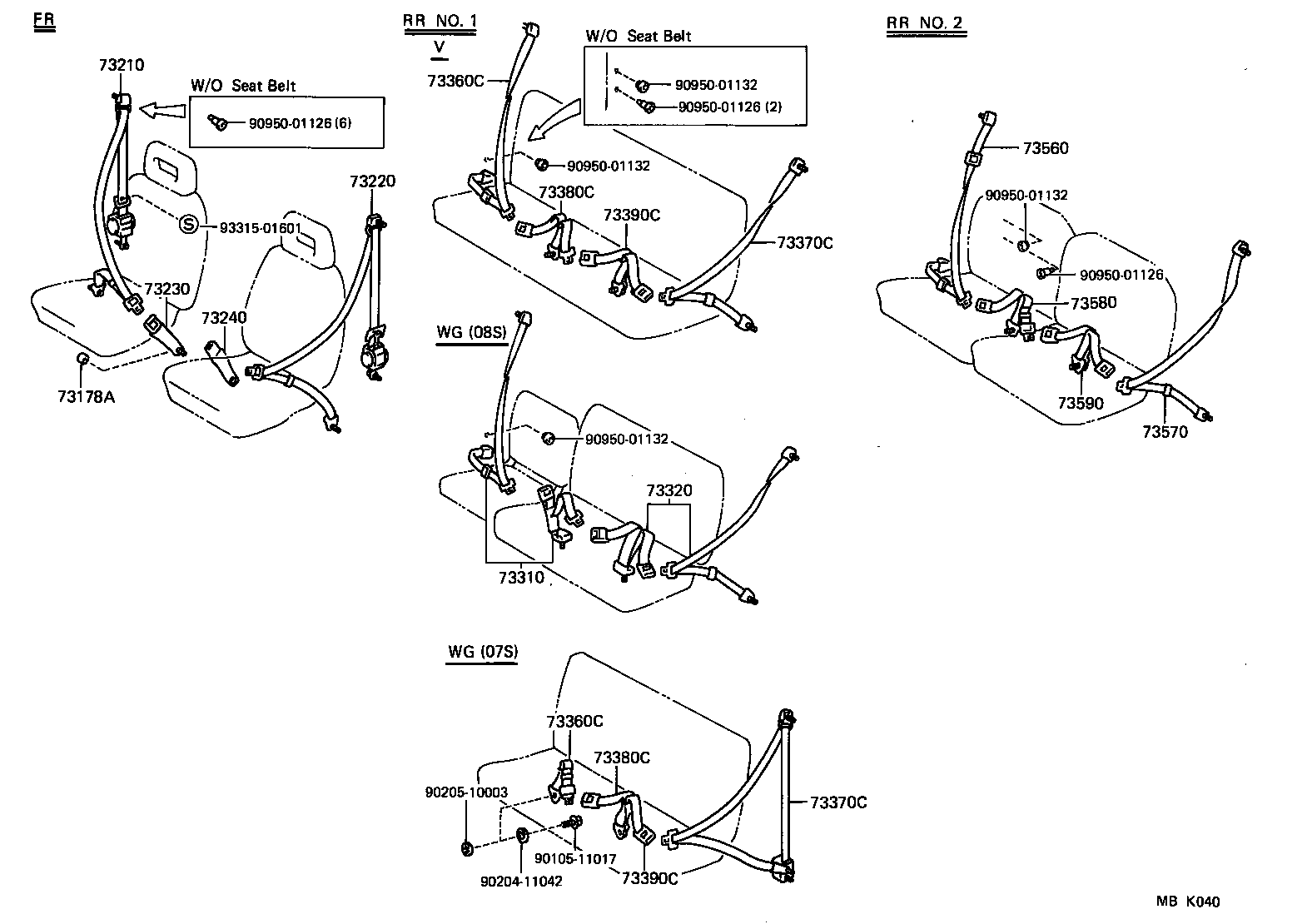

Click highlighted areas on diagram

diagram 73178A 73210 73220 73230 73240 73310 73320 73360C 73360C 73370C 73370C 73380C 73380C 73390C 73390C 73560 73570 73580 73590 9010511017 9020411042 9020510003 9095001126 9095001126 9095001126 9095001132 9095001132 9095001132 9095001132 9331501601
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

CM35,KM3#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9572306

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73210-9572506

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-9572506

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73210-9572306

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9571906

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73230-9571406

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9573606

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
73240-9573006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
Common parts
90105-11017
90204-11042
90205-10003
90950-01126
90950-01132
93315-01601
