CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

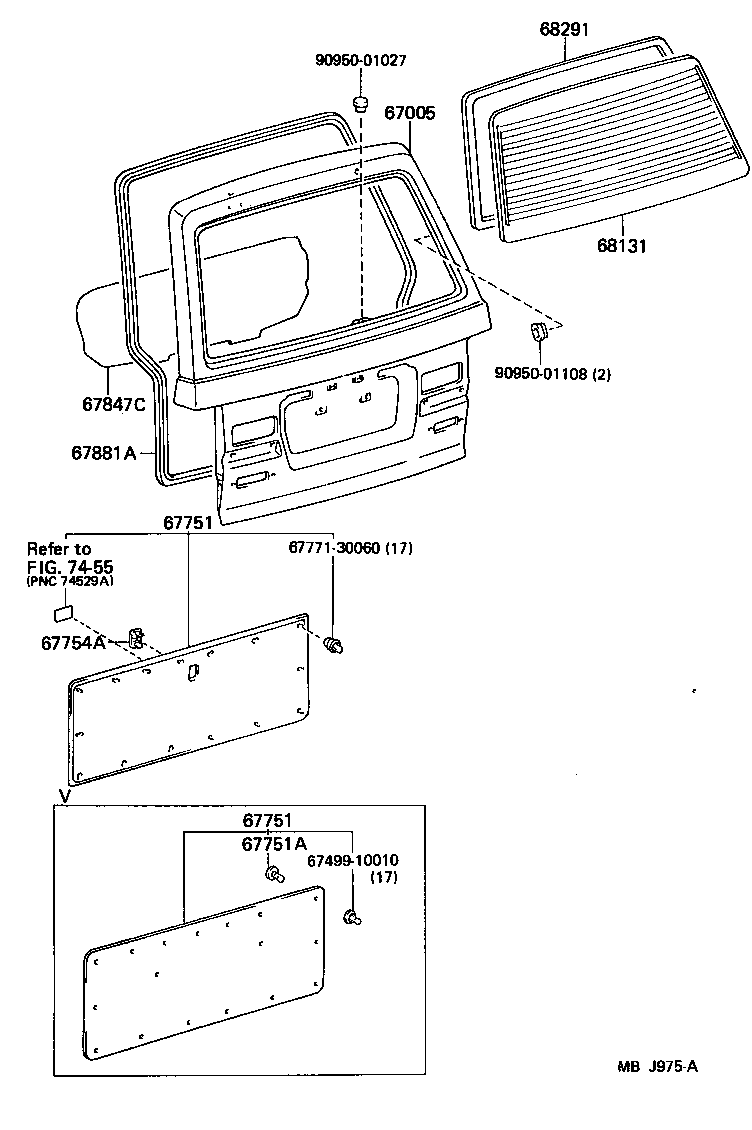

Click highlighted areas on diagram

diagram 67005 6749910010 67751 67751 67751A 67754A 6777130060 67847C 67881A 68131 68291 7455 9095001027 9095001108
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95774

CM35,KM31,36..MRF

W/RR FOG LAMP & RR WIPER

 1
67005-95778

CM35,KM31,36..LHD..MRF

W/RR FOG LAMP

 1
67005-95774

CM35,KM36..LHD..MRF

W/RR WIPER

 1
67005-95G08

CM35,KM31,36..MRF

 1
67005-95G00

CM35,KM31,36..MRF

W/RR WIPER

 1
67005-95778

CM35,KM36..LHD..MRF

 1
67751 - BOARD, BACK DOOR TRIM
67750-9570606

CM35,KM31,36

W/*RW,BROWN,BROWN,TRIM4#

 1
67750-9570106

CM35,KM31,36

W/EMERGENCY LEVER,BROWN,SABLE,TRIM4#

 1
67750-9570506

CM35,KM31,36

W/*RW & EMERGENCY LEVER,BROWN,BROWN,TRIM4#

 1
67750-9570206

CM35,KM31,36

BROWN,SABLE,TRIM4#

 1
67751 - BOARD, BACK DOOR TRIM
67750-9570606

CM35,KM31,36

W/*RW,BROWN,BROWN,TRIM4#

 1
67750-9570106

CM35,KM31,36

W/EMERGENCY LEVER,BROWN,SABLE,TRIM4#

 1
67750-9570506

CM35,KM31,36

W/*RW & EMERGENCY LEVER,BROWN,BROWN,TRIM4#

 1
67750-9570206

CM35,KM31,36

BROWN,SABLE,TRIM4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0703716

CM35,KM31,36

BROWN,BROWN,TRIM4#

 17
90467-0705406

CM35,KM36

BROWN,SABLE,TRIM4#

 17
67754A - COVER, BACK DOOR HOLE
55528-3002006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95701

CM35,KM31,36

 1
67847-95700

CM35,KM3#

W/RR WIPER

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-95703

CM35,KM3#..MRF

 1
68131 - GLASS, BACK DOOR
68131-95716

CM35,KM3#..MRF

*EHT,T=4.0,*EHT,T=4.0

 1
68131-95719

CM35,KM3#..MRF

*TEM,T=4.0,*TEM,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95708

CM35,KM3#..MRF

 1
Common parts
67499-10010
67771-30060
90950-01027
90950-01108
Linked diagrams
7455
