CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )

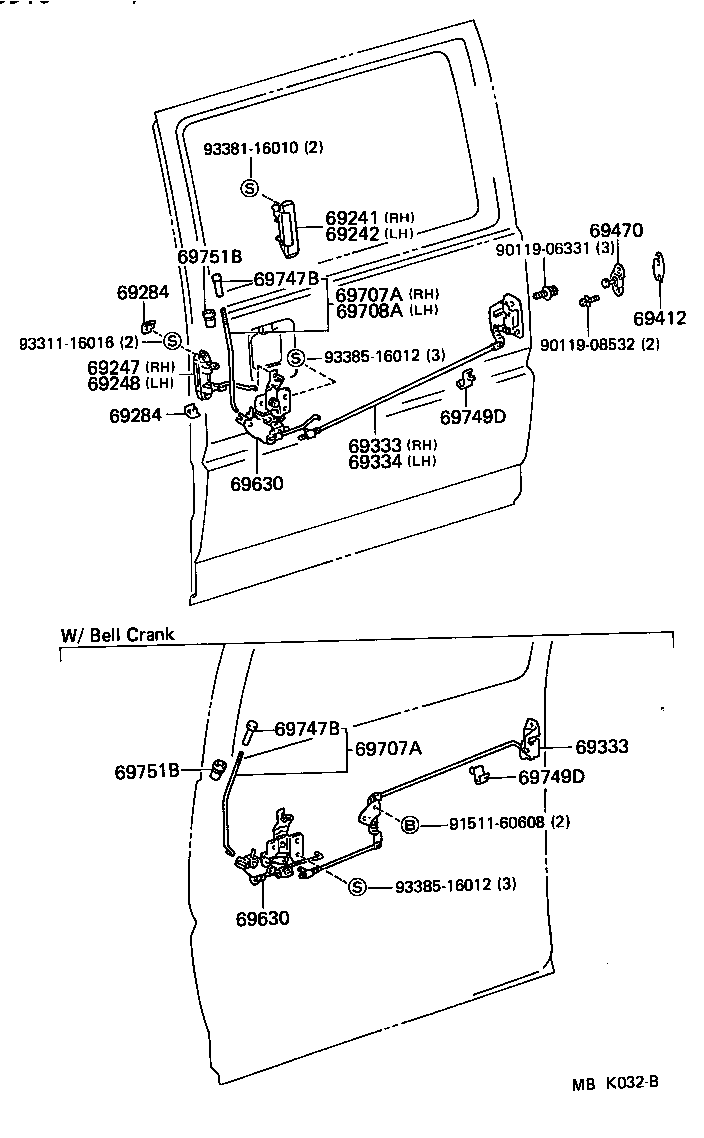

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69241 - HANDLE ASSY, SLIDE DOOR OUTSIDE, RH | ||||
| 69230-87003 |
CM35,KM3#..LHD |
1 | ||
| 69230-95J00 |
CM35,KM3#..LHD |
1 | ||
| 69247 - HANDLE, SLIDE DOOR INSIDE, RH | ||||
| 69070-9570006 |
CM35,KM3#..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 69284 - PLUG, SLIDE DOOR INSIDE HANDLE | ||||
| 69284-8700106 |
CM35,KM3#..MRF BROWN,BROWN,TRIM4# |
2 | ||
| 69284 - PLUG, SLIDE DOOR INSIDE HANDLE | ||||
| 69284-8700106 |
CM35,KM3#..MRF BROWN,BROWN,TRIM4# |
2 | ||
| 69333 - LOCK ASSY, SLIDE DOOR, RH | ||||
| 69330-95703 |
CM35,KM3#..05S,08S |
1 | ||
| 69330-95702 |
CM35,KM31,36..05S W/O RR SEAT |
1 | ||
| 69333 - LOCK ASSY, SLIDE DOOR, RH | ||||
| 69330-95703 |
CM35,KM3#..05S,08S |
1 | ||
| 69330-95702 |
CM35,KM31,36..05S W/O RR SEAT |
1 | ||
| 69412 - SHIM, DOOR LOCK STRIKER | ||||
| 69413-87002 |
CM35,KM3# |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-95701 |
CM35,KM3#..MRF |
1 | ||
| 69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE | ||||
| 69630-95706 |
CM35,KM3# RH |
1 | ||
| 69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE | ||||
| 69630-95706 |
CM35,KM3# RH |
1 | ||
| 69707A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH | ||||
| 69707-9570006 |
CM35,KM3# BROWN,BROWN,TRIM4# |
1 | ||
| 69707A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH | ||||
| 69707-9570006 |
CM35,KM3# BROWN,BROWN,TRIM4# |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-9570306 |
CM35,KM3#..MRF BROWN,BROWN,TRIM4# |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-9570306 |
CM35,KM3#..MRF BROWN,BROWN,TRIM4# |
1 | ||
| 69749D - CLAMP, SLIDE DOOR LOCK LINK | ||||
| 69749-95700 |
CM35,KM3#..MRF |
1 | ||
| 69749-20010 |
CM35,KM3# W/RR SEAT |
1 | ||
| 69749D - CLAMP, SLIDE DOOR LOCK LINK | ||||
| 69749-95700 |
CM35,KM3#..MRF |
1 | ||
| 69749-20010 |
CM35,KM3# W/RR SEAT |
1 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-9570106 |
CM35,KM3#..MRF BROWN,BROWN,TRIM4# |
1 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-9570106 |
CM35,KM3#..MRF BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06331 | ||||
| 90119-08532 | ||||
| 91511-60608 | ||||
| 93311-16016 | ||||
| 93381-16010 | ||||
| 93385-16012 | ||||
