CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )STD

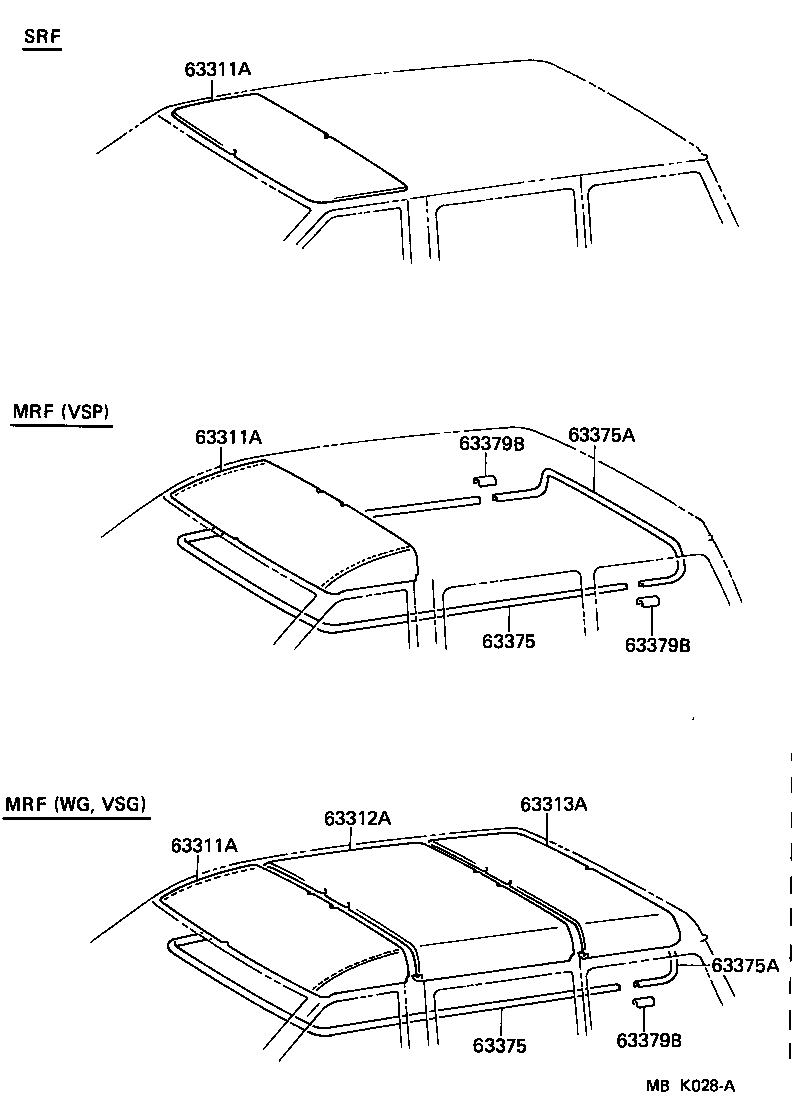

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-9572408 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-9572408 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-9572408 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-9572608 |
CM35,KM3#..STD..(05S,08S) IVORY,IVORY |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-9570508 |
CM35,KM3#..STD..(05S,08S) IVORY,IVORY |
1 | ||
| 63375 - MOULDING, ROOF VINYL | ||||
| 63375-9570208 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63375 - MOULDING, ROOF VINYL | ||||
| 63375-9570208 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63375A - MOULDING, ROOF VINYL, NO.2 | ||||
| 63375-9570408 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63375A - MOULDING, ROOF VINYL, NO.2 | ||||
| 63375-9570408 |
CM35,KM3#..MRF..STD IVORY,IVORY |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-9570408 |
CM35,KM3#..MRF..STD LH,IVORY,IVORY |
1 | ||
| 63379-9570308 |
CM35,KM3#..MRF..STD RH,IVORY,IVORY |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-9570408 |
CM35,KM3#..MRF..STD LH,IVORY,IVORY |
1 | ||
| 63379-9570308 |
CM35,KM3#..MRF..STD RH,IVORY,IVORY |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-9570408 |
CM35,KM3#..MRF..STD LH,IVORY,IVORY |
1 | ||
| 63379-9570308 |
CM35,KM3#..MRF..STD RH,IVORY,IVORY |
1 | ||
