CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )CM35,KM31,36

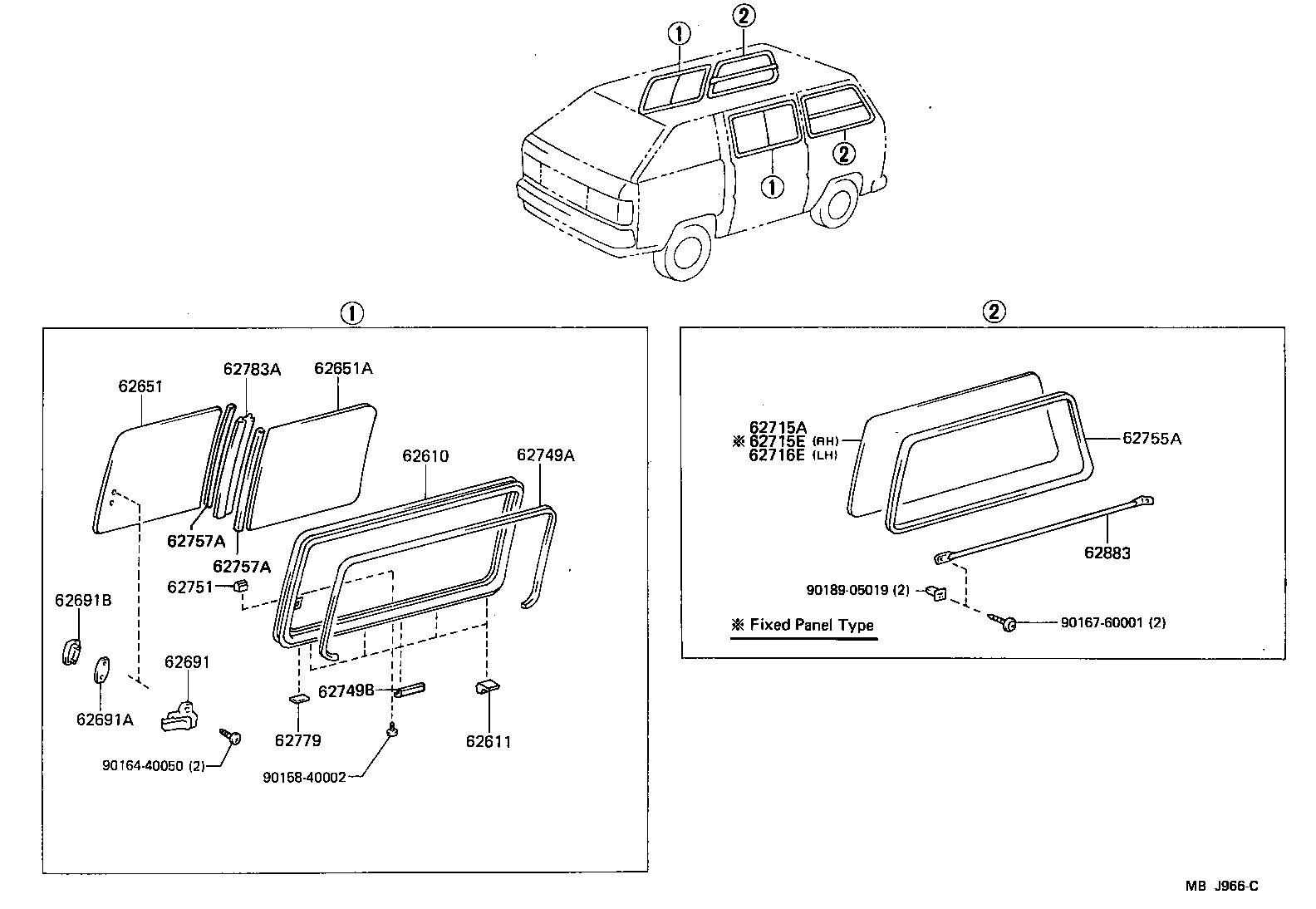

Click highlighted areas on diagram

diagram 62610 62611 62651 62651A 62691 62691A 62691B 62715A 62715E 62716E 62749A 62749B 62751 62755A 62757A 62757A 62779 62783A 62883 9015840002 9016440050 9016760001 9018905019
Part # Description Qty Price
62610 - SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
62708-95700

CM35,KM31,36..05S

LH

 1
67043-95700

CM35,KM31,36..05S

RH

 1
62611 - SPACER, SIDE WINDOW SUPPORT, NO.1
62279-95701

CM35,KM3#..05S,08S

 8
62651 - GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
62712-95711

CM35,KM3#..05S,08S

*TEM,T=4.0,LH,*TEM,T=4.0

 1
62732-95715

CM35,KM3#..05S,08S

*TEM,T=4.0,RH,*TEM,T=4.0

 1
62651A - GLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
62735-95704

CM35,KM31,36..05S

*TEM,T=4.0,RH,*TEM,T=4.0

 1
62714-95706

CM35,KM31,36..05S

*TEM,T=4.0,LH,*TEM,T=4.0

 1
62691 - LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62910-95702

CM35,KM31,36..05S

 2
62691A - PACKING, SIDE WINDOW LOCK, NO.1
62792-95A00

CM35,KM31,36..05S

 2
62691B - RETAINER, SIDE WINDOW LOCK, NO.1
62793-95J00

CM35,KM31,36..05S

 2
62715A - GLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)
62715-95700

CM35,KM3#..05S,08S

*TEM,T=3.5,RH,*TEM,T=3.5

 1
62716-95700

CM35,KM3#..05S,08S

*TEM,T=3.5,LH,*TEM,T=3.5

 1
62715E - PANEL, SIDE REAR WINDOW, RH
62715-95708

CM35..05S

 1
62716E - PANEL, SIDE REAR WINDOW, LH
62716-95708

CM35..05S

 1
62749A - SEAL, SIDE WINDOW, UPPER
62749-95702

CM35,KM3#..05S,08S

RH

 1
62749-95701

CM35,KM3#..05S,08S

LH

 1
62749B - SEAL, SIDE WINDOW FRAME
62749-95704

CM35,KM3#..05S,08S

 2
62751 - STOP, SIDE WINDOW FIX GLASS
62751-95661

CM35,KM31,36..05S

 2
62755A - WEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)
62743-95706

CM35..05S

FIXED PANEL TYPE

 2
62743-95702

CM35,KM3#..05S,08S

 2
62779 - PACKING, SIDE WINDOW GLASS, NO.1
62719-95701

CM35,KM3#..05S,08S

 6
62783A - SASH, SIDE WINDOW, CENTER
62783-95700

CM35,KM3#..05S,08S

 2
62883 - GUARD ASSY, SIDE WINDOW
62898-95703

CM35,KM31,36..05S

LH

 1
62897-95703

CM35,KM31,36..05S

RH

 1
Common parts
90158-40002
90164-40050
90167-60001
90189-05019
