CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )LHD..MRF

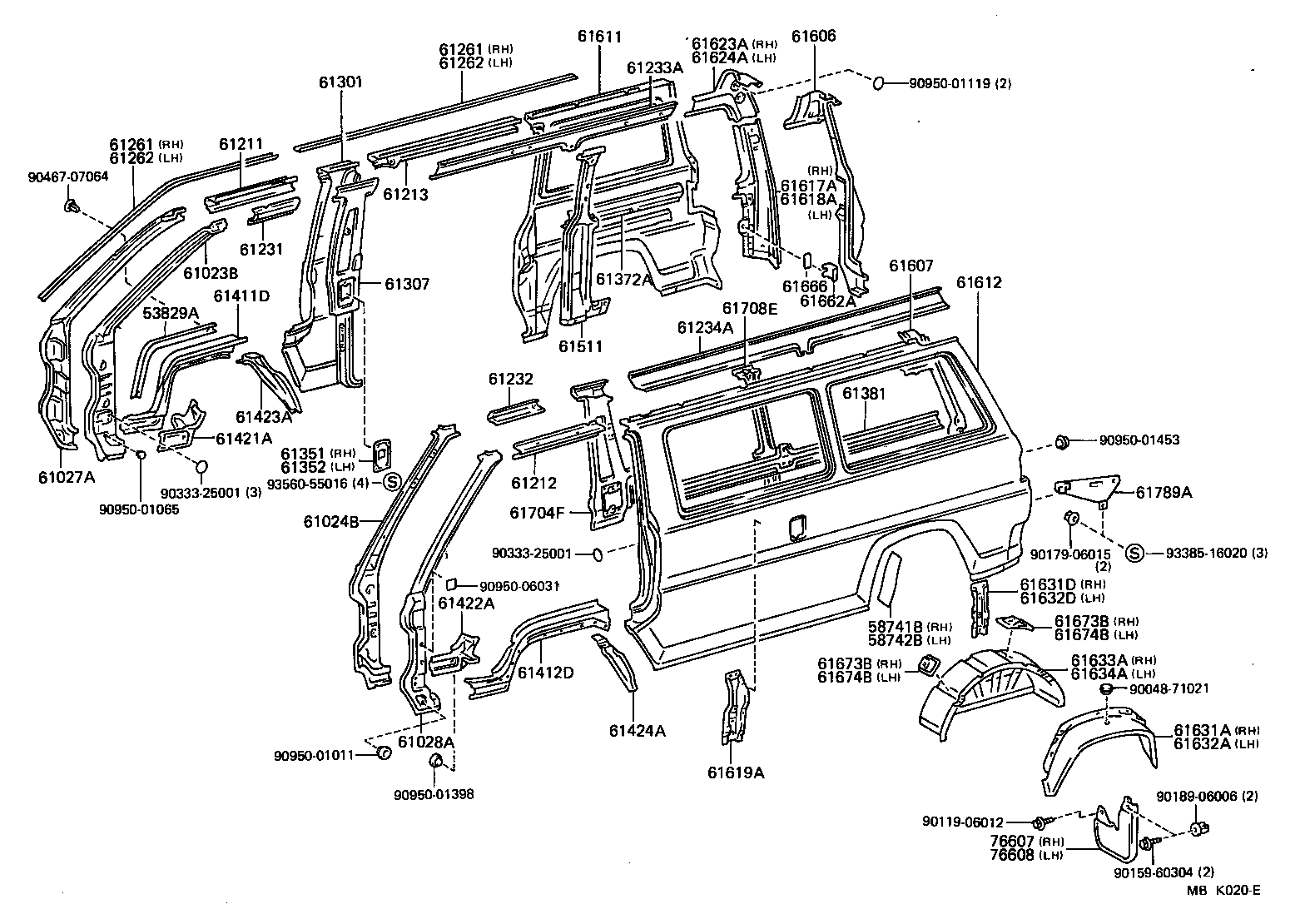

Click highlighted areas on diagram

diagram 53829A 58741B 58742B 61023B 61024B 61027A 61028A 61211 61212 61213 61231 61232 61233A 61234A 61261 61261 61262 61262 61301 61307 61351 61352 61372A 61381 61411D 61412D 61421A 61422A 61423A 61424A 61511 61606 61607 61611 61612 61617A 61618A 61619A 61623A 61624A 61631A 61631D 61632A 61632D 61633A 61634A 61662A 61666 61673B 61673B 61674B 61674B 61704F 61708E 61789A 76607 76608 9004871021 9011906012 9015960304 9017906015 9018906006 9033325001 9033325001 9046707064 9095001011 9095001065 9095001119 9095001398 9095001453 9095006031 9338516020 9356055016
Part # Description Qty Price
53829A - PROTECTOR, FRONT FENDER, LOWER
53829-95700

CM35,KM3#

RH

 1
53839-95700

CM35,KM3#

LH

 1
58741B - PROTECTOR, QUARTER PANEL, RH
58741-95700

CM35,KM3#

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-95701

CM35,KM3#

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95702

CM35,KM3#..LHD

W/FR PILLAR GARNISH

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95706

CM35,KM3#..LHD

W/FR PILLAR GARNISH

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95701

CM35,KM3#..LHD

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95703

CM35,KM3#..LHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95705

CM35,KM3#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95705

CM35,KM3#

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61213-95701

CM35,KM3#..LHD

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95705

CM35,KM3#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95704

CM35,KM3#

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61207-95704

CM35,KM36..05S

 1
61207-95706

CM35,KM36..05S

W/O RR NO.1 SEAT

 1
61207-95706

CM35,KM31,36..05S

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-95712

CM35,KM31,36..05S

 1
61234-95712

CM35,KM36..05S

W/O RR NO.1 SEAT

 1
61208-95710

CM35,KM36..05S

 1
61261 - CHANNEL, ROOF DRIP, RH
61267-95701

CM35,KM3#

RR

 1
61267-95702

CM35,KM3#

RR

 1
61263-95701

CM35,KM3#

FR

 1
61263-95702

CM35,KM3#

FR

 1
61261 - CHANNEL, ROOF DRIP, RH
61267-95701

CM35,KM3#

RR

 1
61267-95702

CM35,KM3#

RR

 1
61263-95701

CM35,KM3#

FR

 1
61263-95702

CM35,KM3#

FR

 1
61262 - CHANNEL, ROOF DRIP, LH
61264-95701

CM35,KM3#

FR

 1
61268-95701

CM35,KM3#

RR

 1
61268-95702

CM35,KM3#

RR

 1
61264-95702

CM35,KM3#

FR

 1
61262 - CHANNEL, ROOF DRIP, LH
61264-95701

CM35,KM3#

FR

 1
61268-95701

CM35,KM3#

RR

 1
61268-95702

CM35,KM3#

RR

 1
61264-95702

CM35,KM3#

FR

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-95707

CM35,KM3#..05S,08S

W/MUD GUARD

 1
61301-95712

CM35,KM3#..05S,08S

 1
61301-95714

CM35,KM36..LHD

W/O RR SEAT

 1
61301-95715

CM35,KM36..LHD

W/O RR SEAT & W/MUD GUARD

 1
61301-95708

CM35,KM31,36..LHD

W/O RR SEAT

 1
61301-95705

CM35,KM3#..05S,08S

 1
61301-95709

CM35,KM31,36..LHD

W/O RR SEAT & W/MUD GUARD

 1
61301-95713

CM35,KM3#..05S,08S

W/MUD GUARD

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-95704

CM35,KM3#..LHD..STD

 1
61307-95709

CM35,KM36..LHD..MRF

W/ROOM SEPARATOR

 1
61307-95710

CM35,KM31,36..LHD..MRF

W/ROOM SEPARATOR

 1
61351 - COVER, CENTER BODY, INNER RH
61347-95711

CM35,KM3#..STD

 1
61352 - COVER, CENTER BODY, INNER, LH
61347-95711

CM35,KM3#..STD

 1
61372A - RAIL, NO.2 CENTER, INNER RH
61372-95700

CM35,KM3#..STD..(05S,08S)

 1
61381 - RAIL, NO.1 CENTER INNER, LH
61381-95700

CM35,KM3#..STD..(05S,08S)

 1
61411D - PANEL, FENDER, OUTER RH
61401-95701

CM35,KM3#

W/SPOILER

 1
61412D - PANEL, FENDER, OUTER LH
61402-95701

CM35,KM3#

W/SPOILER

 1
61421A - PANEL, FENDER, INNER RH
61421-95702

CM35,KM3#

 1
61422A - PANEL, FENDER, INNER LH
61422-95702

CM35,KM3#

 1
61423A - PANEL, FENDER, INNER LOWER RH
61423-95702

CM35,KM3#

 1
61424A - PANEL, FENDER, INNER LOWER LH
61424-95703

CM35,KM3#

 1
61511 - PILLAR, QUARTER LOCK, RH
61501-95703

CM35,KM31,36..05S

 1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61705-95702

CM35,KM3#..MRF

 1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61706-95701

CM35,KM3#..MRF

 1
61611 - PANEL, QUARTER, RH
61601-95G17

CM35,KM3#..05S,08S

W/MUD GUARD

 1
61601-95G11

CM35,KM3#..05S,08S

 1
61612 - PANEL, QUARTER, LH
61602-95766

CM35,KM3#..05S,08S

 1
61602-95770

CM35,KM3#..05S,08S

W/MUD GUARD

 1
61617A - PANEL, QUARTER INNER, REAR RH
61605-95706

CM35,KM31,36..05S

 1
61618A - PANEL, QUARTER, INNER REAR LH
61606-95706

CM35,KM31,36..05S

 1
61619A - REINFORCEMENT, QUARTER PANEL
61619-95704

CM35,KM3#..MRF

 3
61623A - EXTENSION, QUARTER PANEL, OUTER RH
61623-95704

CM35,KM3#..STD..(05S,08S)

 1
61624A - EXTENSION, QUARTER PANEL, OUTER LH
61624-95704

CM35,KM3#..STD..(05S,08S)

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-95705

CM35,KM3#

 1
61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH
61647-95700

CM35,KM3#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61631-95705

CM35,KM3#

 1
61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH
61647-95700

CM35,KM3#

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61633-95701

CM35,KM3#

 1
61633-95702

CM35,KM3#

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61634-95702

CM35,KM3#

 1
61634-95701

CM35,KM3#

 1
61662A - PLATE, QUARTER PANEL OUTER EXTENSION, LOWER REAR
61662-95700

CM35,KM3#..MRF

 1
61666 - SEAL, QUARTER PANEL
61667-95701

CM35,KM3#..MRF

 1
61704F - PANEL SUB-ASSY, QUARTER, INNER FRONT LH
61704-95700

CM35,KM3#..STD..(05S,08S)

 1
61704-95703

CM35,KM31,36..05S

W/SEPARATOR

 1
61704-95707

CM35,KM36..05S

W/SEPARATOR

 1
61708E - EXTENSION, QUARTER INNER PANEL, LH
61032-95701

CM35,KM31,36..05S

 1
61789A - WEIGHT, QUARTER PANEL
61789-95700

CM35,KM31,36

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-95701

CM35,KM3#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-95703

CM35,KM3#

 1
Common parts
90048-71021
90119-06012
90159-60304
90179-06015
90189-06006
90333-25001
90467-07064
90950-01011
90950-01065
90950-01119
90950-01398
90950-01453
90950-06031
93385-16020
93560-55016
