CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

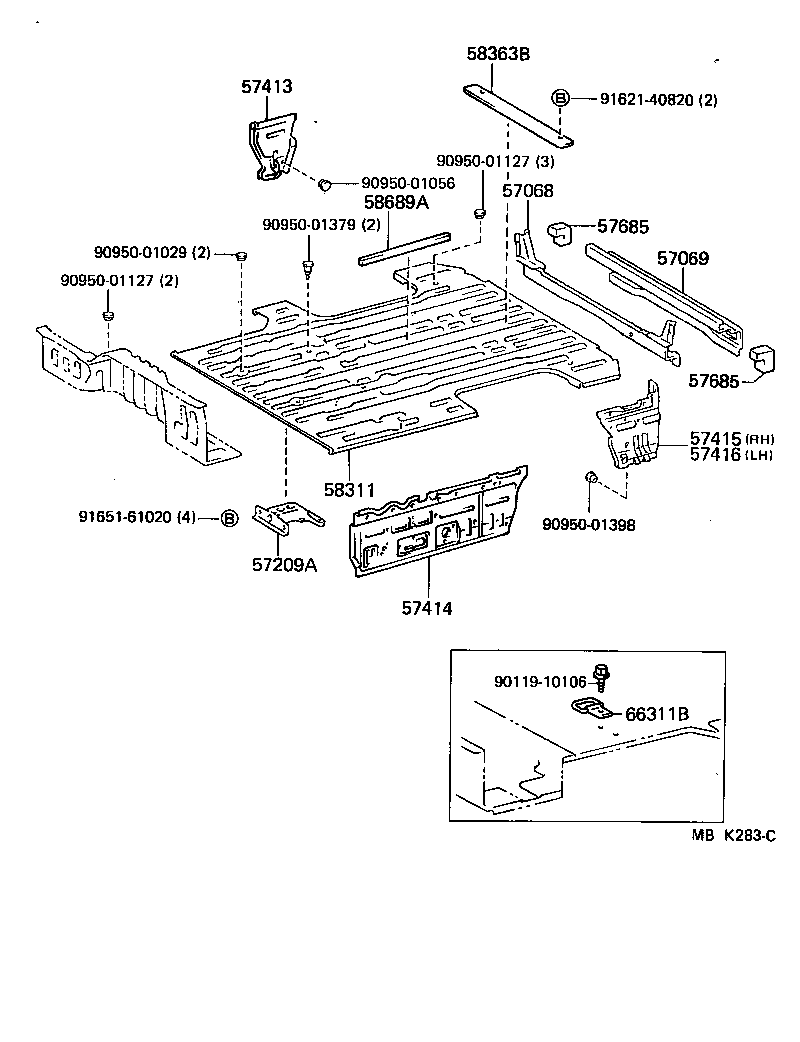

ILLUST NO. 1 OF 2(8510- )LHD..MRF

Click highlighted areas on diagram

diagram 57068 57069 57209A 57413 57414 57415 57416 57685 57685 58311 58363B 58689A 66311B 9011910106 9095001029 9095001056 9095001127 9095001127 9095001379 9095001398 9162140820 9165161020
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-95700

CM35,KM3#

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-95701

CM35,KM31,36

 1
57069-95700

CM35,KM3#

 1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-95705

CM35

 1
57209-95713

CM35

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-95719

CM35,KM31,36..05S

 1
57413-95735

CM35,KM31,36..LHD

W/O RR SEAT

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-95712

CM35,KM3#..STD..(05S,08S)

W/*REH

 1
57406-95713

CM35,KM3#..STD..(05S,08S)

 1
57406-95711

CM35,KM31,36..LHD..MRF

W/O RR SEAT

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-95705

CM35,KM31,36

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-95705

CM35,KM31,36

 1
57685 - DUST PROOF, REAR FLOOR CROSSMEMBER
57685-95700

CM35,KM3#

 2
57685 - DUST PROOF, REAR FLOOR CROSSMEMBER
57685-95700

CM35,KM3#

 2
58311 - PAN, REAR FLOOR
58311-95G04

CM35,KM31,36..05S

W/*REH

 1
58311-95G40

CM35,KM36..05S

W/ROPE HOOK

 1
58311-95G05

CM35,KM31,36..05S

 1
58311-95G20

CM35,KM31,36..LHD..MRF

W/O RR SEAT

 1
58311-95G41

CM35,KM36..05S

W/ROPE HOOK,FOLDING SEAT

 1
58311-95G42

CM35,KM36..05S

W/ROPE HOOK,RR HEATER

 1
58363B - BALANCER, REAR FLOOR, NO.1
58363-95700

CM35,KM31,36

RR

 1
58363-95701

CM35,KM31,36

FR

 1
58689A - WEIGHT, REAR FLOOR
58688-95701

CM35,KM31

L=300

 6
58688-95700

CM35,KM31

L=460

 12
58688-95700

CM35,KM31

L=460

 9
58688-95701

CM35,KM31

L=300

 9
66311B - HOOK, ROPE
66311-95J00

CM35,KM36

 4
Common parts
90119-10106
90950-01029
90950-01056
90950-01127
90950-01379
90950-01398
91621-40820
91651-61020
