CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon

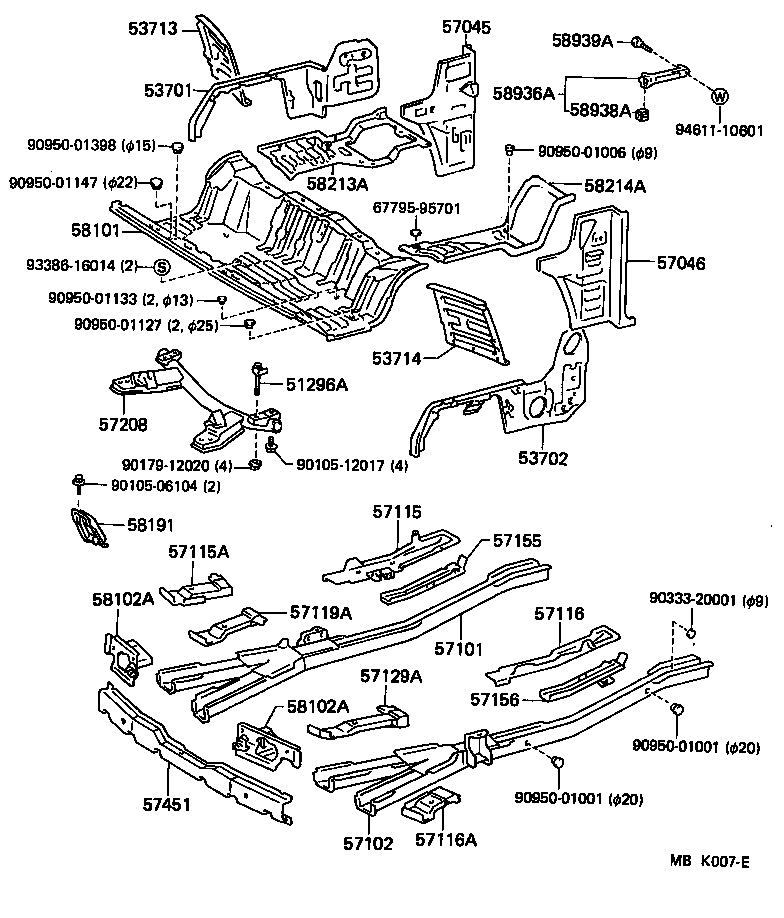

ILLUST NO. 1 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER | ||||
| 51296-95701 |
CM35,KM3# |
4 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95712 |
CM35 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95714 |
CM35 |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53707-95701 |
CM35,KM3# |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53708-95704 |
CM35,KM3# |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-95707 |
CM35,KM3#..LHD |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-95715 |
CM35,KM3#..05S,08S |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-95710 |
CM35,KM3#..05S,08S FR BRAKE=DUAL PISTON TYPE |
1 | ||
| 57115 - PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER RH | ||||
| 57105-95704 |
CM35,KM3# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-95703 |
CM35,KM3# |
1 | ||
| 57116 - PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER LH | ||||
| 57148-95702 |
CM35,KM3# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-95703 |
CM35,KM3# |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-95702 |
CM35,KM3# |
1 | ||
| 57129A - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-95702 |
CM35,KM3# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-95701 |
CM35,KM3# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57044-95703 |
CM35,KM3# |
1 | ||
| 57208 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51021-95708 |
CM35 |
1 | ||
| 51021-95700 |
CM35 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-95705 |
CM35,KM3# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95748 |
CM35,KM3#..LHD..(4F,5F) |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-95700 |
CM35,KM3# RH |
1 | ||
| 58103-95704 |
CM35,KM3# LH |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-95700 |
CM35,KM3# RH |
1 | ||
| 58103-95704 |
CM35,KM3# LH |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-95718 |
CM35,KM3# |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95709 |
CM35,KM3#..LHD |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58402-9571406 |
CM35,KM3# BROWN,BROWN,TRIM4# |
1 | ||
| 58938A - CUSHION, ENGINE SERVICE HOLE COVER BAND | ||||
| 58938-87001 |
CM35,KM3# |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 67795-95701 | ||||
| 90105-06104 | ||||
| 90105-12017 | ||||
| 90179-12020 | ||||
| 90333-20001 | ||||
| 90950-01001 | ||||
| 90950-01006 | ||||
| 90950-01127 | ||||
| 90950-01133 | ||||
| 90950-01147 | ||||
| 90950-01398 | ||||
| 93386-16014 | ||||
| 94611-10601 | ||||

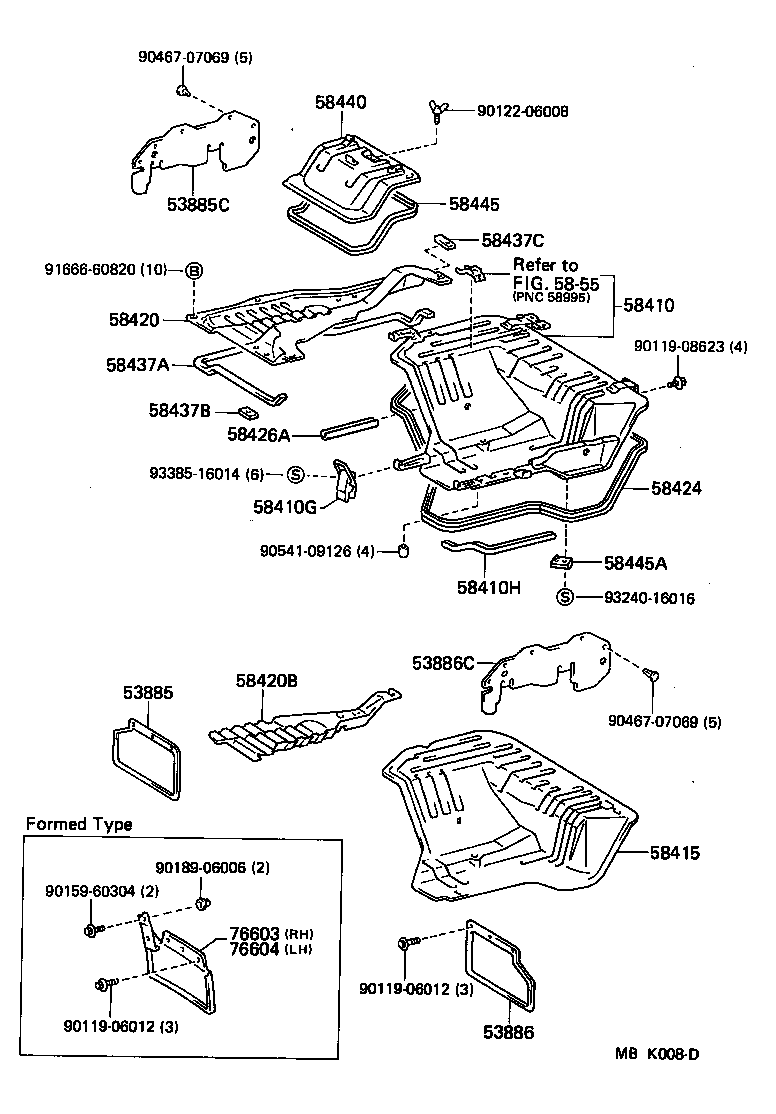

ILLUST NO. 2 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95701 |
CM35,KM3# |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95702 |
CM35,KM3# |
1 | ||
| 53885-95704 |
CM35,KM3# |
1 | ||
| 53885-95702 |
CM35,KM3# |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95701 |
CM35,KM3# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-95702 |
CM35,KM3# |
1 | ||
| 53885-95702 |
CM35,KM3# |
1 | ||
| 53885-95704 |
CM35,KM3# |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95708 |
CM35,KM3#..LHD..(4F,5F) W/CENTER CONSOLE BOX |
1 | ||
| 59208-95705 |
CM35,KM3#..LHD |
1 | ||
| 58410G - CATCH, ENGINE SERVICE HOLE COVER | ||||
| 71902-95704 |
CM35,KM3#..LHD CTR |
1 | ||
| 71902-95705 |
CM35,KM3# LH |
1 | ||
| 71902-95703 |
CM35,KM3#..LHD RH |
1 | ||
| 58410H - PROTECTOR, ENGINE SERVICE HOLE COVER | ||||
| 59277-95701 |
CM35,KM3#..LHD |
1 | ||
| 58415 - SILENCER, ENGINE COVER, FRONT NO.1 | ||||
| 58471-95710 |
CM35,KM3#..LHD |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58407-95706 |
CM35,KM3#..LHD..(4F,5F) |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58472-95706 |
CM35,KM3# |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-95703 |
CM35,KM3#..LHD |
1 | ||
| 58426A - PROTECTOR, ENGINE SERVICE HOLE | ||||
| 58426-95700 |
CM35,KM3# |
1 | ||
| 58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58444-95701 |
CM35,KM3# L=1825 |
1 | ||
| 58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 | ||||
| 58474-95706 |
CM35,KM3# |
1 | ||
| 58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 | ||||
| 58475-95705 |
CM35,KM3# |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58441-95713 |
CM35,KM3# |
1 | ||
| 58441-95714 |
CM35 COLD SPEC |
1 | ||
| 58445 - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95701 |
CM35,KM3# |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
CM35,KM3# |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-95701 |
CM35,KM3# FORMED TYPE |
1 | ||
| 76603-95704 |
CM35,KM3# FORMED TYPE |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-95704 |
CM35,KM3# FORMED TYPE |
1 | ||
| 76604-95701 |
CM35,KM3# FORMED TYPE |
1 | ||
| Common parts | ||||
| 90119-06012 | ||||
| 90119-08623 | ||||
| 90122-06008 | ||||
| 90159-60304 | ||||
| 90189-06006 | ||||
| 90467-07069 | ||||
| 90541-09126 | ||||
| 91666-60820 | ||||
| 93240-16016 | ||||
| 93385-16014 | ||||
| Linked diagrams | ||||
| 5855 | ||||
