CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

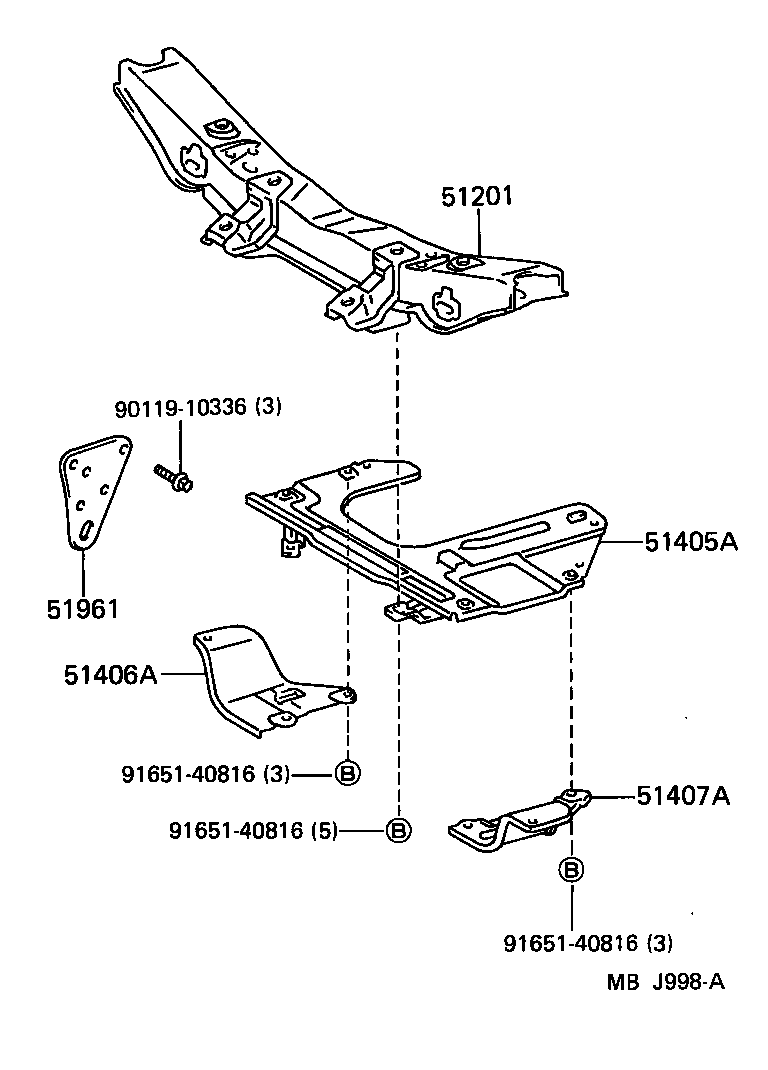

Click highlighted areas on diagram

diagram 51201 51405A 51406A 51407A 51961 9011910336 9165140816 9165140816 9165140816
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-95704

CM35,KM3#..LHD

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-95700

CM35..LHD

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51442-95700

CM35,KM3#

 1
51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3
51443-95700

CM35,KM3#

 1
51961 - HOOK, NO.1
51961-95700

CM35,KM3#..LHD

 1
Common parts
90119-10336
91651-40816
