CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8510- )CM35..05S ; (8510- )4F,4H..05S

Click highlighted areas on diagram

diagram 48210 48210C 48210J 48211 48212 48213 48220 48247 48252 48253 48256 48284 9411050800 9451100800
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27310

CM35..05S

3-LEAF,CANARY ISLANDS SPEC

 1
48210-27360

CM35..05S;KM36..(4F,4H)..05S

5-LEAF

 1
48210-27450

CM35..05S;KM36..(4F,4H)..05S

3-LEAF,COLD SPEC

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-08041

CM35,KM36

OD=58

 2
90389-14004

CM35,KM36

OD=40

 4
48210J - BUSH, NO.2(FOR REAR SPRING LEAF)
90389-08041

CM35,KM36

 2
48211 - LEAF, REAR SPRING, NO.1
48201-27360

CM35..05S;KM36..(4F,4H)..05S

 2
48201-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48212 - LEAF, REAR SPRING, NO.2
48202-27360

CM35..05S;KM36..(4F,4H)..05S

 2
48202-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48202-27450

CM35..05S;KM36..(4F,4H)..05S

COLD SPEC

 1
48213 - LEAF, REAR SPRING, NO.3
48203-27360

CM35..05S;KM36..(4F,4H)..05S

 2
48205-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48220 - SPRING ASSY, REAR LH
48210-27450

CM35..05S;KM36..(4F,4H)..05S

3-LEAF,COLD SPEC

 1
48210-27360

CM35..05S;KM36..(4F,4H)..05S

5-LEAF

 1
48210-27310

CM35..05S

3-LEAF,CANARY ISLANDS SPEC

 1
48247 - BOLT, REAR SPRING, CENTER
48247-27270

CM35..05S;KM36..(4F,4H)..05S

 2
48247-27170

CM35..05S;KM36..(4F,4H)..05S

COLD SPEC

 1
48247-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM35,KM36

 4
48253 - SPACER, REAR SPRING, NO.1
48253-27440

CM35..05S;KM36..(4F,4H)..05S

COLD SPEC

 1
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35360

CM35,KM36

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

CM35,KM36

 2
Common parts
94110-50800
94511-00800

ILLUST NO. 1 OF 2(8510- )CM35,KM36

Click highlighted areas on diagram

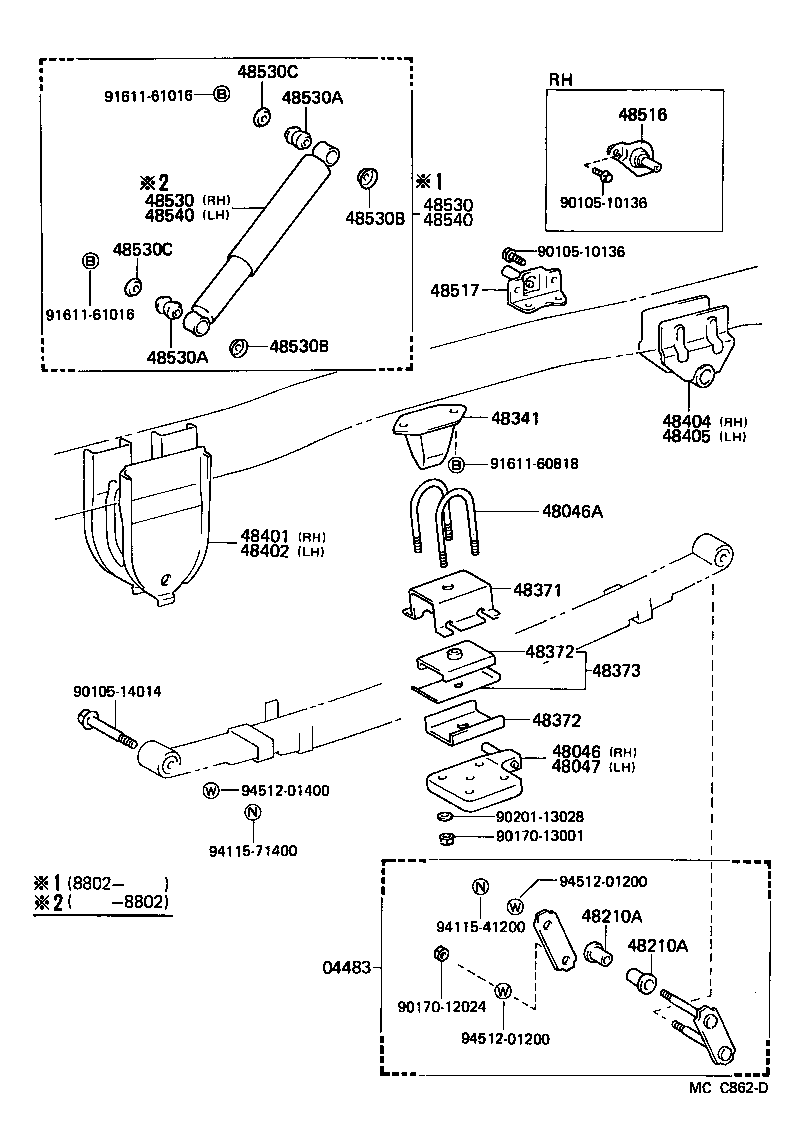

diagram 04483 48046 48046A 48047 48210A 48210A 48341 48371 48372 48372 48373 48401 48402 48404 48405 48516 48517 48530 48530 48530A 48530A 48530B 48530B 48530C 48530C 48540 48540 9010510136 9010510136 9010514014 9017012024 9017013001 9020113028 9161160818 9161161016 9161161016 9411541200 9411571400 9451201200 9451201200 9451201400
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-27070

CM35,KM36

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-13013

CM35..05S;KM36..(4F,4H)..05S

L=146.5

 4
90117-13017

CM35..05S

L=164,CANARY ISLANDS SPEC

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-27070

CM35,KM36

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15001

CM35,KM36

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15001

CM35,KM36

 4
48341 - BUMPER, REAR SPRING
48341-27050

CM35,KM36

 2
48371 - RETAINER, REAR SPRING PAD
48371-27060

CM35..05S;KM36..(4F,4H)..05S

COLD SPEC

 2
48371-27120

CM35..05S;KM36..(4F,4H)..05S

 2
48371-27110

CM35..05S

CANARY ISLANDS SPEC

 2
48372 - PAD, REAR SPRING
48372-26030

CM35..05S

CANARY ISLANDS SPEC

 4
48372-26040

CM35..05S;KM36..(4F,4H)..05S

 4
48372 - PAD, REAR SPRING
48372-26030

CM35..05S

CANARY ISLANDS SPEC

 4
48372-26040

CM35..05S;KM36..(4F,4H)..05S

 4
48373 - SPACER, REAR SPRING
48037-26030

CM35..05S

CANARY ISLANDS SPEC

 2
48037-26050

CM35..05S;KM36..(4F,4H)..05S

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
57701-95706

CM35,KM36

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
57702-95704

CM35,KM36

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
57703-95704

CM35,KM36

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
57704-95701

CM35,KM36

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-27011

CM35,KM36

 1
48516-27010

CM35,KM36

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517-27010

CM35,KM36

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-27110

CM35,KM36

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-27110

CM35,KM36

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

CM35,KM3#

 4
90385-16004

CM35,KM3#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

CM35,KM3#

 4
90385-16004

CM35,KM3#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

CM35,KM3#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

CM35,KM3#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03007

CM35,KM3#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03007

CM35,KM3#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-27110

CM35,KM36

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-27110

CM35,KM36

 1
Common parts
90105-10136
90105-14014
90170-12024
90170-13001
90201-13028
91611-60818
91611-61016
94115-41200
94115-71400
94512-01200
94512-01400

(8510- )

Click highlighted areas on diagram

NORWAY SPEC,CANARY ISLAND SPEC.

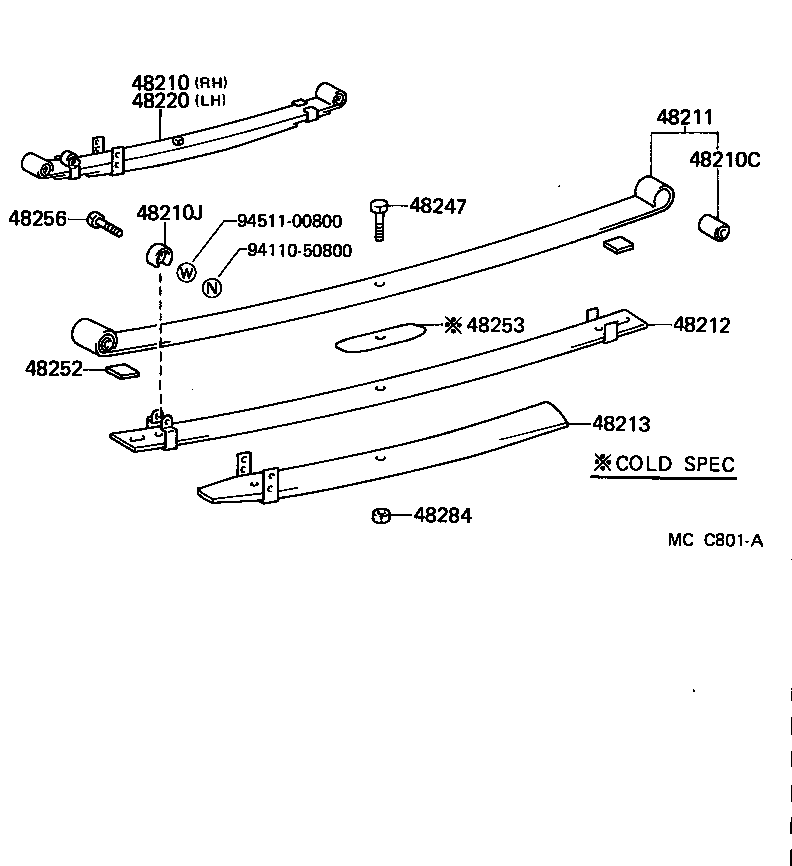

diagram 48210 48210C 48210J 48211 48212 48213 48214 48215 48220 48247 48252 48252 48256 48284 9411050800 9451100800
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27310

CM35..05S

3-LEAF,CANARY ISLANDS SPEC

 1
48210-27360

CM35..05S;KM36..(4F,4H)..05S

5-LEAF

 1
48210-27450

CM35..05S;KM36..(4F,4H)..05S

3-LEAF,COLD SPEC

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-08041

CM35,KM36

OD=58

 2
90389-14004

CM35,KM36

OD=40

 4
48210J - BUSH, NO.2(FOR REAR SPRING LEAF)
90389-08041

CM35,KM36

 2
48211 - LEAF, REAR SPRING, NO.1
48201-27360

CM35..05S;KM36..(4F,4H)..05S

 2
48201-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48212 - LEAF, REAR SPRING, NO.2
48202-27360

CM35..05S;KM36..(4F,4H)..05S

 2
48202-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48202-27450

CM35..05S;KM36..(4F,4H)..05S

COLD SPEC

 1
48213 - LEAF, REAR SPRING, NO.3
48203-27360

CM35..05S;KM36..(4F,4H)..05S

 2
48205-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48214 - LEAF, REAR SPRING, NO.4
48204-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48215 - LEAF, REAR SPRING, NO.5
48215-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48220 - SPRING ASSY, REAR LH
48210-27450

CM35..05S;KM36..(4F,4H)..05S

3-LEAF,COLD SPEC

 1
48210-27360

CM35..05S;KM36..(4F,4H)..05S

5-LEAF

 1
48210-27310

CM35..05S

3-LEAF,CANARY ISLANDS SPEC

 1
48247 - BOLT, REAR SPRING, CENTER
48247-27270

CM35..05S;KM36..(4F,4H)..05S

 2
48247-27170

CM35..05S;KM36..(4F,4H)..05S

COLD SPEC

 1
48247-27310

CM35..05S

CANARY ISLANDS SPEC

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM35,KM36

 4
48252 - SILENCER, REAR SPRING
48252-26070

CM35,KM36

 4
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35360

CM35,KM36

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010

CM35,KM36

 2
Common parts
94110-50800
94511-00800
