CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon

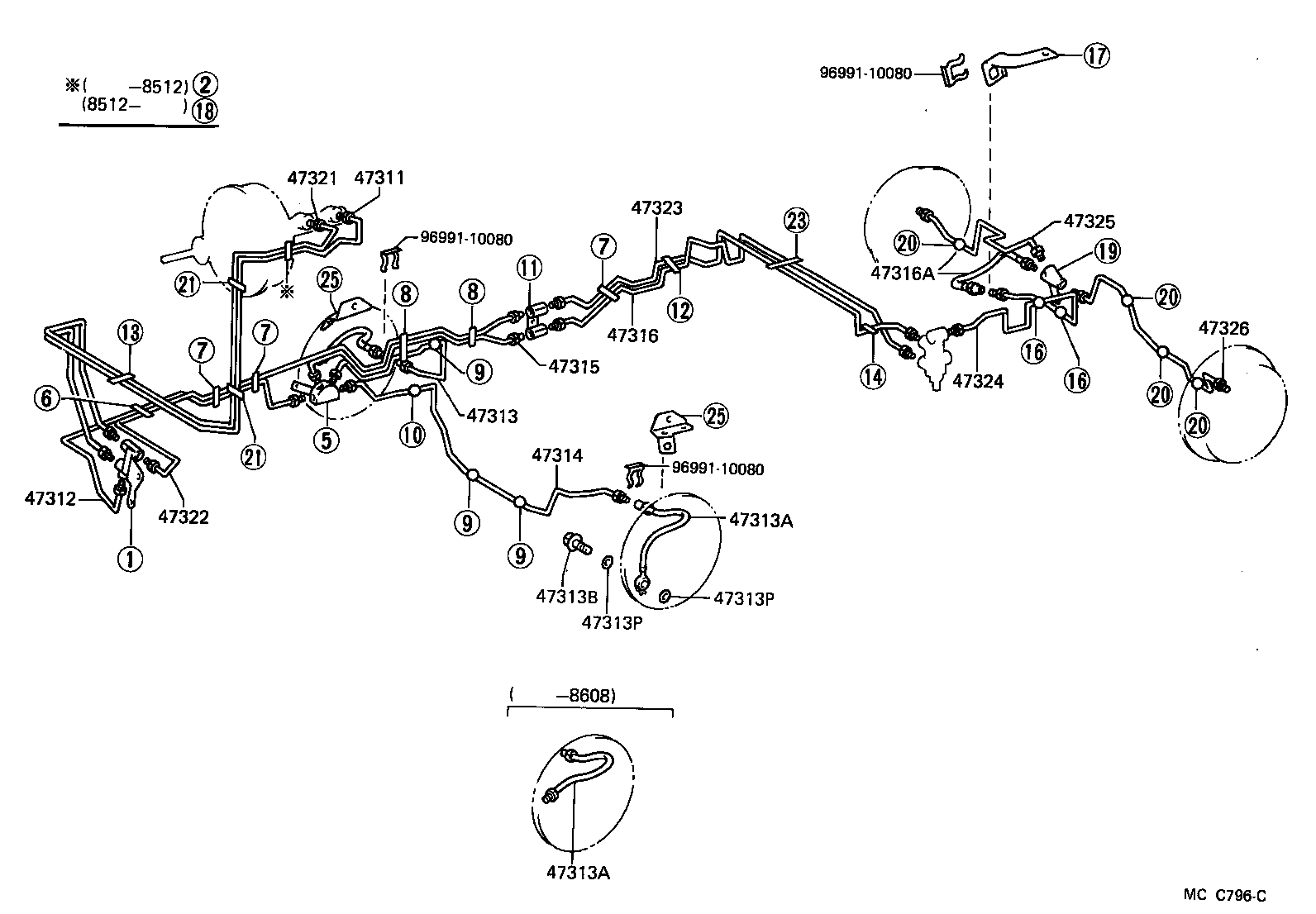

ILLUST NO. 1 OF 3(8510- )LHD
SINGLE BOOSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27220 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47311-27210 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47311-27211 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47311-27221 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-27100 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47312-27130 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-27061 |
CM35..05S FR DISC BRAKE |
1 | ||
| 47313-27060 |
CM35,KM36..05S |
1 | ||
| 47313-27060 |
CM35,KM3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02485 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) RH,TANDEM BOOSTER |
1 | ||
| 90947-02487 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) LH,TANDEM BOOSTER |
1 | ||
| 90947-02505 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
2 | ||
| 96940-32805 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02485 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) RH,TANDEM BOOSTER |
1 | ||
| 90947-02487 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) LH,TANDEM BOOSTER |
1 | ||
| 90947-02505 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
2 | ||
| 96940-32805 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM35;KM36..02S;KM36..4F..05S |
2 | ||
| 90401-10015 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM35;KM36..02S;KM36..4F..05S |
4 | ||
| 90430-10074 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM35;KM36..02S;KM36..4F..05S |
4 | ||
| 90430-10074 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
8 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-27080 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47314-27051 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47314-27050 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-27020 |
CM35;KM36..02S;KM36..4F..05S |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-27060 |
CM35;KM36..02S;KM36..4F..05S |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33555 |
CM35,KM3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27141 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47321-27150 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47321-27151 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47321-27140 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-27180 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47322-27140 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-27240 |
KM36..4F..05S;CM35,KM36..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47323-27210 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-27090 |
CM35,KM3# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-27070 |
CM35,KM36 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-27060 |
CM35,KM36 |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||

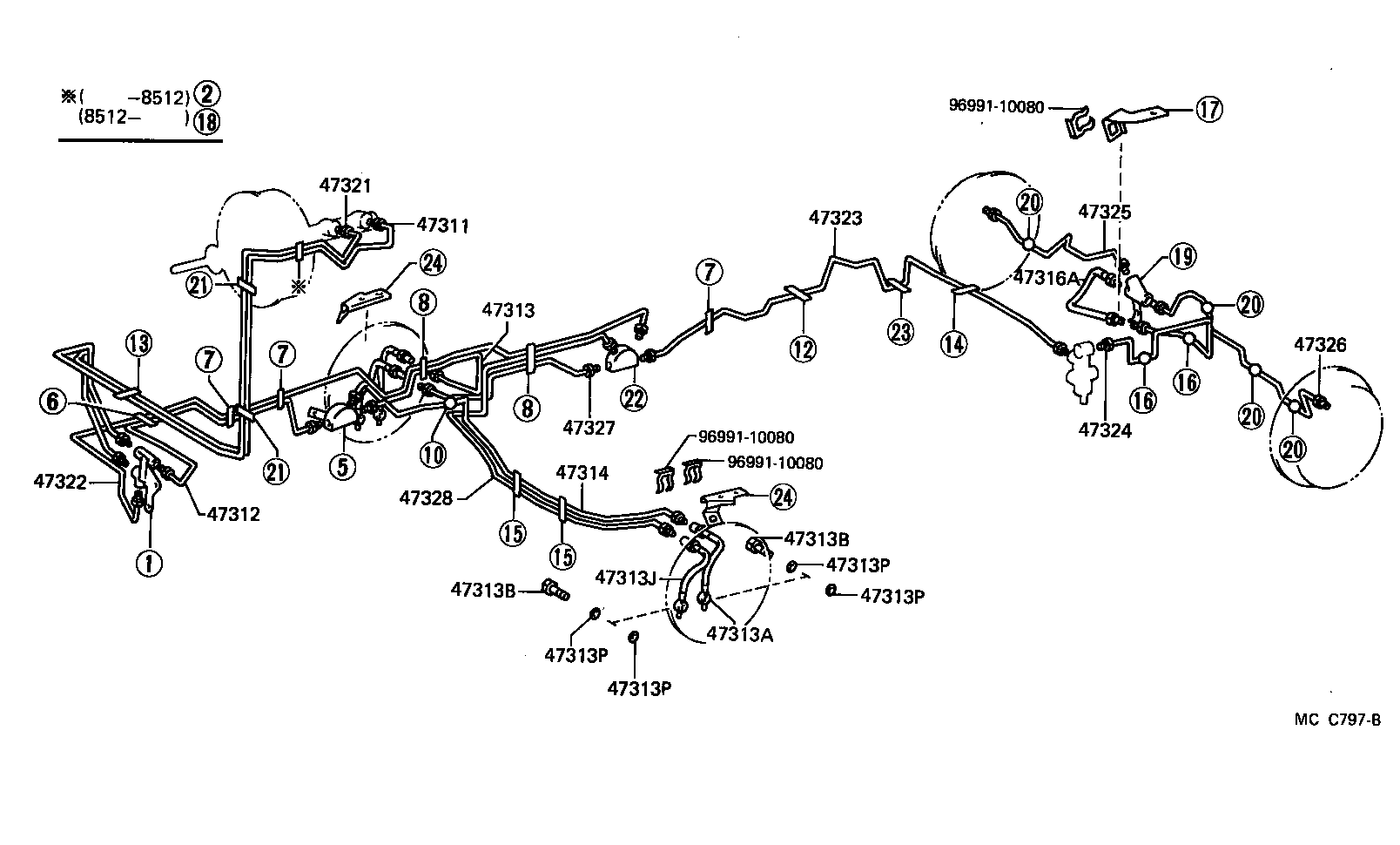

ILLUST NO. 1 OF 3(8510- )LHD
TANDEM BOOSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27220 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47311-27210 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47311-27211 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47311-27221 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-27100 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47312-27130 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-27061 |
CM35..05S FR DISC BRAKE |
1 | ||
| 47313-27060 |
CM35,KM36..05S |
1 | ||
| 47313-27060 |
CM35,KM3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02485 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) RH,TANDEM BOOSTER |
1 | ||
| 90947-02487 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) LH,TANDEM BOOSTER |
1 | ||
| 90947-02505 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
2 | ||
| 96940-32805 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM35;KM36..02S;KM36..4F..05S |
2 | ||
| 90401-10015 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
4 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM35;KM36..02S;KM36..4F..05S |
2 | ||
| 90401-10015 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02486 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) LH |
1 | ||
| 90947-02484 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) RH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM35;KM36..02S;KM36..4F..05S |
4 | ||
| 90430-10074 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM35;KM36..02S;KM36..4F..05S |
4 | ||
| 90430-10074 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM35;KM36..02S;KM36..4F..05S |
4 | ||
| 90430-10074 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
8 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM35;KM36..02S;KM36..4F..05S |
4 | ||
| 90430-10074 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
8 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-27080 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47314-27051 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47314-27050 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33555 |
CM35,KM3# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27141 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47321-27150 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47321-27151 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47321-27140 |
CM35..LHD;KM36..4F..05S;KM36..LHD..02S SINGLE BOOSTER |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-27180 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47322-27140 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-27240 |
KM36..4F..05S;CM35,KM36..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47323-27210 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-27090 |
CM35,KM3# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-27070 |
CM35,KM36 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-27060 |
CM35,KM36 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-27040 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-27020 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||

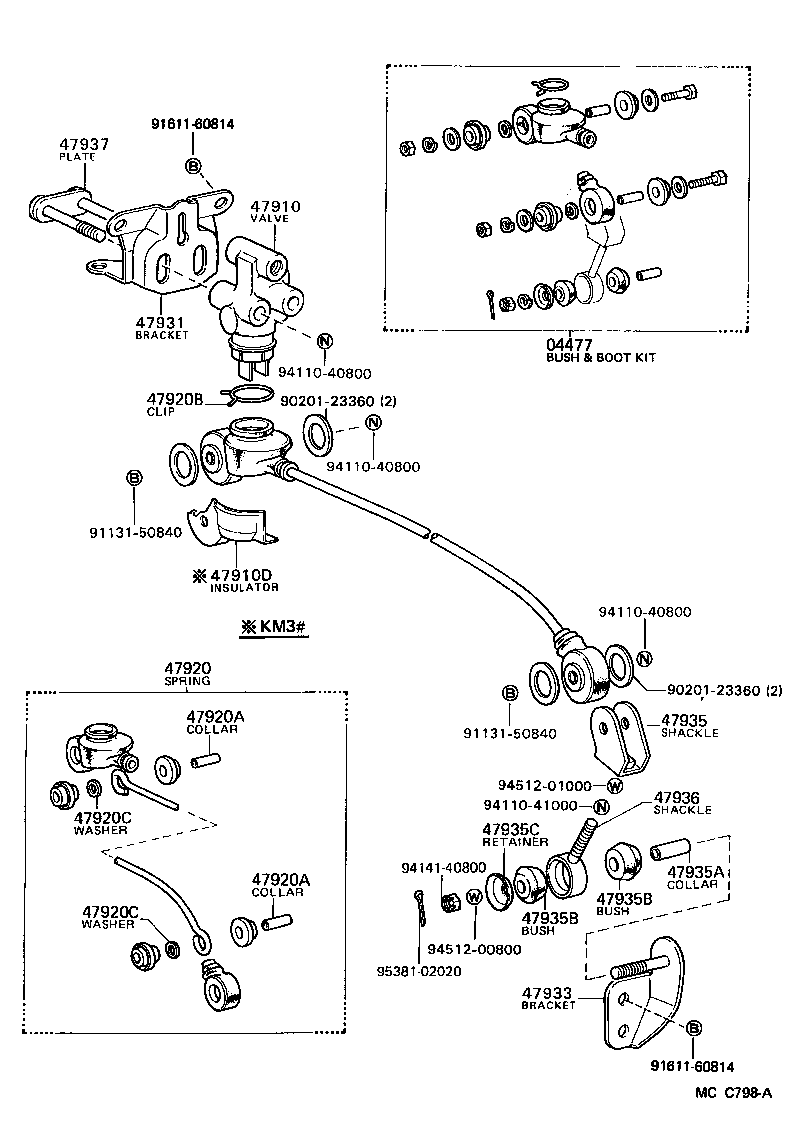

ILLUST NO. 3 OF 3(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
CM35,KM3# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-27080 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47910-28080 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47910-27081 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-27040 |
CM35,KM3# |
1 | ||
| 47920-27040 |
CM35,KM3# |
1 | ||
| 47920-27090 |
CM35,KM3# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
CM35,KM3# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
CM35,KM3# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
CM35,KM3# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
CM35,KM3# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
CM35,KM3# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-27070 |
CM35,KM3# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-27040 |
CM35,KM3# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
CM35,KM3# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
CM35,KM3# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
CM35,KM3# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
CM35,KM3# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
CM35,KM3# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-28010 |
CM35,KM3# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60814 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

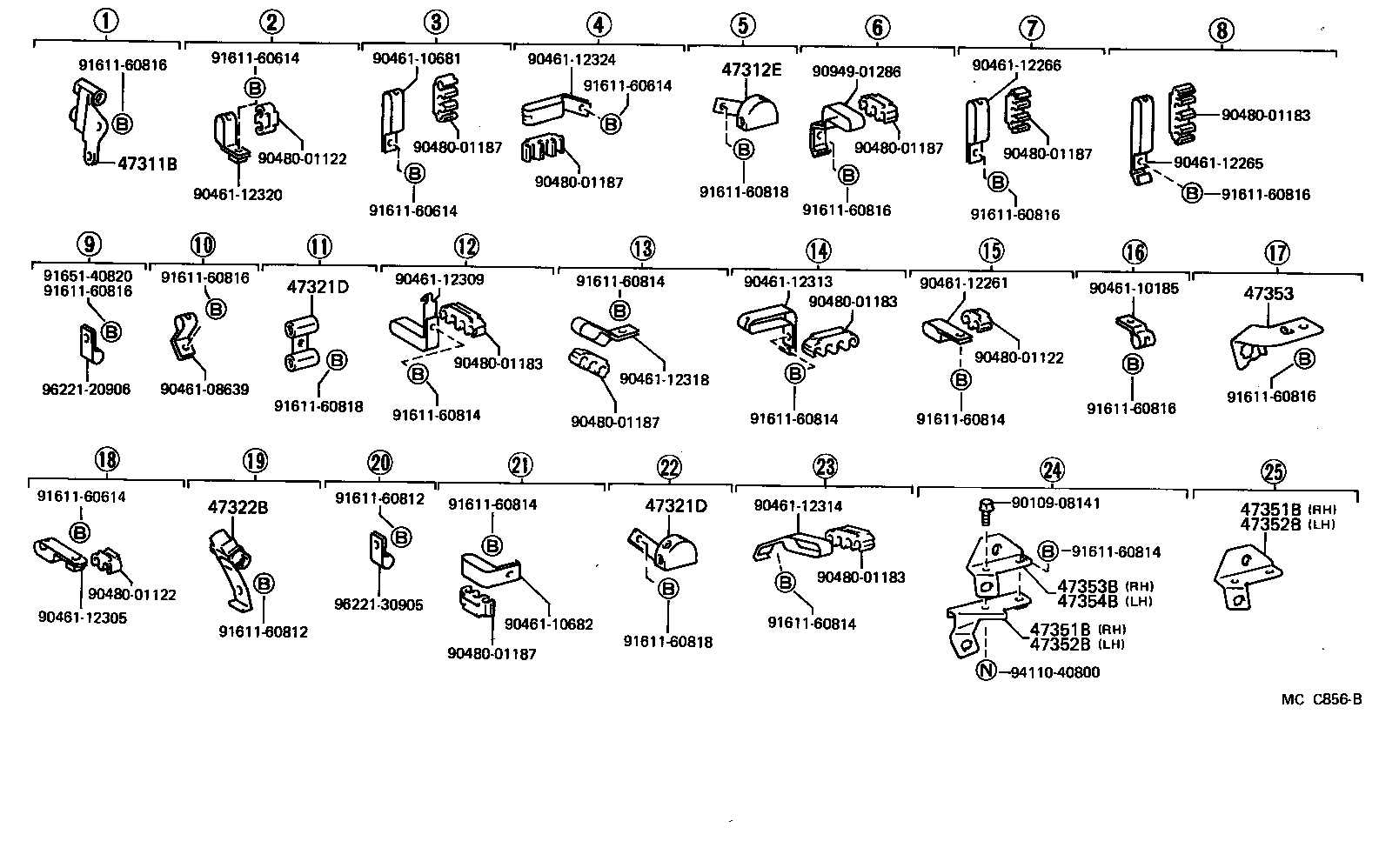

ILLUST NO. 2 OF 3(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10136 |
CM35,KM3# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10197 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 90414-10016 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10062 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 90414-10016 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10062 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 90414-10016 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10199 |
CM35,KM3# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47353-27120 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47353-27070 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47353-27050 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47353-27120 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47353-27070 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47353-27050 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-27040 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47354-27090 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47354-27060 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-27040 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47354-27090 |
CM35;KM36..02S;KM36..4F..05S SINGLE BOOSTER |
1 | ||
| 47354-27060 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-27050 |
CM35,KM3# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-27060 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-27050 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| Common parts | ||||
| 90109-08141 | ||||
| 90461-08639 | ||||
| 90461-10185 | ||||
| 90461-10681 | ||||
| 90461-10682 | ||||
| 90461-12261 | ||||
| 90461-12265 | ||||
| 90461-12266 | ||||
| 90461-12305 | ||||
| 90461-12309 | ||||
| 90461-12313 | ||||
| 90461-12314 | ||||
| 90461-12318 | ||||
| 90461-12320 | ||||
| 90461-12324 | ||||
| 90480-01122 | ||||
| 90480-01183 | ||||
| 90480-01187 | ||||
| 90949-01286 | ||||
| 91611-60614 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60818 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 96221-20906 | ||||
| 96221-30905 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
