CM35LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8510- )

Click highlighted areas on diagram

diagram 45222E 45222E 45308D 45308D 45312A 45380 45380A 45383B 45383B 45383C 45384A 45385A 45385B 45388 45389 45389 45545B 45545C 9010110150 9011906255 9011906255 9017008021 9036418006 9036418007 9161161035 9165161030 9451201000
Part # Description Qty Price
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030

CM35,KM3#

 2
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030

CM35,KM3#

 2
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15001

CM35,KM3#

 2
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15001

CM35,KM3#

 2
45312A - BRACKET, STEERING BEVEL GEAR HOUSING
45312-27080

CM35,KM3#..LHD

 1
45380 - GEAR ASSY, STEERING BEVEL
45380-27020

CM35,KM3#..LHD

 1
45380-28020

CM35,KM3#..LHD

 1
45380A - WASHER(FOR STEERING BEVEL GEAR)
90209-18002

CM35,KM3#

T=1.90,MARK 2,T=1.90

 1
90209-18003

CM35,KM3#

T=1.95,MARK 3,T=1.95

 1
90209-18005

CM35,KM3#

T=2.05,MARK 5,T=2.05

 1
90209-18007

CM35,KM3#

T=2.15,MARK 7,T=2.15

 1
90209-18006

CM35,KM3#

T=2.10,MARK 6,T=2.10

 1
90209-18004

CM35,KM3#

T=2.00,MARK 4,T=2.00

 1
90209-18008

CM35,KM3#

T=2.20,MARK 8,T=2.20

 1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-18063

CM35,KM3#

RR

 1
90501-20080

CM35,KM3#

FR

 1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-18063

CM35,KM3#

RR

 1
90501-20080

CM35,KM3#

FR

 1
45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)
90363-15010

CM35,KM3#

 1
45384A - COVER, STEERING BEVEL GEAR
45384-27010

CM35,KM3#

 1
45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)
45385-27010

CM35,KM3#

 1
45385B - BOLT, SET(FOR LOCK BOLT SEAT)
90113-08006

CM35,KM3#

 1
45388 - PLATE, STEERING BEVEL GEAR
45388-27010

CM35,KM3#

 1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27010

CM35,KM3#

FR

 1
45389-27021

CM35,KM3#

RR

 1
45389-27020

CM35,KM3#

RR

 1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27010

CM35,KM3#

FR

 1
45389-27021

CM35,KM3#

RR

 1
45389-27020

CM35,KM3#

RR

 1
45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR
45545-10010

CM35,KM3#

 1
45545-27020

CM35,KM3#

 1
45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW
90179-38001

CM35,KM3#

 1
Common parts
90101-10150
90119-06255
90170-08021
90364-18006
90364-18007
91611-61035
91651-61030
94512-01000

ILLUST NO. 1 OF 2(8510- )

Click highlighted areas on diagram

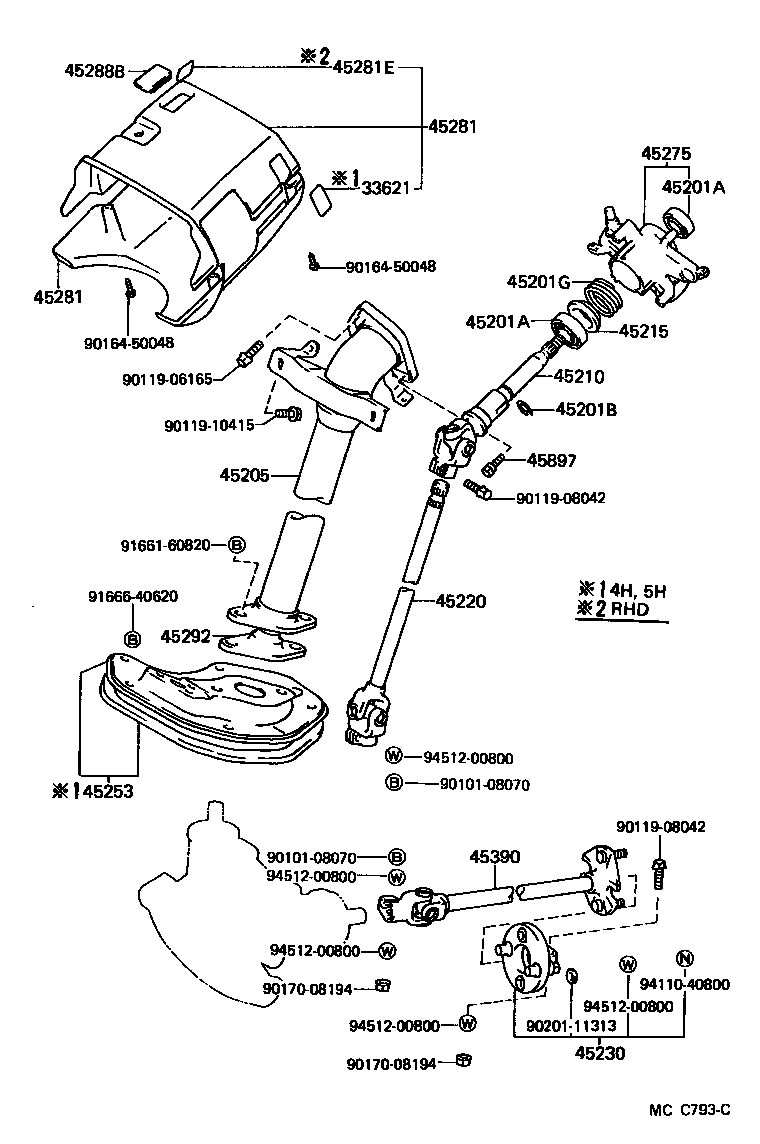

diagram 33621 45201A 45201A 45201B 45201G 45205 45210 45215 45220 45230 45253 45275 45281 45281 45281E 45288B 45292 45390 45897 9010108070 9010108070 9011906165 9011908042 9011908042 9011910415 9016450048 9016450048 9017008194 9017008194 9020111313 9166160820 9166640620 9411040800 9451200800 9451200800 9451200800 9451200800 9451200800
Part # Description Qty Price
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

CM35,KM3#

LWR

 1
90363-18001

CM35,KM3#

UPR

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

CM35,KM3#

LWR

 1
90363-18001

CM35,KM3#

UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CM35,KM3#

T=1.20

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-45011

CM35,KM3#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-27110

CM35,KM3#..LHD

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-22050

CM35,KM3#

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-22011

CM35,KM3#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-27080

CM35,KM3#..LHD

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-27020

CM35,KM3#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-27131

CM35..5F

 1
45280-27131

CM35,KM3#..LHD..(4F,5F)

 1
45280-27130

CM35,KM3#..LHD..(4F,5F)

 1
45281 - HOUSING, STEERING COLUMN
45286-2721006

CM35,KM3#..LHD..(4F,5F)

UPR,BROWN,BROWN,TRIM4#

 1
45287-2711006

CM35,KM3#..LHD..(4F,5F)

LWR,BROWN,BROWN,TRIM4#

 1
45281 - HOUSING, STEERING COLUMN
45286-2721006

CM35,KM3#..LHD..(4F,5F)

UPR,BROWN,BROWN,TRIM4#

 1
45287-2711006

CM35,KM3#..LHD..(4F,5F)

LWR,BROWN,BROWN,TRIM4#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-27010

CM35,KM3#

 1
45390 - SHAFT ASSY, STEERING TORQUE
45390-27010

CM35,KM3#

 1
45897 - BOLT, STEERING LOCK SET
45897-14010

CM35,KM3#

 1
Common parts
90101-08070
90119-06165
90119-08042
90119-10415
90164-50048
90170-08194
90201-11313
91661-60820
91666-40620
94110-40800
94512-00800
