CM35LV-MRSW (1985)
Toyota Liteace Van,Wagon

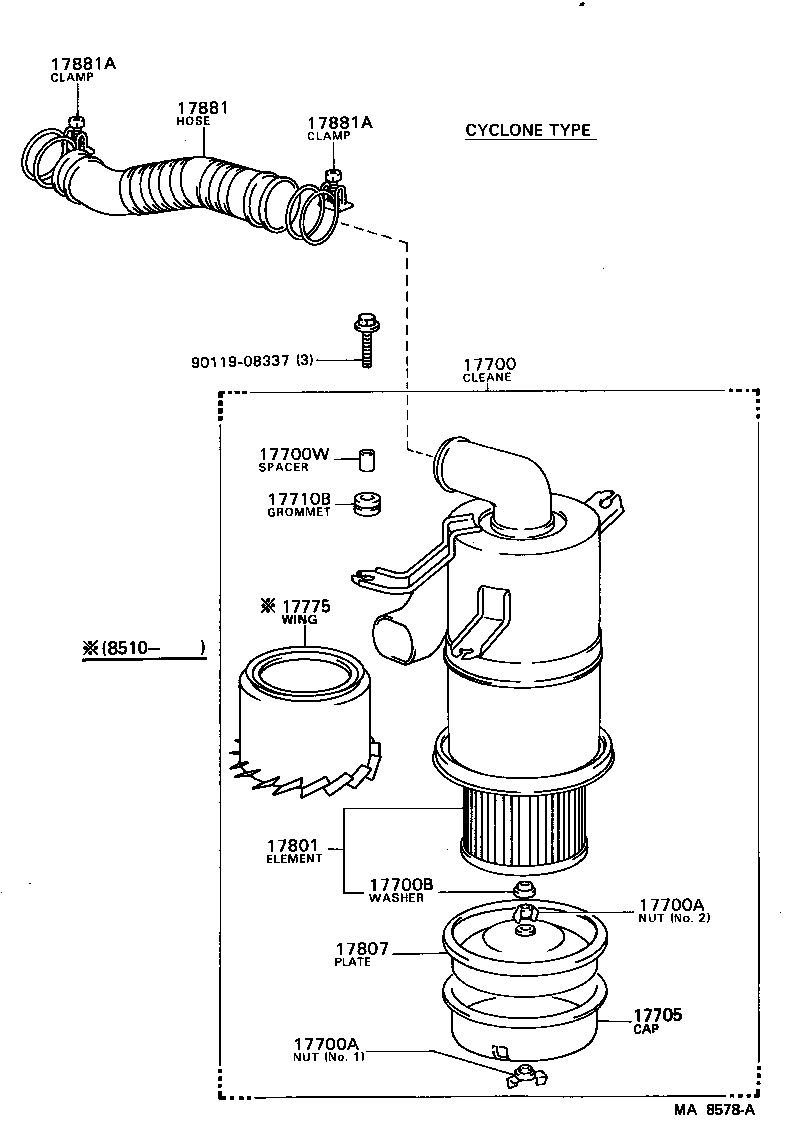

ILLUST NO. 1 OF 2(8510- )1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64170 |
1C..CM35 |
1 | ||
| 17700-64180 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17700W - SPACER(FOR AIR CLEANER) | ||||
| 90560-08038 |
1C..CM35 |
3 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64070 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17705-64090 |
1C..CM35 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16014 |
1C..CM35 |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54050 |
1C..CM35 |
1 | ||
| 17801-64030 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64110 |
1C..CM35 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1C..CM35 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1C..CM35 |
2 | ||
| Common parts | ||||
| 90119-08337 | ||||
ILLUST NO. 1 OF 2(8510- )1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64170 |
1C..CM35 |
1 | ||
| 17700-64180 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
1C..CM35..LHD NO.1,CYCLONE TYPE |
1 | ||
| 94271-00800 |
1C..CM35..LHD NO.2,CYCLONE TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
1C..CM35..LHD NO.1,CYCLONE TYPE |
1 | ||
| 94271-00800 |
1C..CM35..LHD NO.2,CYCLONE TYPE |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17700W - SPACER(FOR AIR CLEANER) | ||||
| 90560-08038 |
1C..CM35 |
3 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64070 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17705-64090 |
1C..CM35 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16014 |
1C..CM35 |
3 | ||
| 17775 - WING, CYCLONE | ||||
| 17775-64010 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54050 |
1C..CM35 |
1 | ||
| 17801-64030 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17703-64010 |
1C..CM35..LHD CYCLONE TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64110 |
1C..CM35 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1C..CM35 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1C..CM35 |
2 | ||
| Common parts | ||||
| 90119-08337 | ||||

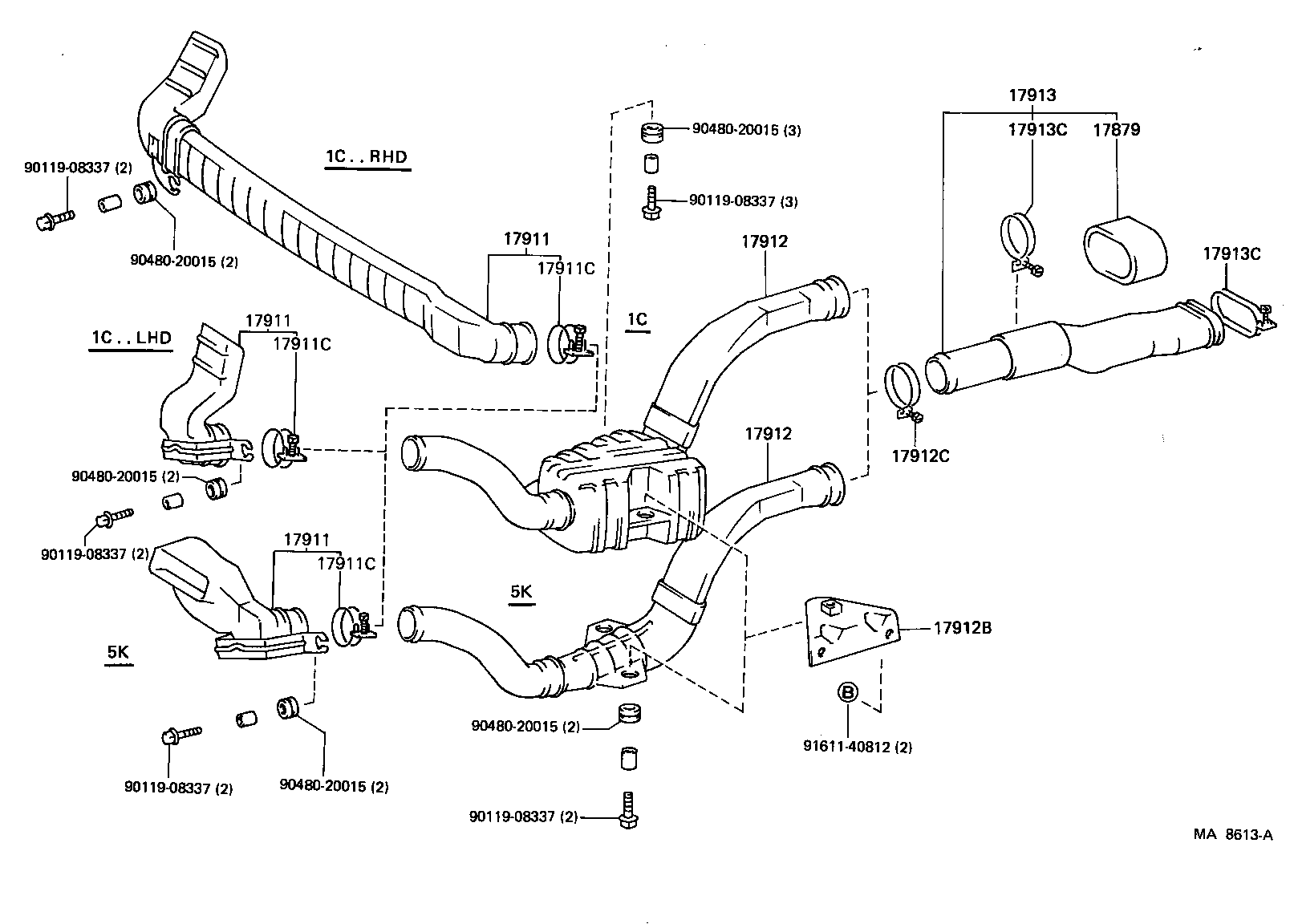

ILLUST NO. 2 OF 2(8510- )1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17879 - PAD, AIR CLEANER INLET | ||||
| 17879-95701 |
1C..CM35 |
1 | ||
| 17879-95701 |
1C..CM35 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95702 |
1C..CM35..LHD |
1 | ||
| 52810-95702 |
1C..CM35..LHD |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95702 |
1C..CM35..LHD |
1 | ||
| 52810-95702 |
1C..CM35..LHD |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-95702 |
1C..CM35..LHD |
1 | ||
| 52810-95702 |
1C..CM35..LHD |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10710 |
1C..CM35 |
1 | ||
| 96111-10710 |
1C..CM35 |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10710 |
1C..CM35 |
1 | ||
| 96111-10710 |
1C..CM35 |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10710 |
1C..CM35 |
1 | ||
| 96111-10710 |
1C..CM35 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-95700 |
1C..CM35 |
1 | ||
| 52820-95700 |
1C..CM35 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-95700 |
1C..CM35 |
1 | ||
| 52820-95700 |
1C..CM35 |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 52854-95700 |
1C..CM35 |
1 | ||
| 52854-95700 |
1C..CM35 |
1 | ||
| 17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2 | ||||
| 90460-69005 |
1C..CM35 |
1 | ||
| 90460-69005 |
1C..CM35 |
1 | ||
| 90460-71001 |
1C..CM35 |
1 | ||
| 90460-71001 |
1C..CM35 |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 52830-95700 |
1C..CM35 |
1 | ||
| 52830-95700 |
1C..CM35 |
1 | ||
| 17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3 | ||||
| 90460-01041 |
1C..CM35 AIR CLEANER SIDE |
1 | ||
| 90460-01041 |
1C..CM35 AIR CLEANER SIDE |
1 | ||
| 90460-71001 |
1C..CM35 DUCT SIDE |
1 | ||
| 90460-71001 |
1C..CM35 DUCT SIDE |
1 | ||
| 90460-69005 |
1C..CM35 DUCT SIDE |
1 | ||
| 90460-69005 |
1C..CM35 DUCT SIDE |
1 | ||
| 17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3 | ||||
| 90460-01041 |
1C..CM35 AIR CLEANER SIDE |
1 | ||
| 90460-01041 |
1C..CM35 AIR CLEANER SIDE |
1 | ||
| 90460-71001 |
1C..CM35 DUCT SIDE |
1 | ||
| 90460-71001 |
1C..CM35 DUCT SIDE |
1 | ||
| 90460-69005 |
1C..CM35 DUCT SIDE |
1 | ||
| 90460-69005 |
1C..CM35 DUCT SIDE |
1 | ||
| Common parts | ||||
| 90119-08337 | ||||
| 90480-20015 | ||||
| 91611-40812 | ||||
