CM35LV-MRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

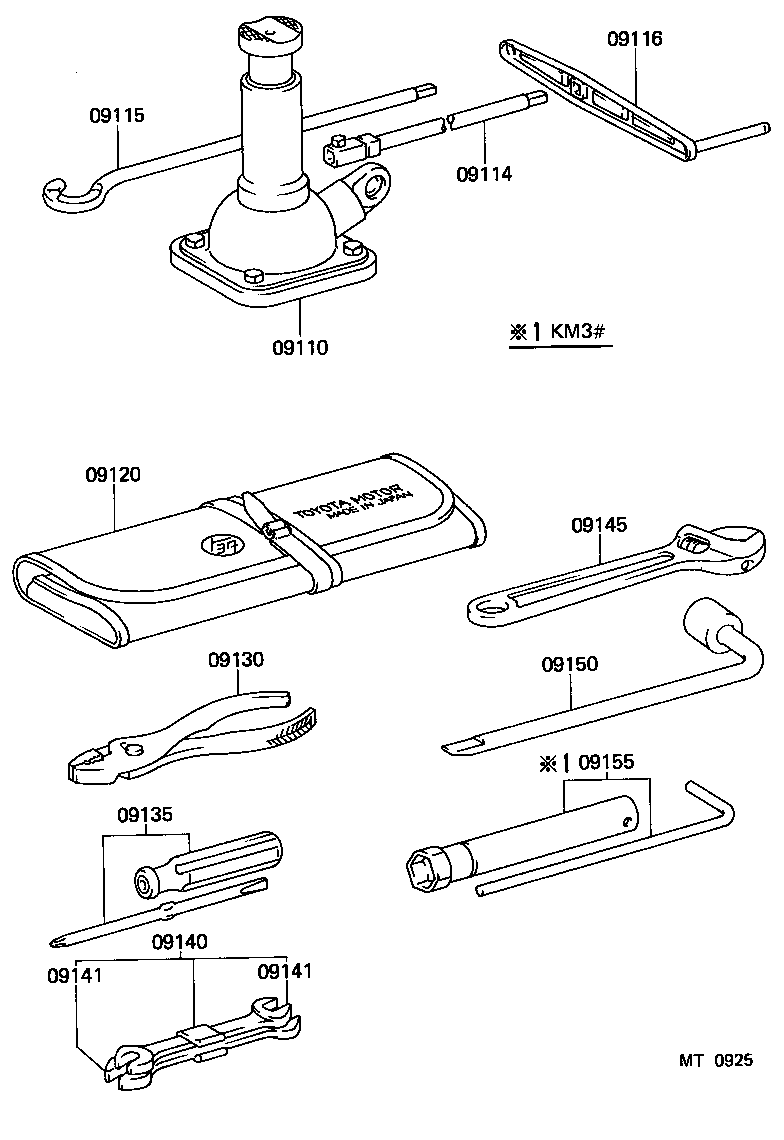

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09130 09135 09140 09141 09141 09145 09150 09155
Part # Description Qty Price
09110 - JACK ASSY
09111-27050

CM35,KM3#

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

CM35,KM3#

 1
09114-60040

CM35,KM3#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60030

CM35,KM3#

 1
09116 - LEVER, JACK HANDLE
09116-35040

CM35,KM3#

 1
09120 - BAG, TOOL
09120-26021

CM35,KM3#

 1
09130 - PLIERS
99913-11500

CM35,KM3#

 1
09135 - DRIVER, SCREW
99915-10700

CM35,KM3#

 1
09140 - SPANNER SET
09140-27010

CM35,KM3#

 1
09141 - SPANNER
99914-10810

CM35,KM3#

8 X 10,8X10

 1
99914-11417

CM35,KM3#

14 X 17,14X17

 1
99914-11012

CM35,KM3#

10 X 12,10X12

 1
99914-11214

CM35,KM3#

12 X 14,12X14

 1
09141 - SPANNER
99914-10810

CM35,KM3#

8 X 10,8X10

 1
99914-11417

CM35,KM3#

14 X 17,14X17

 1
99914-11012

CM35,KM3#

10 X 12,10X12

 1
99914-11214

CM35,KM3#

12 X 14,12X14

 1
09145 - WRENCH, MONKEY
99911-11200

CM35,KM3#

 1
99911-10200

CM35,KM3#

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CM35,KM3#

 1
