CM30LG-MDSW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM3#..LHD

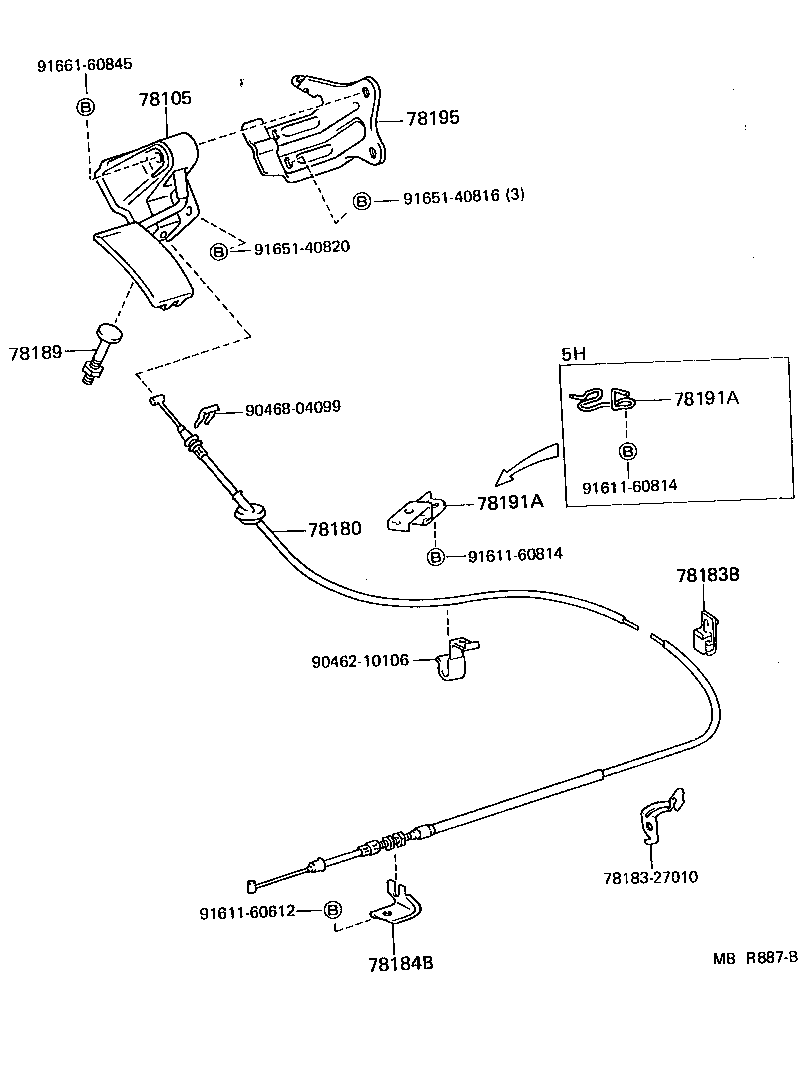

Click highlighted areas on diagram

diagram 78105 78180 7818327010 78183B 78184B 78189 78191A 78191A 78195 9046210106 9046804099 9161160612 9161160814 9161160814 9165140816 9165140820 9166160845
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95708

CM3#,KM3#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95719

CM3#..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM3#..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95704

CM3#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95702

CM3#,KM3#

 1
78208-27010

CM3#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95706

CM3#,KM3#..LHD..(4F,5F)

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95706

CM3#,KM3#..LHD..(4F,5F)

 1
78195 - BRACKET, ACCELERATOR LINK
78195-95700

CM3#,KM3#..LHD

 1
Common parts
78183-27010
90462-10106
90468-04099
91611-60612
91611-60814
91651-40816
91651-40820
91661-60845
