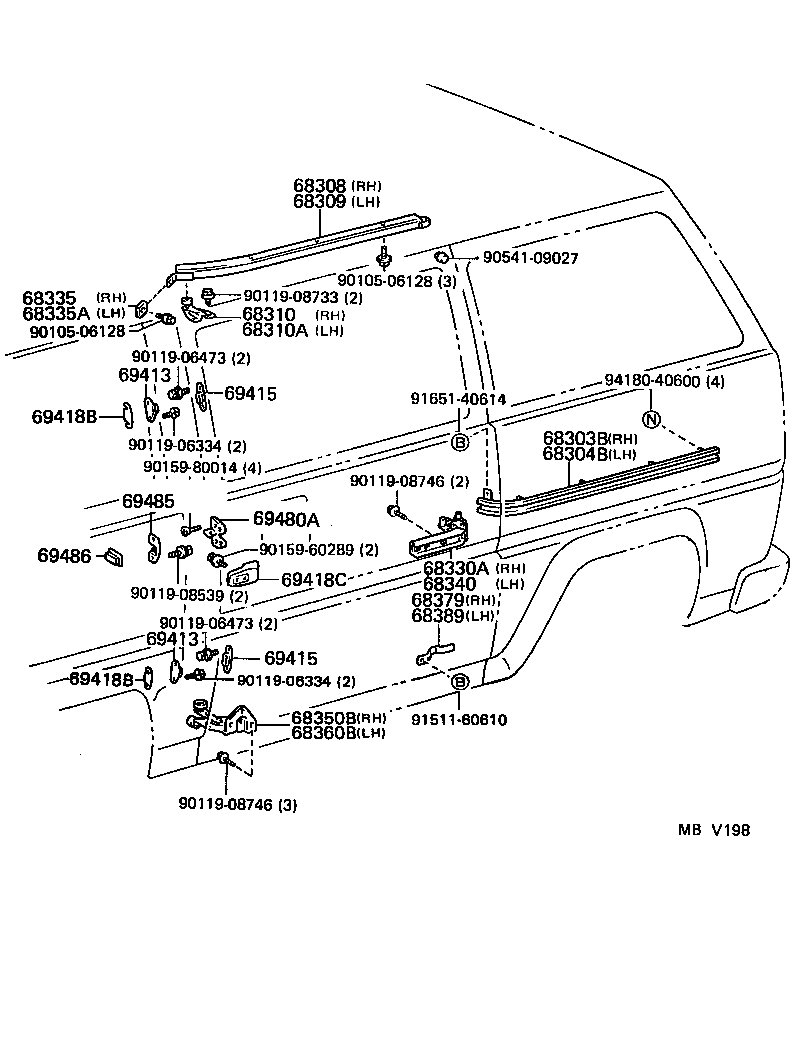

Toyota Liteace van,wagon CM30 SLIDE ROLLER & RAIL

Part #	Description	Period	Qty
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-95702	CM3#,KM3#..LHD	08/1988 - 01/1992	1
68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68308-95701	CM3#,KM3#..LHD	08/1988 - 01/1992	1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68310-95703	CM3#,KM3#..LHD	08/1988 - 01/1992	1
68330A - ROLLER ASSY, SLIDE
68330-95704	CM3#,KM3#..LHD	08/1988 - 01/1992	1
68335 - PAD, SLIDE DOOR UPPER RAIL
68335-95702	CM3#,KM3#..LHD	08/1988 - 01/1992	1
68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH
68350-95704	CM3#,KM3#..LHD	08/1988 - 01/1992	1
68379 - SPRING, SLIDE DOOR CATCH, RH
68379-95700	CM3#,KM3#..LHD	08/1988 - 01/1992	1
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95701	CM3#,KM3#..V4D	08/1988 - 01/1989	2
69416-95702	CM3#,KM3#..V4D	01/1989 - 01/1992	2
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95701	CM3#,KM3#..V4D	08/1988 - 01/1989	2
69416-95702	CM3#,KM3#..V4D	01/1989 - 01/1992	2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87001	CM3#,KM3#..V4D	08/1988 - 01/1989	2
69415-87003	CM3#,KM3#..V4D	01/1989 - 01/1992	2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87001	CM3#,KM3#..V4D	08/1988 - 01/1989	2
69415-87003	CM3#,KM3#..V4D	01/1989 - 01/1992	2
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700	CM3#,KM3#	08/1988 - 01/1992	1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700	CM3#,KM3#	08/1988 - 01/1992	1
69418C - STOPPER, BACK DOOR MALE, LOWER
69418-87003	CM3#,KM3#..V4D	08/1988 - 01/1992	1
69480A - HOOK ASSY, SLIDE DOOR FRONT LOCK
69480-95701	CM3#,KM3#..VSG	08/1988 - 01/1992	1
69485 - BRACKET, SLIDE DOOR FRONT LOCK STRIKER
69485-95701	CM3#,KM3#..VSG	08/1988 - 01/1992	1
69486 - COVER, SLIDE DOOR FRONT LOCK STRIKER
69486-95701	CM3#,KM3#..VSG	08/1988 - 01/1992	1
Common parts
90105-06128
90119-06334
90119-06473
90119-08539
90119-08733
90119-08746
90159-60289
90159-80014
90541-09027
91511-60610
91651-40614
94180-40600

CM30LG-MDSW (1988)

(8808- )
