CM30LG-MDSW (1988)
Toyota Liteace Van,Wagon

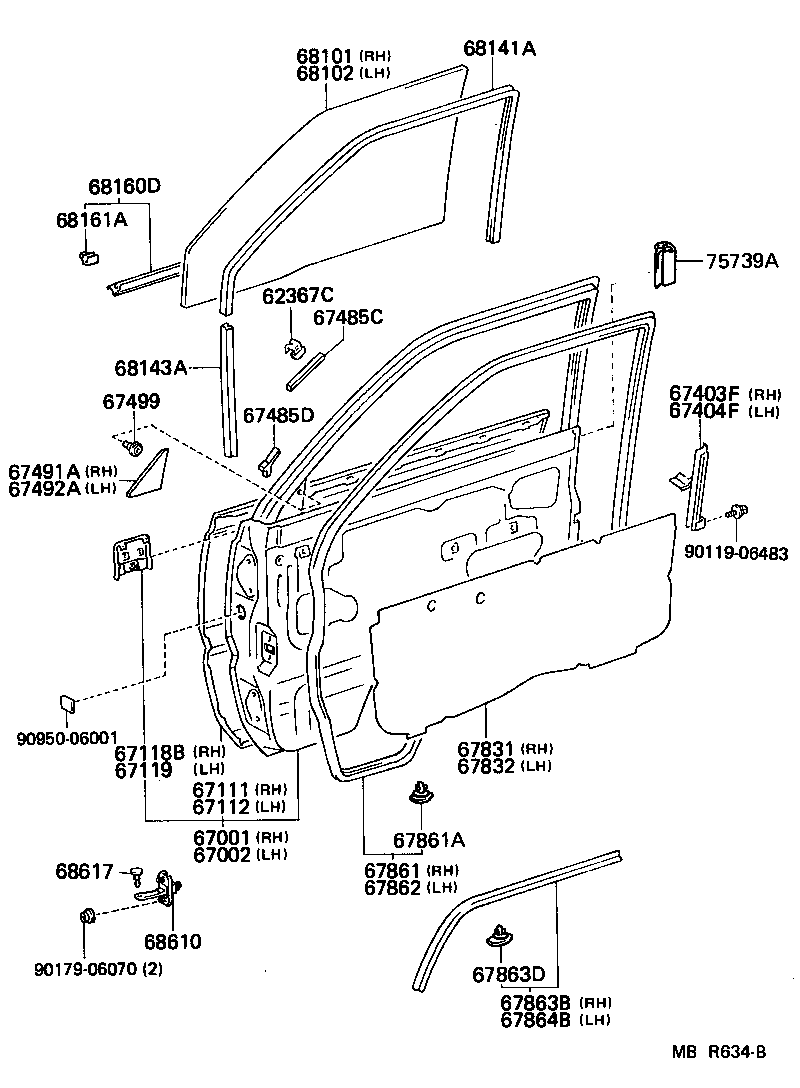

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62367C - CLIP, DOOR WINDOW GLASS | ||||
| 62367-10010 |
CM3#,KM3# |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95735 |
CM3#,KM3#..VSG |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95739 |
CM3#,KM3#..VSG |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95716 |
CM3#,KM3# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95713 |
CM3#,KM3# |
1 | ||
| 67118B - RETAINER, OUTER REAR VIEW MIRROR, RH | ||||
| 67118-95700 |
CM3#,KM3# |
1 | ||
| 67119 - RETAINER, OUTER REAR VIEW MIRROR, LH | ||||
| 67119-95700 |
CM3#,KM3# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95701 |
CM3#,KM3# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95701 |
CM3#,KM3# |
1 | ||
| 67485C - SEAL, FRONT DOOR BRACKET, NO.1 | ||||
| 67485-95J01 |
CM3#,KM3# |
2 | ||
| 67485D - SEAL, FRONT DOOR BRACKET, NO.2 | ||||
| 67485-95701 |
CM3#,KM3# |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM3#,KM3# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM3#,KM3# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM3#,KM3# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95704 |
CM3#,KM3# W(RADIO) |
1 | ||
| 67831-95704 |
CM3#,KM3# W(RADIO) |
1 | ||
| 67831-95703 |
CM3#,KM3# |
1 | ||
| 67831-95704 |
CM30,KM30;CM36,KM36..RHD W(RADIO) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-95700 |
CM30,KM30;CM36,KM36..RHD W(RADIO) |
1 | ||
| 67832-95700 |
CM3#,KM3# W(RADIO) |
1 | ||
| 67832-95700 |
CM3#,KM3# W(RADIO) |
1 | ||
| 67831-95703 |
CM3#,KM3# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95703 |
CM3#,KM3# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-95700 |
CM3#,KM3# LH |
27 | ||
| 67867-95700 |
CM3#,KM3# RH |
27 | ||
| 67868-20040 |
CM3#,KM3# |
27 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95703 |
CM3#,KM3# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-95700 |
CM3#,KM3# |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-95700 |
CM3#,KM3# RH |
12 | ||
| 67868-95700 |
CM3#,KM3# LH |
12 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-95700 |
CM3#,KM3# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95705 |
CM3#,KM3# *TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95705 |
CM3#,KM3# *TEM,T=4.0 |
1 | ||
| 68141A - RUN, FRONT DOOR GLASS, UPPER | ||||
| 68141-95706 |
CM3#,KM3# |
2 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-95704 |
CM3#,KM3# |
2 | ||
| 68143-95705 |
CM3#,KM3# |
2 | ||
| 68160D - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER | ||||
| 68160-95701 |
CM3#,KM3# |
2 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-30080 |
CM3#,KM3# |
14 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95701 |
CM3#,KM3# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
CM3#,KM3# |
2 | ||
| 68617-90A00 |
CM3#,KM3# |
2 | ||
| 75739A - MOULDING DOOR EDGE | ||||
| 75739-95J00 |
CM3#,KM3# |
1 | ||
| Common parts | ||||
| 90119-06483 | ||||
| 90179-06070 | ||||
| 90950-06001 | ||||

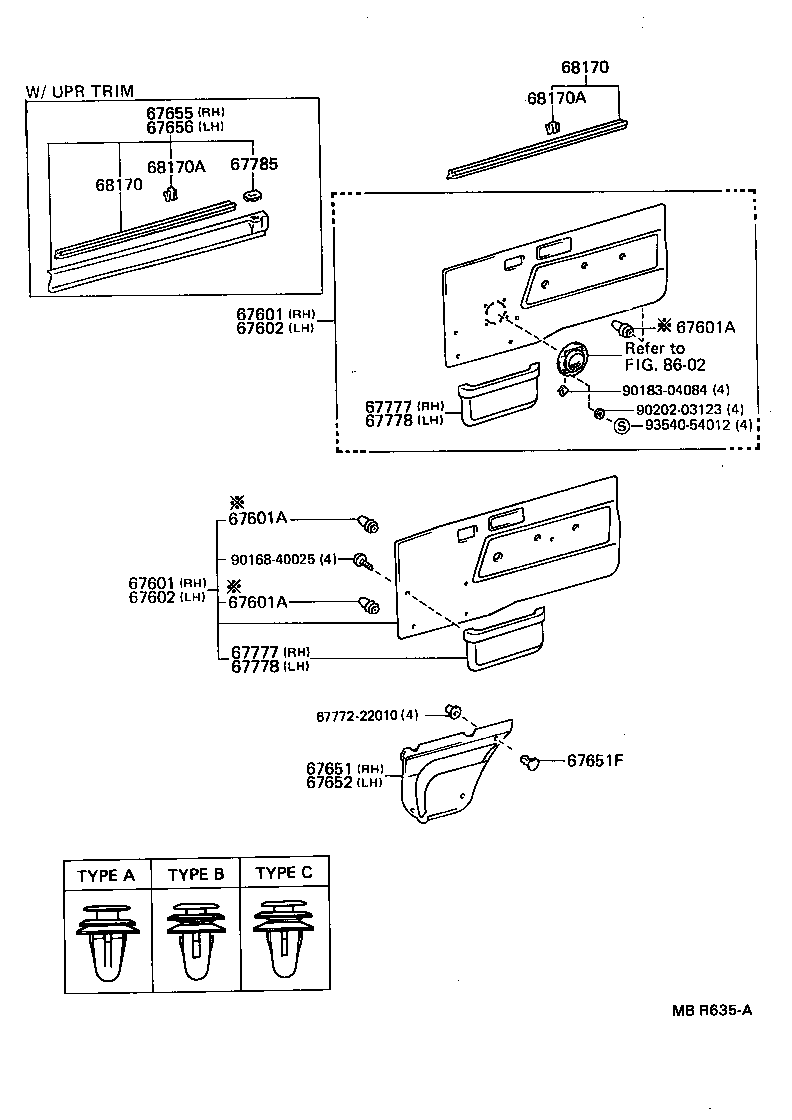

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9577403 |
CM30,KM30..DLX GRAY,TRIM1# |
1 | ||
| 67610-9577516 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67610-9577503 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67610-9577416 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67610-9577503 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67610-9577516 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9577403 |
CM30,KM30..DLX GRAY,TRIM1# |
1 | ||
| 67610-9577516 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67610-9577503 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67610-9577416 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67610-9577503 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67610-9577516 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
CM3#,KM3# |
26 | ||
| 67771-95J09 |
CM30,KM30..DLX TYPE C |
2 | ||
| 67771-27010 |
CM3#,KM3# TYPE B |
2 | ||
| 67771-16020 |
CM3#,KM3# TYPE A |
24 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
CM3#,KM3# |
26 | ||
| 67771-95J09 |
CM30,KM30..DLX TYPE C |
2 | ||
| 67771-27010 |
CM3#,KM3# TYPE B |
2 | ||
| 67771-16020 |
CM3#,KM3# TYPE A |
24 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
CM3#,KM3# |
26 | ||
| 67771-95J09 |
CM30,KM30..DLX TYPE C |
2 | ||
| 67771-27010 |
CM3#,KM3# TYPE B |
2 | ||
| 67771-16020 |
CM3#,KM3# TYPE A |
24 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9577716 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67620-9576816 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67620-9577703 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67620-9577703 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67620-9576803 |
CM30,KM30..DLX GRAY,TRIM1# |
1 | ||
| 67620-9577716 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9577716 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67620-9576816 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67620-9577703 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67620-9577703 |
CM30,KM30..DLX W(SPEAKER),GRAY,TRIM1# |
1 | ||
| 67620-9576803 |
CM30,KM30..DLX GRAY,TRIM1# |
1 | ||
| 67620-9577716 |
CM30,KM30..DLX W(SPEAKER),SABLE,TRIM4# |
1 | ||
| 67651 - BOARD, FRONT DOOR TRIM, LOWER RH | ||||
| 67628-9570016 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67628-9570013 |
CM30,KM30..DLX GRAY,TRIM1# |
1 | ||
| 67651F - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0804626 |
CM30,KM30..DLX SABLE,TRIM4# |
8 | ||
| 90467-0804603 |
CM30,KM30..DLX GRAY,TRIM1# |
8 | ||
| 90467-08046B1 |
CM30,KM30..DLX SHADOW GRAY,TRIM1# |
8 | ||
| 67652 - BOARD, FRONT DOOR TRIM, LOWER LH | ||||
| 67629-9570016 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67629-9570013 |
CM30,KM30..DLX GRAY,TRIM1# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570313 |
CM3#,KM3# GRAY,TRIM1# |
1 | ||
| 67650-9570316 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570416 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67660-9570413 |
CM3#,KM3# GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-2204050 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67777-2204023 |
CM3#,KM3#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-2204050 |
CM30,KM30..DLX SABLE,TRIM4# |
1 | ||
| 67777-2204023 |
CM3#,KM3#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR | ||||
| 69751-1201013 |
CM3#,KM3# GRAY,TRIM1# |
2 | ||
| 69751-1201016 |
CM30,KM30..DLX SABLE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95707 |
CM3#,KM3#..VSG LH |
1 | ||
| 68171-95707 |
CM3#,KM3#..VSG RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95707 |
CM3#,KM3#..VSG LH |
1 | ||
| 68171-95707 |
CM3#,KM3#..VSG RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM3#,KM3# |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM3#,KM3# |
14 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90183-04084 | ||||
| 90202-03123 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8602 | ||||
