CM30LG-MDSW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

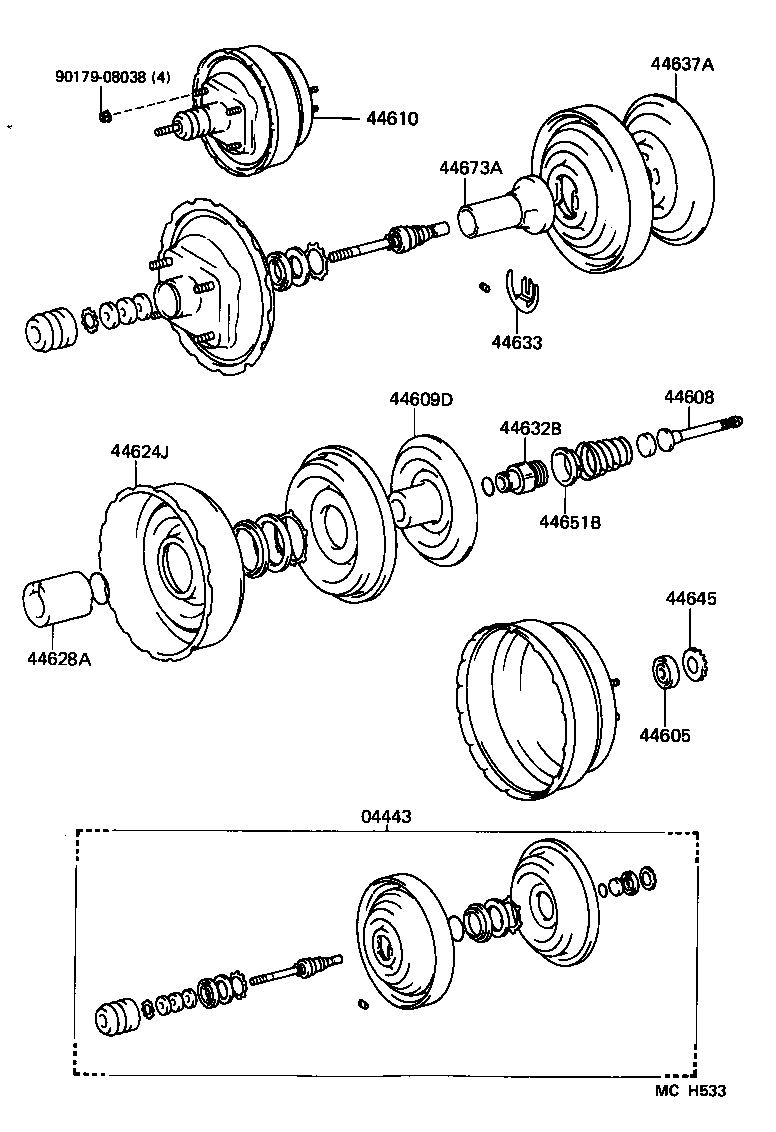

ILLUST NO. 1 OF 2(8808- )4F..05S ; (8808- )CM3#,KM36..LHD..02S,08S

Click highlighted areas on diagram

JKC

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-27310

CM3#..VSG

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

CM3#,KM3#..VSG

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-17090

CM3#,KM3#..VSG

 1
44610 - BOOSTER ASSY, BRAKE
44610-27290

CM3#,KM3#..VSG

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

CM3#,KM3#..VSG

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-20810

CM3#,KM3#..VSG

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

CM3#,KM3#..VSG

 1
44673A - BODY, BOOSTER VALVE
44673-20810

CM3#,KM3#..VSG

 1
Common parts
90179-08038

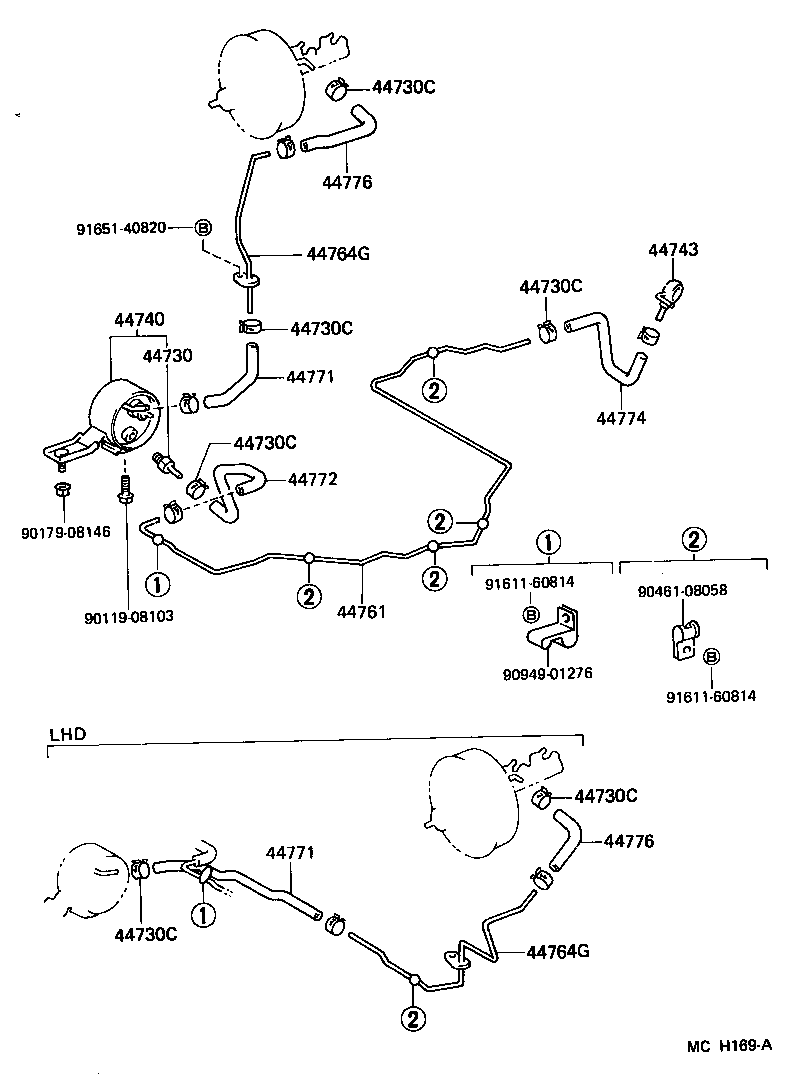

ILLUST NO. 2 OF 2(8808- )CM3#

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730C 44730C 44740 44743 44761 44764G 44764G 44771 44771 44772 44774 44776 44776 9011908103 9017908146 9046108058 9094901276 9161160814 9161160814 9165140820
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CM3#

 1
44730-60040

CM3#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,KM3#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,KM3#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,KM3#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,KM3#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,KM3#

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,KM3#

 8
44740 - RESERVOIR ASSY, VACUUM
44740-27040

CM3#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09064

CM3#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27120

CM3#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-27050

CM3#,KM3#..LHD

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-27050

CM3#,KM3#..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27070

CM3#..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27070

CM3#..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27030

CM3#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-27100

CM3#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27030

CM3#,KM3#..VSG

 1
44776 - HOSE, BRAKE BOOSTER
44776-27030

CM3#,KM3#..VSG

 1
Common parts
90119-08103
90179-08146
90461-08058
90949-01276
91611-60814
91651-40820

ILLUST NO. 1 OF 2(8808- )4F..05S ; (8808- )LHD..V4D..4H,5F

Click highlighted areas on diagram

JKC

diagram 04443 44605 44608 44609D 44610 44624J 44628A 44632B 44633 44637A 44645 44651B 44673A 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-27310

CM3#..VSG

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

CM3#,KM3#..VSG

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-17090

CM3#,KM3#..VSG

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-17090

CM30,KM3#..VSG;CM36..LHD..V4D..5F

 1
44609-17090

KM36..4F..05S;CM3#,KM3#..LHD..V4D..(4H,5F)

 1
44610 - BOOSTER ASSY, BRAKE
44610-27290

CM3#,KM3#..VSG

 1
44624J - PLATE, BOOSTER CENTER
44624-20810

CM30,KM3#..VSG;CM36..LHD..V4D..5F

 1
44624-20810

KM36..4F..05S;CM3#,KM3#..LHD..V4D..(4H,5F)

 1
44628A - BODY, BOOSTER CENTER
44628-20810

CM30,KM3#..VSG;CM36..LHD..V4D..5F

 1
44628-20810

KM36..4F..05S;CM3#,KM3#..LHD..V4D..(4H,5F)

 1
44632B - HUB, BOOSTER REACTION DISK
44632-27290

KM36..4F..05S;CM3#,KM3#..LHD..V4D..(4H,5F)

 1
44632-27290

CM30,KM3#..VSG;CM36..LHD..V4D..5F

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

CM3#,KM3#..VSG

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-20810

CM3#,KM3#..VSG

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

CM3#,KM3#..VSG

 1
44651B - NUT, BOOSTER
44651-20810

KM36..4F..05S;CM3#,KM3#..LHD..V4D..(4H,5F)

 1
44651-20810

CM30,KM3#..VSG;CM36..LHD..V4D..5F

 1
44673A - BODY, BOOSTER VALVE
44673-20810

CM3#,KM3#..VSG

 1
Common parts
90179-08038
