YM20RV-MR (1984)

Toyota Liteace

Production Feb 1984 - Aug 1985
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8501- )YM2#

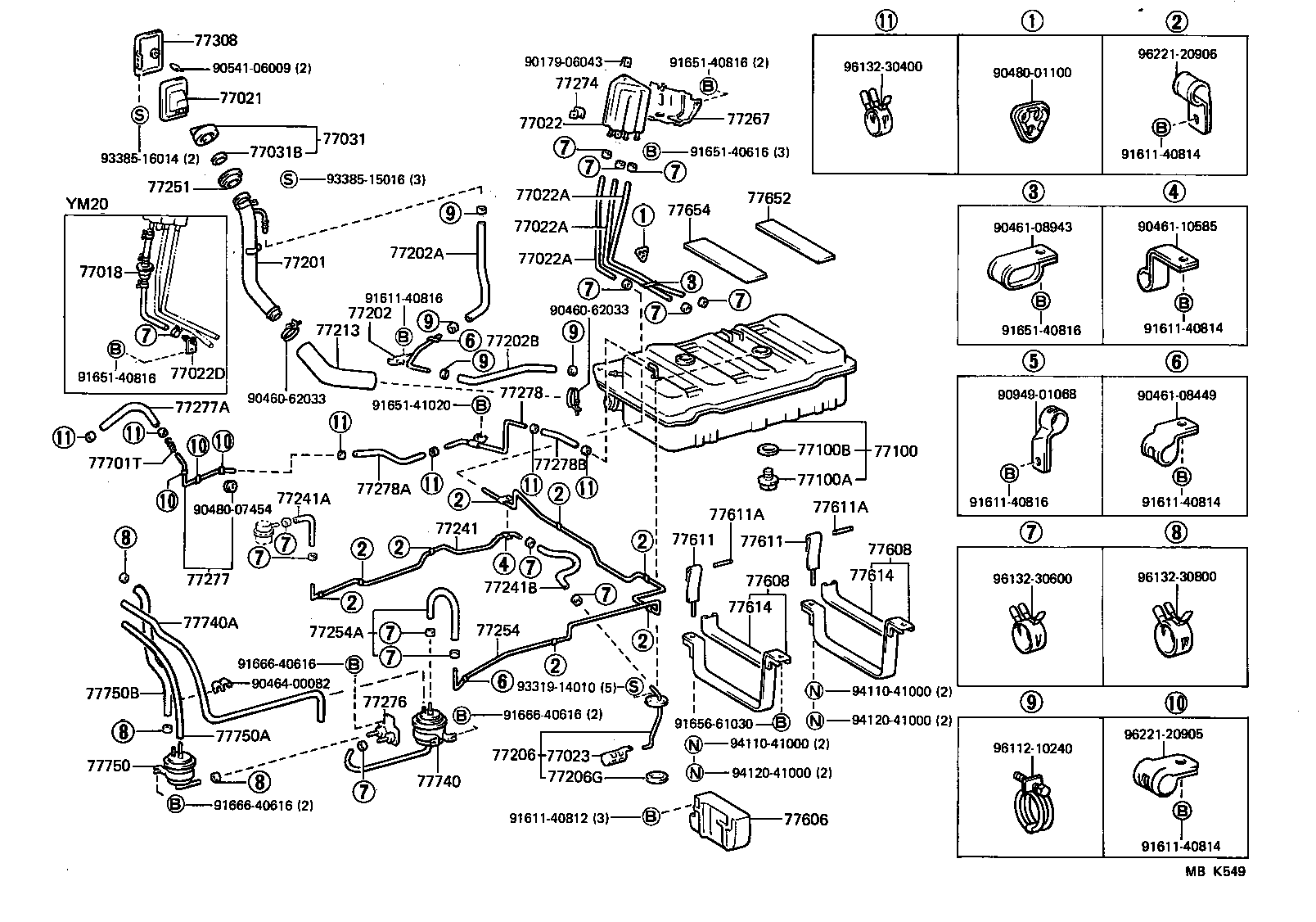

Click highlighted areas on diagram

diagram 77018 77021 77022 77022A 77022A 77022A 77022D 77023 77031 77031B 77100 77100A 77100B 77201 77202 77202A 77202B 77206 77206G 77213 77241 77241A 77241B 77251 77254 77254A 77267 77274 77276 77277 77277A 77278 77278A 77278B 77308 77606 77608 77608 77611 77611 77611A 77611A 77614 77614 77652 77654 77701T 77740 77740A 77750 77750A 77750B 9017906043 9046062033 9046062033 9046108449 9046108943 9046110585 9046400082 9048001100 9048007454 9054106009 9094901068 9161140812 9161140814 9161140814 9161140814 9161140814 9161140816 9161140816 9165140616 9165140816 9165140816 9165140816 9165141020 9165661030 9166640616 9166640616 9166640616 9331914010 9338515016 9338516014 9411041000 9411041000 9412041000 9412041000 9611210240 9613230400 9613230600 9613230800 9622120905 9622120906
Part # Description Qty Price
77021 - BOX ASSY, FUEL TANK INLET
77301-95700

CM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77271-28011

CM20,KM20,YM2#..HRF,SRF

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27070

CM20,KM20,YM2#..HRF,SRF

L=800

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27070

CM20,KM20,YM2#..HRF,SRF

L=800

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27070

CM20,KM20,YM2#..HRF,SRF

L=800

 2
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

CM20,KM20,YM2#..HRF,SRF

 1
77100 - TANK ASSY, FUEL
77001-27180

YM2#

 1
77202 - TUBE SUB-ASSY, BREATHER
77203-27110

YM2#

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
90445-24022

CM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
77213 - HOSE, FUEL TANK SUB INLET
77259-27020

CM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-27041

KM20,YM2#..ARL,GEN

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

CM20,KM20,YM2#..HRF,SRF

 1
77267 - COVER, FUEL EVAPORATIVE TUBE
77267-95700

CM20,KM20,YM2#..HRF,SRF

 1
77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR
77274-27010

CM20,KM20,YM2#..HRF,SRF

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-27220

YM2#;KM20..06S,09S;KM20..V4D..03S;KM20..LHD..SRF..03S

 1
77278 - TUBE, FUEL RETURN, NO.2
77207-27010

YM2#

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-04020

YM2#

*H,L=200

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-04010

YM2#

*H,L=90

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77310-95700

CM20,KM20,YM2#..HRF,SRF

 1
77611 - BAND, FUEL TANK
77601-27020

CM20,KM20,YM2#..HRF,SRF

 2
77611 - BAND, FUEL TANK
77601-27020

CM20,KM20,YM2#..HRF,SRF

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

CM20,KM20,YM2#

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

CM20,KM20,YM2#

 2
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95411-10660

YM20

*H,L=450

 1
Common parts
90179-06043
90460-62033
90461-08449
90461-08943
90461-10585
90464-00082
90480-01100
90480-07454
90541-06009
90949-01068
91611-40812
91611-40814
91611-40816
91651-40616
91651-40816
91651-41020
91656-61030
91666-40616
93319-14010
93385-15016
93385-16014
94110-41000
94120-41000
96112-10240
96132-30400
96132-30600
96132-30800
96221-20905
96221-20906
