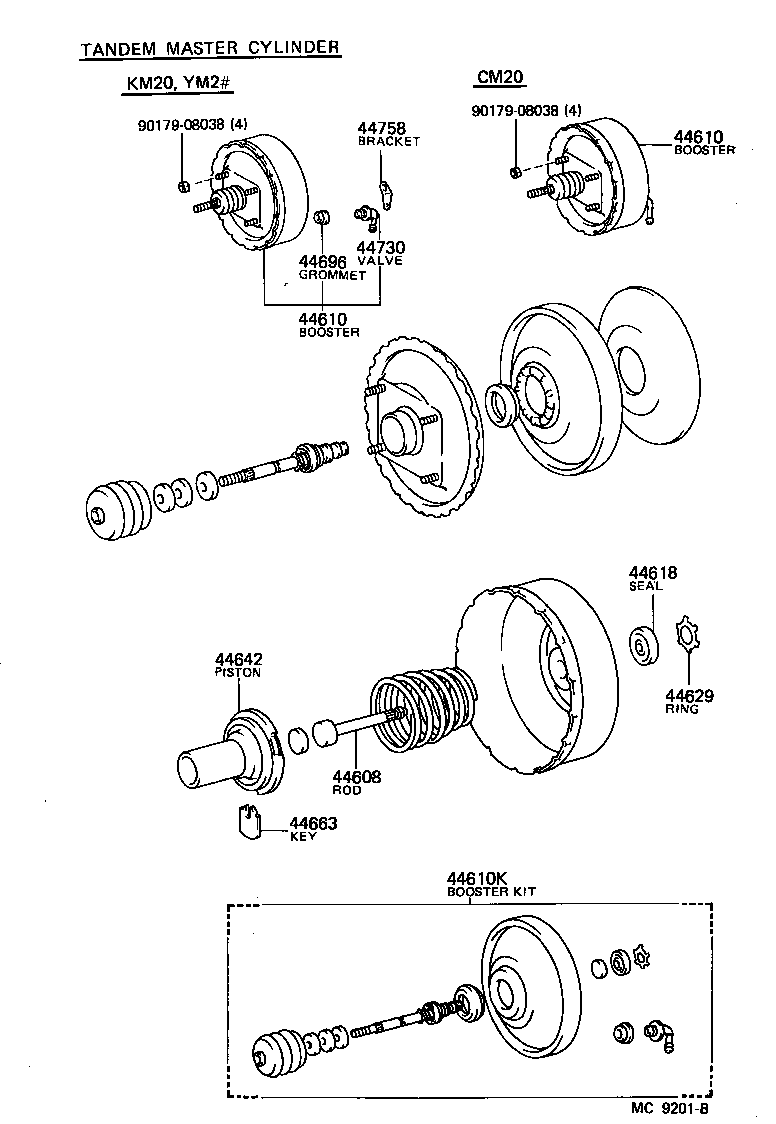

KM20RV-JRZQ (1982)
Toyota Liteace
(7910-8210)RHD ; (8210- )RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
KM20..RHD |
1 | ||
| 44606-12520 |
CM20,KM20,YM2#..RHD TANDEM M/C |
1 | ||
| 44606-32010 |
CM20,KM20,YM2#..RHD TANDEM M/C |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27020 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISK BRAKE |
1 | ||
| 44610-27050 |
KM20..RHD 7.5INCHES,FR DRUM BRAKE |
1 | ||
| 44610-27130 |
KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-12190 |
KM20..RHD 7.5INCHES |
1 | ||
| 04443-27020 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISC BRAKE |
1 | ||
| 04443-27100 |
KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
KM20..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
KM20..RHD 7.5INCHES |
1 | ||
| 44642-20140 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISC BRAKE |
1 | ||
| 44642-16050 |
CM20,KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
KM20..RHD |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
KM20..WG;CM20,KM20..RHD |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
KM20..RHD |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
KM20..RHD |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
KM20..RHD |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
KM20..RHD |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
KM20..RHD |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-27050 |
KM20..RHD 7.5INCHES,FR DRUM BRAKE |
1 | ||
| 44607-22330 |
KM20..RHD..09S;KM20..RHD..(ARL,EUR) 7.5INCHES,FR DISC BRAKE |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
KM20..RHD |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
KM20..RHD 7.5INCHES |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
KM20..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
KM20..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
KM20..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20051 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) 7.5INCHES BOOSTER |
1 | ||
| 44758-27060 |
YM21;KM20,YM20..BUS,V 8INCHES BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(8210- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
KM20..RHD |
1 | ||
| 44606-12520 |
CM20,KM20,YM2#..RHD TANDEM M/C |
1 | ||
| 44606-32010 |
CM20,KM20,YM2#..RHD TANDEM M/C |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27020 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISK BRAKE |
1 | ||
| 44610-27050 |
KM20..RHD 7.5INCHES,FR DRUM BRAKE |
1 | ||
| 44610-27130 |
KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27020 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISK BRAKE |
1 | ||
| 44610-27050 |
KM20..RHD 7.5INCHES,FR DRUM BRAKE |
1 | ||
| 44610-27130 |
KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-12190 |
KM20..RHD 7.5INCHES |
1 | ||
| 04443-27020 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISC BRAKE |
1 | ||
| 04443-27100 |
KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CM20,KM20,YM2#..RHD |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
CM20,KM20,YM2#..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
KM20..RHD 7.5INCHES |
1 | ||
| 44642-20140 |
KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S) 7.5INCHES,FR DISC BRAKE |
1 | ||
| 44642-16050 |
CM20,KM20,YM2#..RHD TANDEM M/C,FR DISC BRAKE |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
CM20,KM20,YM2#..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
KM20..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
KM20..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20051 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) 7.5INCHES BOOSTER |
1 | ||
| 44758-27060 |
YM21;KM20,YM20..BUS,V 8INCHES BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
