KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101-8210)RHD..HRF,SRF..GEN

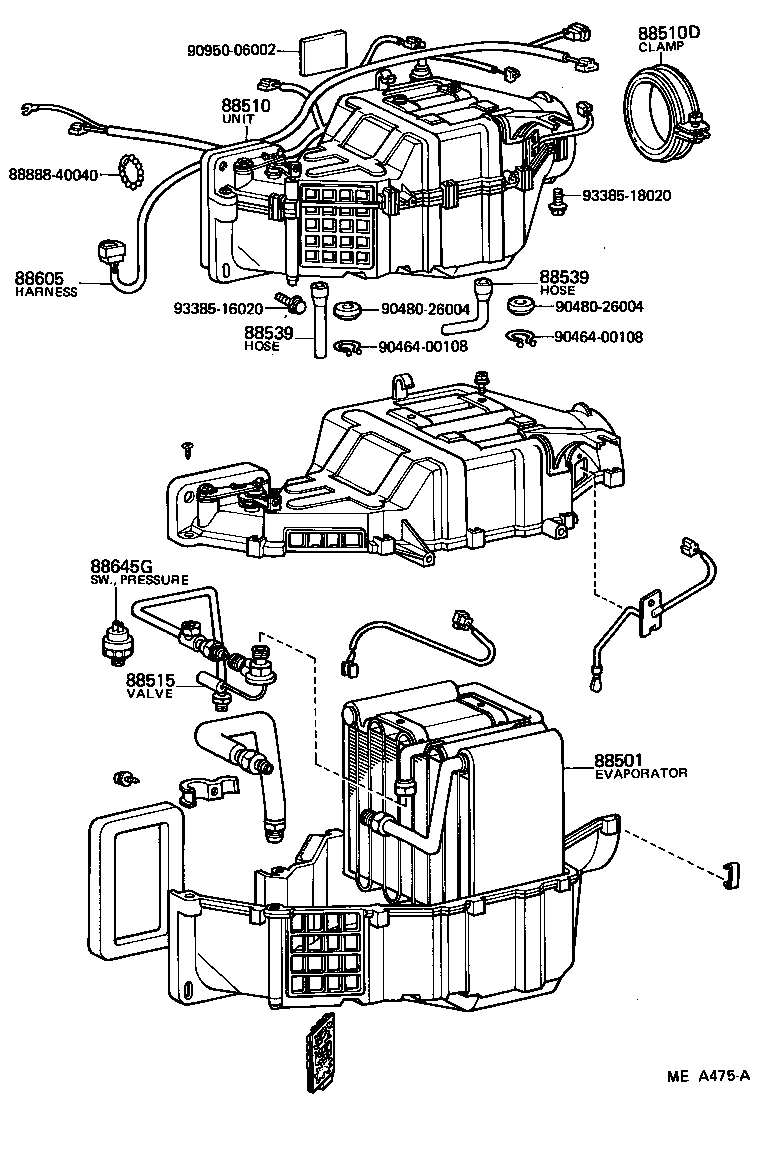

Click highlighted areas on diagram

diagram 88501 88510 88510D 88515 88539 88539 88605 88645G 8888840040 9046400108 9046400108 9048026004 9048026004 9095006002 9338516020 9338518020
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95700

KM20..RHD..(HRF,SRF)..GEN

 1
88510 - UNIT ASSY, COOLER
88510-95707

KM20..(HRF,SRF)..GEN

 1
88510D - CLAMP, COOLER UNIT
88894-22040

KM20..(HRF,SRF)..GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

KM20..(HRF,SRF)..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95700

KM20..(HRF,SRF)..GEN

 2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95700

KM20..(HRF,SRF)..GEN

 2
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95700

KM20..(HRF,SRF)..GEN

 1
88645G - SWITCH, PRESSURE
88645-30250

KM20..(HRF,SRF)..GEN

DENSO

 1
88645-22020

KM20..(HRF,SRF)..GEN

TOKAIRIKA

 1
Common parts
88888-40040
90464-00108
90480-26004
90950-06002
93385-16020
93385-18020
