KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )GEN

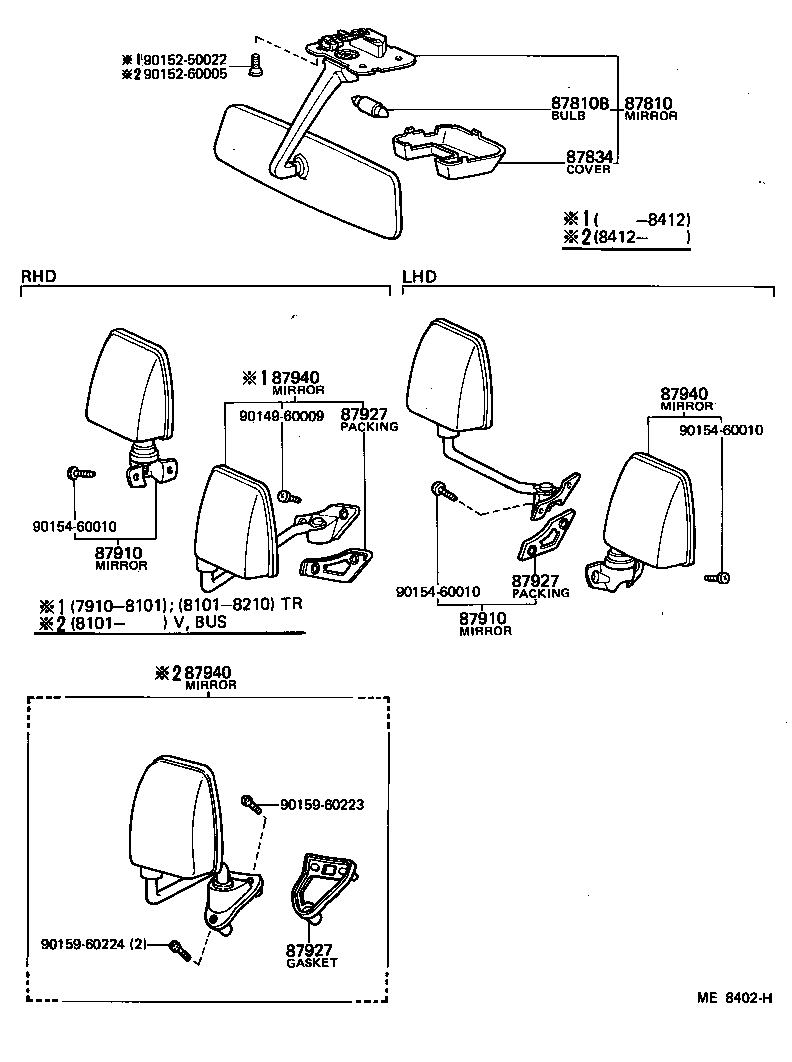

Click highlighted areas on diagram

diagram 87810 87810B 87834 87910 87910 87927 87927 87927 87940 87940 87940 9014960009 9015250022 9015260005 9015460010 9015460010 9015460010 9015960223 9015960224
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95701

KM20..ARL,GEN

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

CM20,KM20,YM2#

12V 10W,12V 10W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

CM20,KM20,YM2#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29385

CM20,KM20,YM20..RHD..GEN

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29385

CM20,KM20,YM20..RHD..GEN

 1
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87956-95700

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
87956-95701

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
87926-95702

KM20..RHD..(ARL,GEN)

 1
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87956-95700

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
87956-95701

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
87926-95702

KM20..RHD..(ARL,GEN)

 1
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87956-95700

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
87956-95701

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
87926-95702

KM20..RHD..(ARL,GEN)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29645

KM20..RHD..(HRF,SRF)..GEN

 1
87940-29405

KM20..RHD..GEN

 1
87940-29646

KM20..RHD..(HRF,SRF)..GEN

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29645

KM20..RHD..(HRF,SRF)..GEN

 1
87940-29405

KM20..RHD..GEN

 1
87940-29646

KM20..RHD..(HRF,SRF)..GEN

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29645

KM20..RHD..(HRF,SRF)..GEN

 1
87940-29405

KM20..RHD..GEN

 1
87940-29646

KM20..RHD..(HRF,SRF)..GEN

 1
Common parts
90149-60009
90152-50022
90152-60005
90154-60010
90159-60223
90159-60224
