KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )CM20,YM2#..V4D ; (7910- )KM20..05S..EUR ; (7910- )KM20..02S,03S,06

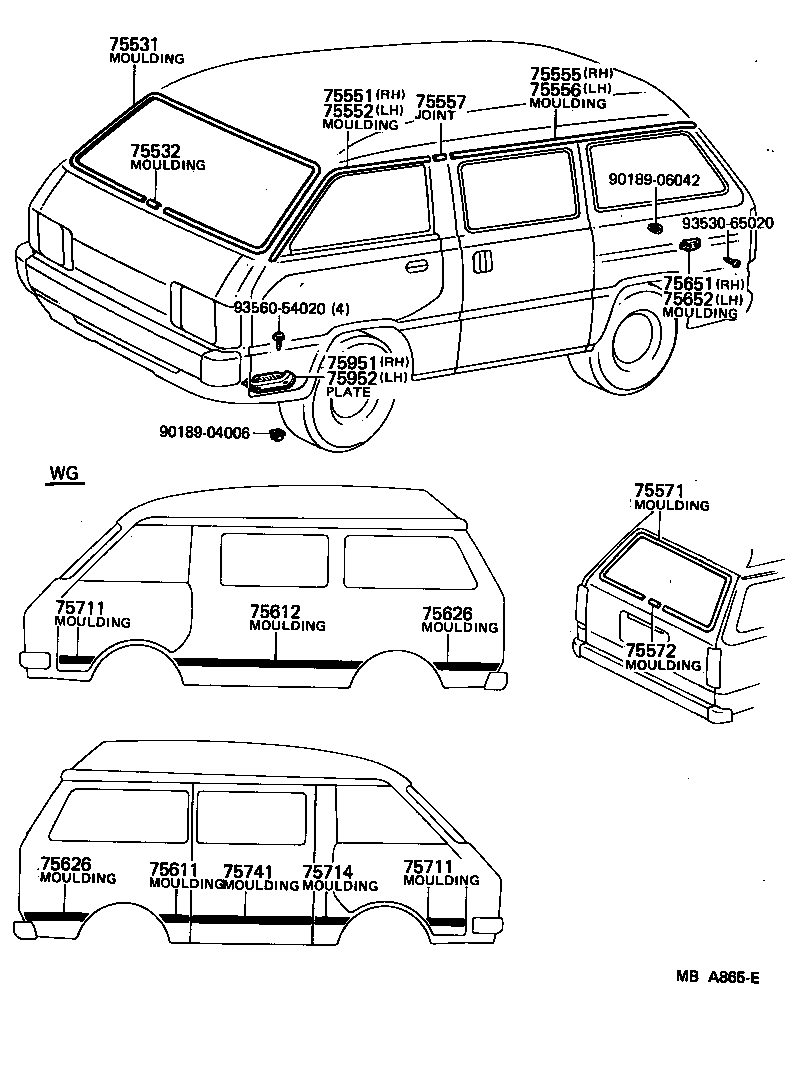

Click highlighted areas on diagram

diagram 75531 75532 75551 75552 75555 75556 75557 75571 75572 75611 75612 75626 75626 75651 75652 75711 75711 75714 75741 75951 75952 9018904006 9018906042 9353065020 9356054020
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-95701

CM20,KM20,YM20..HRF,SRF

 1
75532 - MOULDING, WINDSHIELD, LOWER
75532-95A00

CM20,KM20,YM20..HRF,SRF

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-95701

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-95701

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
75555 - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-95700

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
75556 - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-95700

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
75557 - JOINT, ROOF DRIP SIDE FINISH MOULDING
75555-95700

CM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 2
75652 - MOULDING, QUARTER, OUTSIDE LH
75363-95790

CM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-9570106

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-9570106

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

BROWN,BROWN

 1
Common parts
90189-04006
90189-06042
93530-65020
93560-54020
