KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

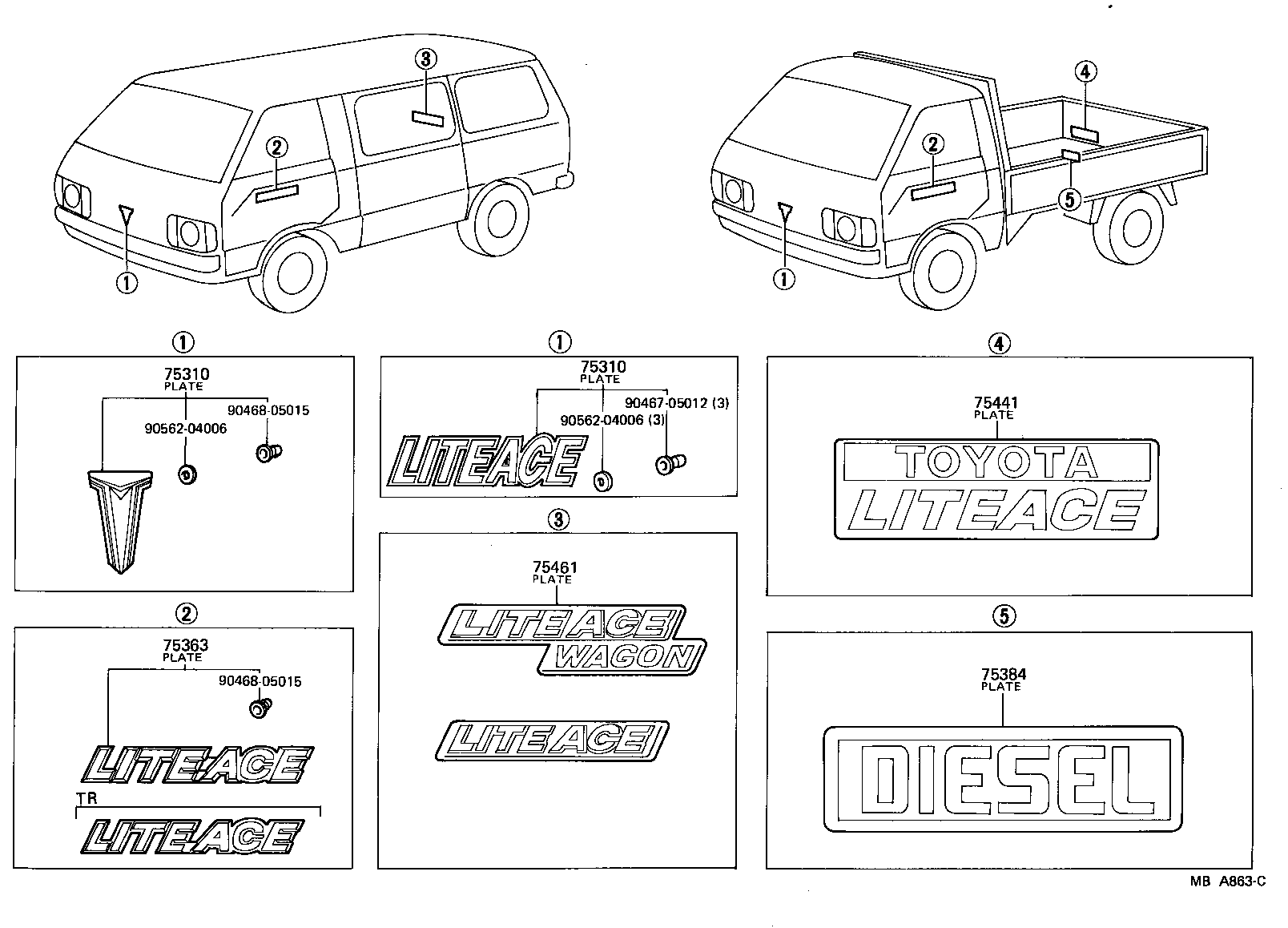

Click highlighted areas on diagram

diagram 75310 75310 75363 75384 75441 75461 9046705012 9046805015 9046805015 9056204006 9056204006
Part # Description Qty Price
75310 - PLATE ASSY, FRONT PANEL
75311-95701

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
75310 - PLATE ASSY, FRONT PANEL
75311-95701

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
75363 - PLATE, DOOR NAME
75361-95704

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

LITEACE

 2
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75366-95705

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S)

LITEACE

 1
Common parts
90467-05012
90468-05015
90562-04006
