KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )KM20 ; (8311- )YM2#..V4D

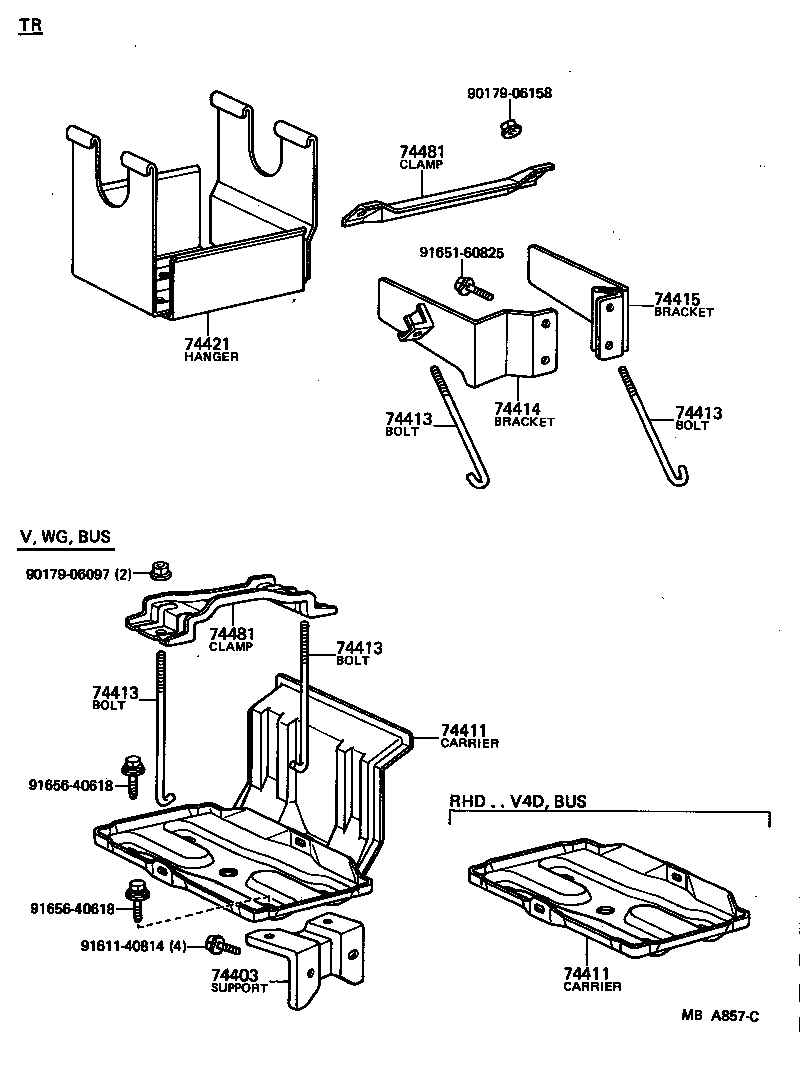

Click highlighted areas on diagram

diagram 74403 74411 74411 74413 74413 74413 74413 74414 74415 74421 74481 74481 9017906097 9017906158 9161140814 9165160825 9165640618 9165640618
Part # Description Qty Price
74403 - SUPPORT SUB-ASSY, BATTERY CARRIER
74403-95700

KM20..HRF,SRF

 1
74411 - CARRIER, BATTERY
74411-95702

KM20..RHD..V4D..GEN;KM20,YM2#..RHD..(02S,05S,09S)

 1
74411 - CARRIER, BATTERY
74411-95702

KM20..RHD..V4D..GEN;KM20,YM2#..RHD..(02S,05S,09S)

 1
74413 - BOLT, BATTERY CLAMP
74451-95700

KM20..HRF,SRF

 2
74413 - BOLT, BATTERY CLAMP
74451-95700

KM20..HRF,SRF

 2
74413 - BOLT, BATTERY CLAMP
74451-95700

KM20..HRF,SRF

 2
74413 - BOLT, BATTERY CLAMP
74451-95700

KM20..HRF,SRF

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-95702

KM20,YM2#..HRF,SRF

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-95702

KM20,YM2#..HRF,SRF

 1
Common parts
90179-06097
90179-06158
91611-40814
91651-60825
91656-40618
