KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

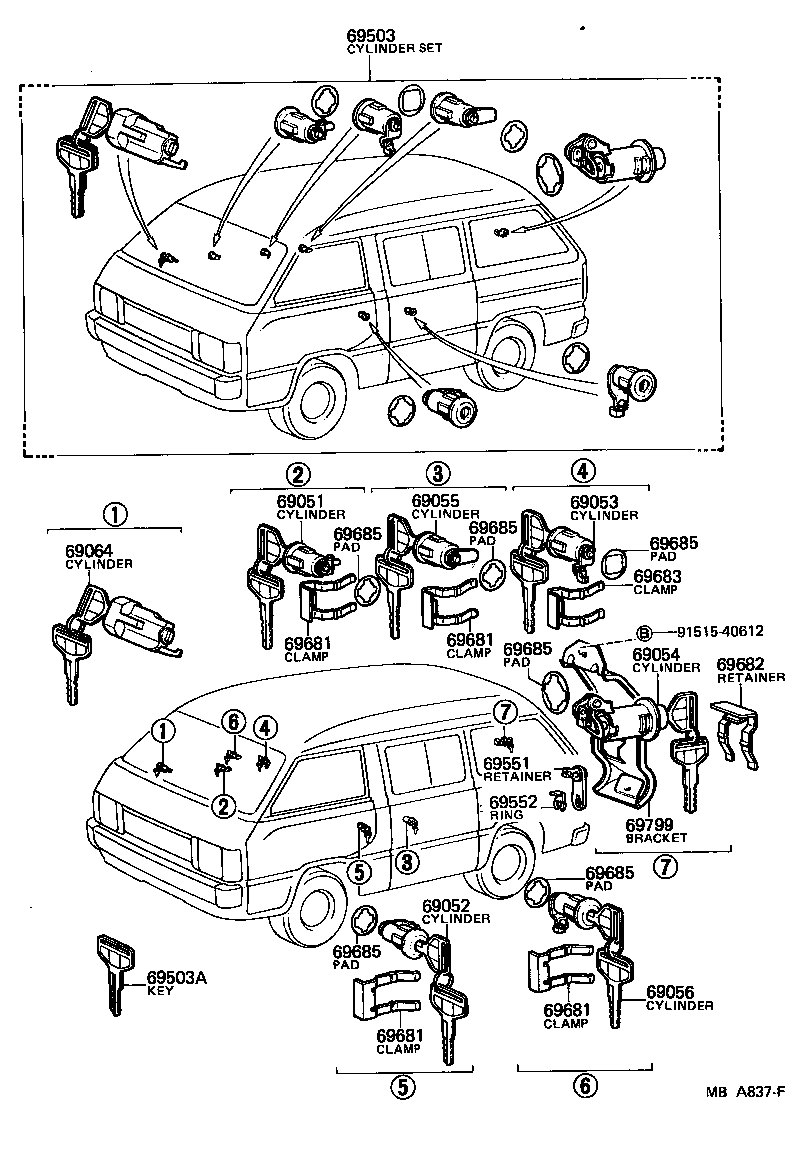

Click highlighted areas on diagram

diagram 69051 69052 69053 69054 69055 69056 69064 69503 69503A 69551 69552 69681 69681 69681 69681 69682 69683 69685 69685 69685 69685 69685 69685 69799 9151540612
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95012

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95012

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69058-95701

KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)

 1
69058-19065

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
69058-19065

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95701

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
69055 - CYLINDER & KEY SET, REAR DOOR LOCK, LH
69054-95701

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95701

KM20..RHD

 1
69503 - CYLINDER SET, LOCK
69503-95710

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
69503A - KEY, BLANK
90999-00066

CM20,KM20,YM2#

MASTER KEY

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 3
69683 - CLAMP, FUEL LOCK CYLINDER
69681-95402

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
69799 - BRACKET, BACK DOOR LOCK CYLINDER
69709-95700

CM20,KM20,YM2#..HRF,SRF

 1
Common parts
91515-40612
