KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

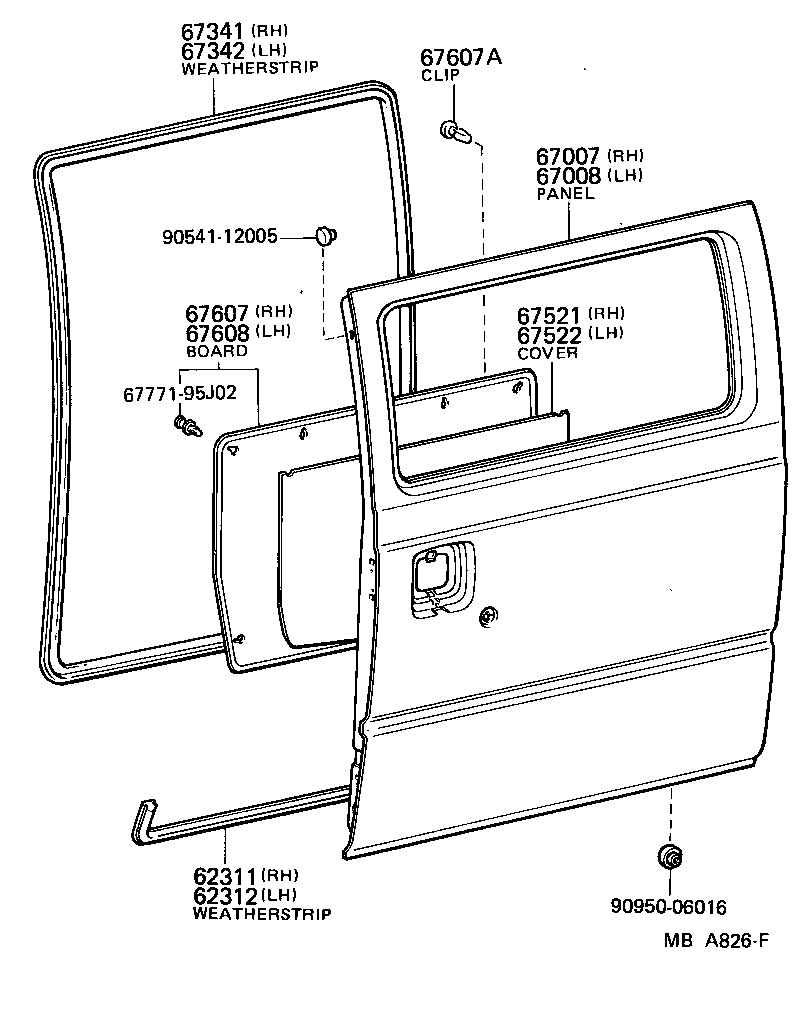

Click highlighted areas on diagram

diagram 62311 62312 67007 67008 67341 67342 67521 67522 67607 67607A 67608 6777195J02 9054112005 9095006016
Part # Description Qty Price
62312 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER LH
62344-95703

KM20..RHD..V4D

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-95705

KM20..RHD..V4D..VSP

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
62342-95701

CM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67833-95700

CM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
67608 - BOARD SUB-ASSY, SLIDE DOOR TRIM, LH
67640-95705

KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)

 1
Common parts
67771-95J02
90541-12005
90950-06016
