KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

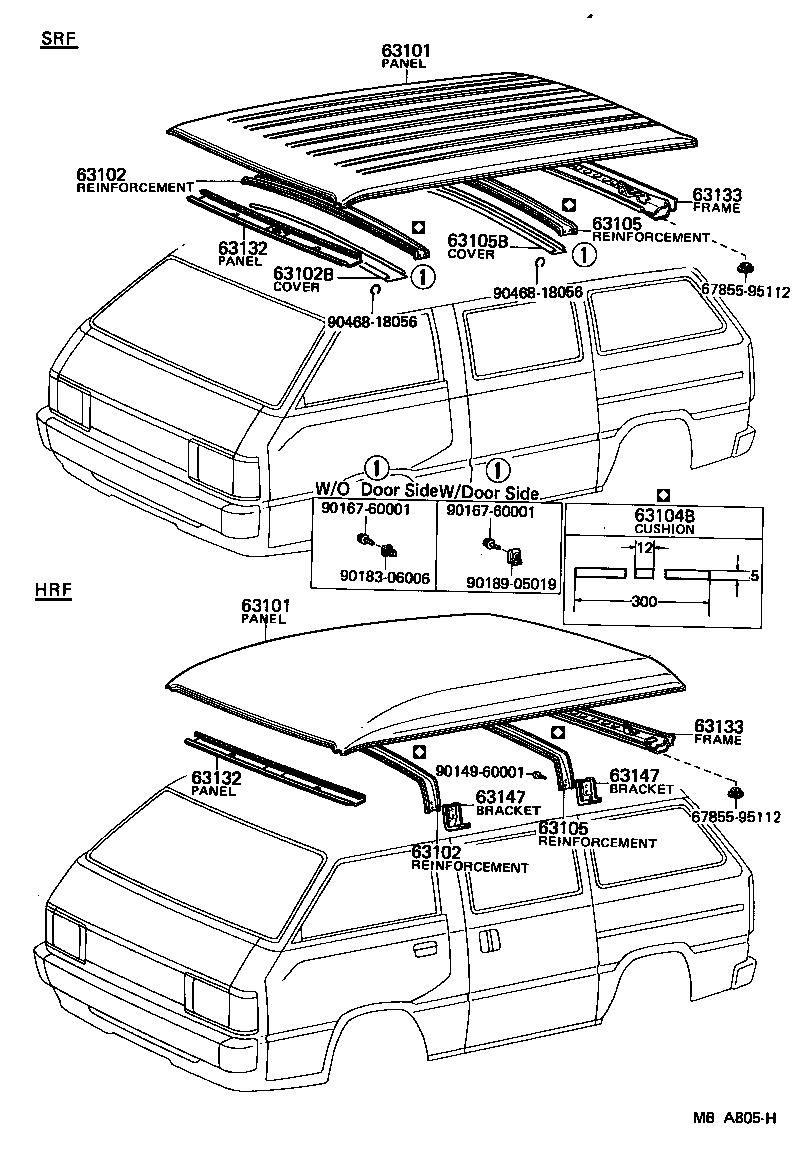

Click highlighted areas on diagram

diagram 63101 63101 63102 63102 63102B 63104B 63105 63105 63105B 63132 63132 63133 63133 63147 63147 6785595112 6785595112 9014960001 9016760001 9016760001 9018306006 9018905019 9046818056 9046818056
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95705

CM20,KM20..HRF

 1
63101 - PANEL SUB-ASSY, ROOF
63111-95705

CM20,KM20..HRF

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63143-95705

CM20,KM20..HRF

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63143-95705

CM20,KM20..HRF

 1
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63147-95A00

KM20..RHD..V..GEN

 6
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63104-95702

CM20,KM20..HRF..STD

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63104-95702

CM20,KM20..HRF..STD

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95702

KM20..RHD..(EUR,GEN)

W/VISOR=DRIVER ONLY

 1
63103-95703

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

W/VISOR=DRIVER,PASSENGER

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95702

KM20..RHD..(EUR,GEN)

W/VISOR=DRIVER ONLY

 1
63103-95703

KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

W/VISOR=DRIVER,PASSENGER

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63106-95701

CM20,KM20..HRF

 1
63106-95700

KM20..RHD..HRF..GEN

W/O ROOF SILENCER NO.2,NO.3

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63106-95701

CM20,KM20..HRF

 1
63106-95700

KM20..RHD..HRF..GEN

W/O ROOF SILENCER NO.2,NO.3

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63155-95700

CM20,KM20..HRF

 4
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63155-95700

CM20,KM20..HRF

 4
Common parts
67855-95112
90149-60001
90167-60001
90183-06006
90189-05019
90468-18056
