KM20RV-JRZBE (1979)
Toyota Liteace

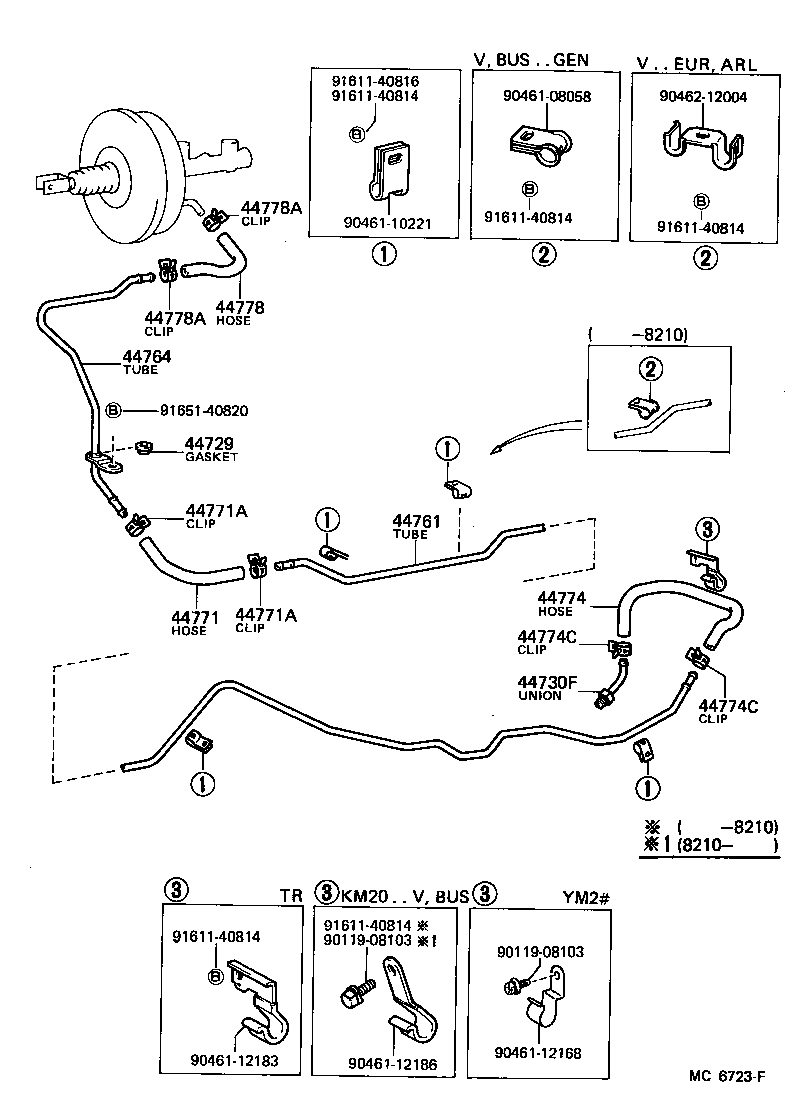

(7910- )KM20,YM2#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
CM20,KM20,YM2# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51004 |
KM20..RHD |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-27030 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 44761-27030 |
KM20..ARL,GEN |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-27031 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 44764-27030 |
KM20..RHD..V |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27020 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-27040 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16141 |
KM20,YM2# |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16141 |
KM20,YM2# |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-27010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
2 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90461-08058 | ||||
| 90461-10221 | ||||
| 90461-12168 | ||||
| 90461-12183 | ||||
| 90461-12186 | ||||
| 90462-12004 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91651-40820 | ||||

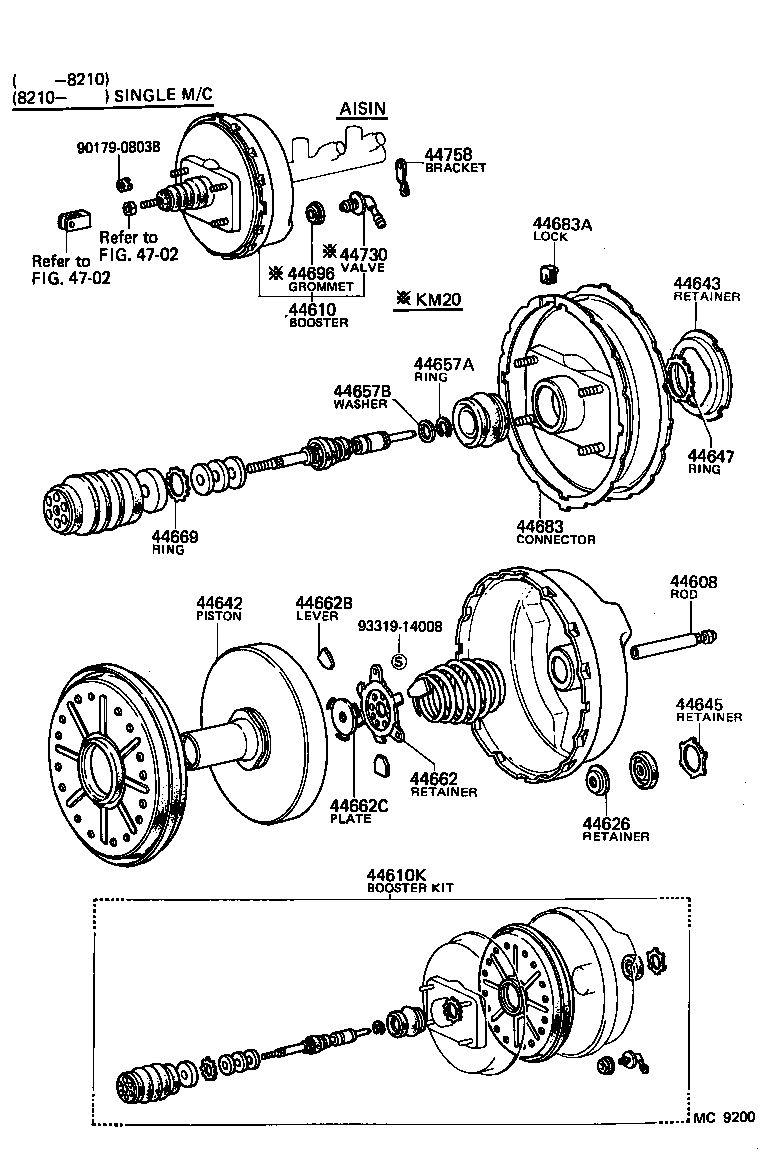

(7910-8210)RHD ; (8210- )RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
KM20..RHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27050 |
KM20..RHD 7.5INCHES,FR DRUM BRAKE |
1 | ||
| 44610-27060 |
KM20..RHD..GEN 6INCHES |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-12190 |
KM20..RHD 7.5INCHES |
1 | ||
| 04443-27040 |
KM20..RHD..GEN 6INCHES |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
KM20..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
KM20..RHD 7.5INCHES |
1 | ||
| 44642-14190 |
CM20,KM20..RHD..GEN 6INCHES,SINGLE M/C |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
KM20..RHD |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
KM20..WG;CM20,KM20..RHD |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
KM20..RHD |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
KM20..RHD |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
KM20..RHD |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
KM20..RHD |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
KM20..RHD |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-35100 |
CM20,KM20..RHD..GEN 6INCHES |
1 | ||
| 44607-27050 |
KM20..RHD 7.5INCHES,FR DRUM BRAKE |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
KM20..RHD |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20100 |
KM20..RHD..GEN 6INCHES |
1 | ||
| 44682-20150 |
KM20..RHD 7.5INCHES |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
KM20..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
KM20..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
KM20..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20051 |
KM20..VSP..02S;KM20..03S,05S,06S,09S 7.5INCHES BOOSTER |
1 | ||
| 44758-20051 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) 7.5INCHES BOOSTER |
1 | ||
| 44758-22030 |
KM20..GEN 6INCHES BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 4702 | ||||
