KM20RV-JRZBE (1979)
Toyota Liteace
(7910- )GEN

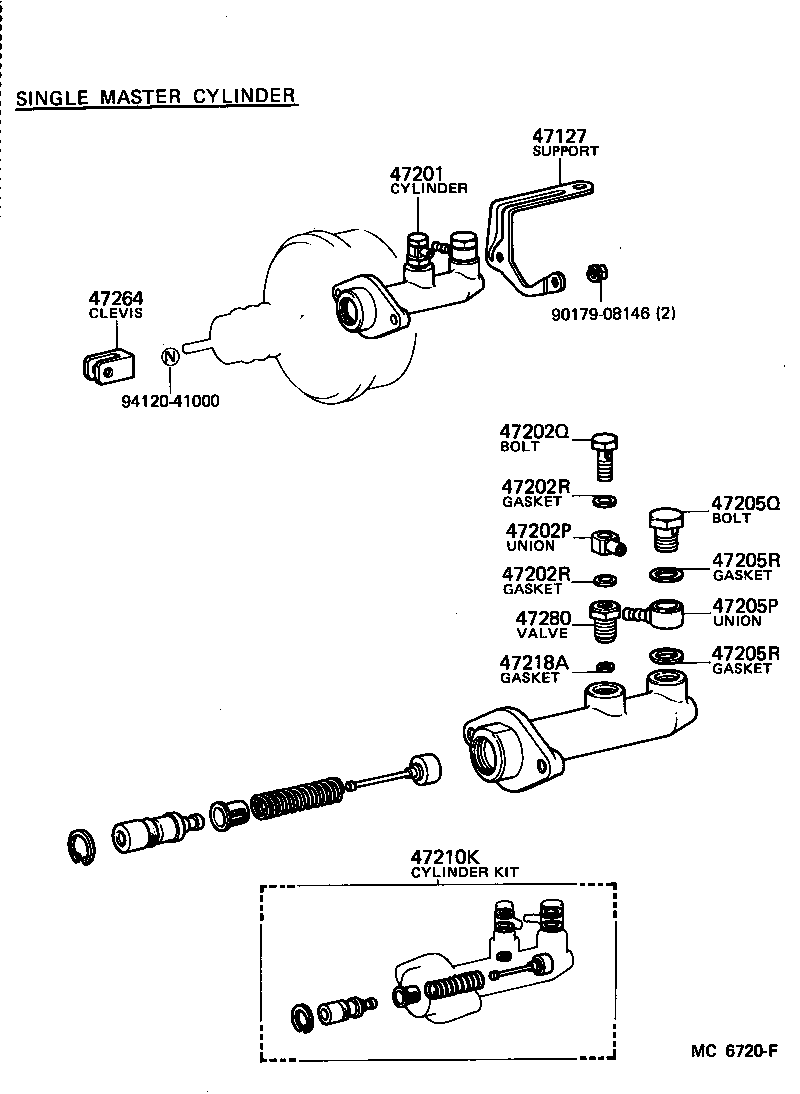

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47127 - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95703 |
KM20..RHD |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S TANDEM CYLINDER,DRUM BRAKE |
1 | ||
| 47201-27030 |
CM20,KM20..GEN SINGLE CYLINDER |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10073 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90405-10003 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-10037 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90401-16002 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-10074 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
2 | ||
| 90430-16242 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-10074 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
2 | ||
| 90430-16242 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-10003 |
CM20,KM20,YM2# |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
CM20,KM20,YM2# |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CM20,KM20,YM2# |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CM20,KM20,YM2# |
2 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-27030 |
KM20..VSP..02S;KM20..03S,05S,06S,09S TANDEM CYLINDER,DRUM BRAKE |
1 | ||
| 04471-27020 |
CM20,KM20..GEN SINGLE CYLINDER |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
CM20,KM20,YM2# |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
CM20,KM20,YM2# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26030 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
1 | ||
| 47280-12030 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
(7910-8210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47127 - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95703 |
KM20..RHD |
1 | ||
| 47127 - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95703 |
KM20..RHD |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S TANDEM CYLINDER,DRUM BRAKE |
1 | ||
| 47201-27030 |
CM20,KM20..GEN SINGLE CYLINDER |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-27020 |
KM20..VSP..02S;KM20..03S,05S,06S,09S TANDEM CYLINDER,DRUM BRAKE |
1 | ||
| 47201-27030 |
CM20,KM20..GEN SINGLE CYLINDER |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10073 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90405-10003 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-10037 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| 90401-16002 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-10074 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
2 | ||
| 90430-16242 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-10074 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
2 | ||
| 90430-16242 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-10003 |
CM20,KM20,YM2# |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16002 |
CM20,KM20,YM2# |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CM20,KM20,YM2# |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16242 |
CM20,KM20,YM2# |
2 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
CM20,KM20,YM2# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-27030 |
KM20..VSP..02S;KM20..03S,05S,06S,09S TANDEM CYLINDER,DRUM BRAKE |
1 | ||
| 04471-27020 |
CM20,KM20..GEN SINGLE CYLINDER |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
CM20,KM20,YM2# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
CM20,KM20,YM2# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
CM20,KM20,YM2# |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
CM20,KM20,YM2# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-14011 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26030 |
CM20,KM20,YM2# TANDEM MASTER CYLINDER |
1 | ||
| 47280-12030 |
CM20,KM20..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-26030 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||

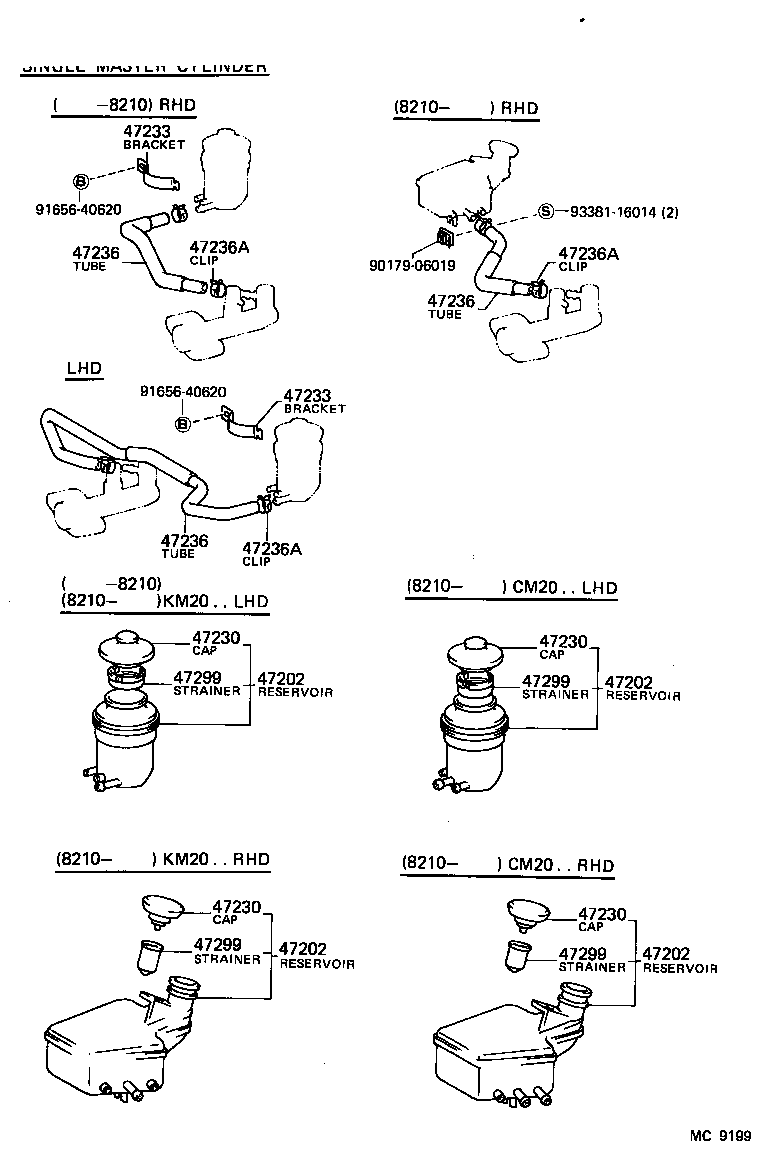

(7910- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-95600 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-27040 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47234-27020 |
KM20..RHD TANDEM MASTER CYLINDER |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-27040 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47234-27020 |
KM20..RHD TANDEM MASTER CYLINDER |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47237 - TUBE, RESERVOIR, NO.2 | ||||
| 47235-27030 |
KM20..RHD |
1 | ||
| 47237 - TUBE, RESERVOIR, NO.2 | ||||
| 47235-27030 |
KM20..RHD |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 91656-40620 | ||||
| 93381-16014 | ||||
(7910- )GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-27040 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27041 |
KM20..GEN TANDEM M/C |
1 | ||
| 47220-27020 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27022 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27021 |
KM20..GEN SINGLE M/C |
1 | ||
| 47220-27042 |
KM20..GEN TANDEM M/C |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47230-25020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-95600 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-95600 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-27040 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47234-27020 |
KM20..RHD TANDEM MASTER CYLINDER |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-27040 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47234-27020 |
KM20..RHD TANDEM MASTER CYLINDER |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-27040 |
KM20..RHD..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47234-27020 |
KM20..RHD TANDEM MASTER CYLINDER |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
CM20,KM20,YM2# |
4 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 47299-25010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 91656-40620 | ||||
| 93381-16014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
