KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4F,4H

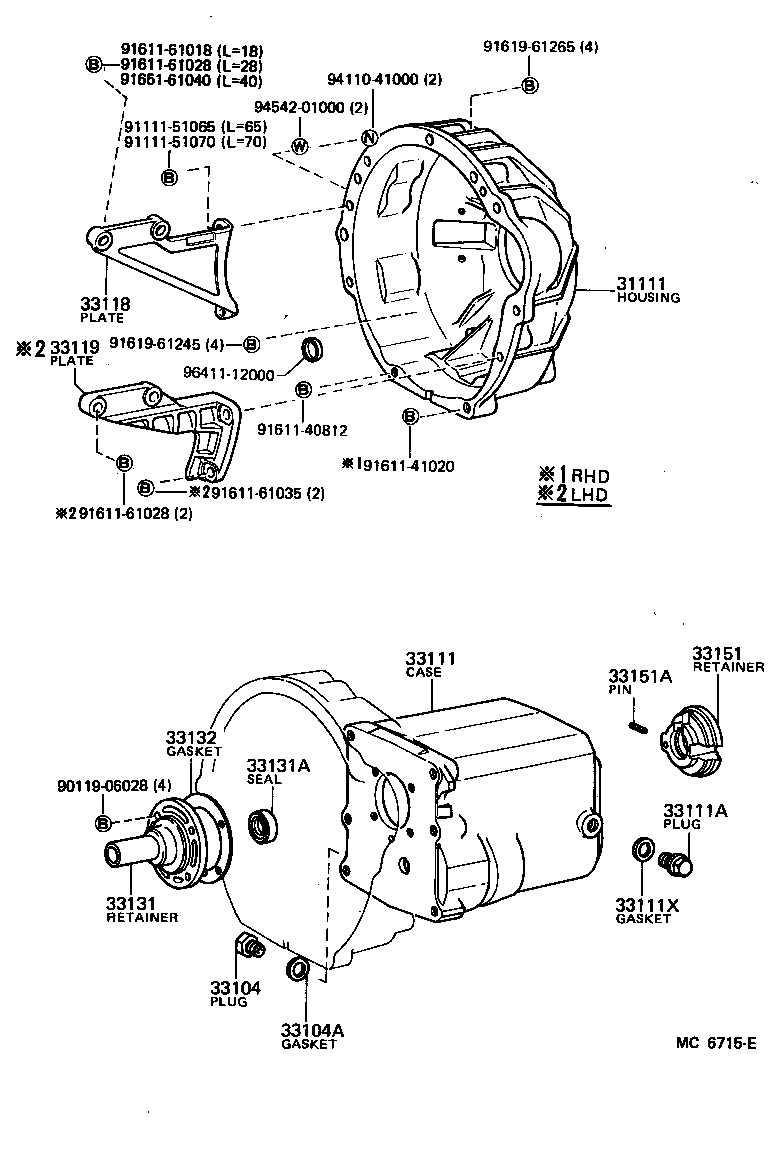

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111X 33118 33119 33131 33131A 33132 33151 33151A 9011906028 9111151065 9111151070 9161140812 9161141020 9161161018 9161161028 9161161028 9161161035 9161961245 9161961265 9165161040 9411041000 9454201000 9641112000
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-27020

KM20

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CM20,YM21..MTM;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
33111 - CASE, MANUAL TRANSMISSION
33111-35031

CM20,KM20..4F,4H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

CM20..GEN;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-12050

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-20050

CM20,KM20..4F,4H

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106

CM20,KM20..4F,4H

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-30030

CM20,KM20..4F,4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-26010

CM20,KM20..4F,4H

 1
33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI
90254-05005

CM20,KM20..4F,4H

 1
Common parts
90119-06028
91111-51065
91111-51070
91611-40812
91611-41020
91611-61018
91611-61028
91611-61035
91619-61245
91619-61265
91651-61040
94110-41000
94542-01000
96411-12000
