KM20RV-JRZBE (1979)
Toyota Liteace
Production
Oct 1979
-
Oct 1982
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7910- )4K
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06040 |
4K..KM20..RHD..(HRF,SRF) *H,L=380 |
1 | ||
| 95332-06040 |
4K..KM20..RHD *H,L=360 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06040 |
4K..KM20..RHD..(HRF,SRF) *H,L=380 |
1 | ||
| 95332-06040 |
4K..KM20..RHD *H,L=360 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-13040 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
4 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95332-06010 |
4K..KM20 *H,L=70 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 90461-08532 |
4K..KM20 |
1 | ||
| Common parts | ||||
| 90464-00090 | ||||

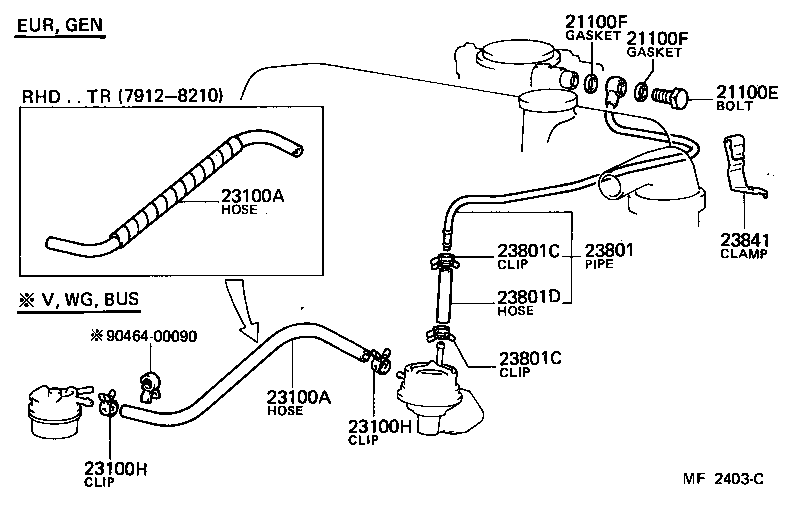

(7910- )4K
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100E - BOLT, CARBURETOR TO CARBURETOR HOSE UNION | ||||
| 90401-12097 |
4K..KM20..EUR,GEN |
1 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 90430-12005 |
4K..KM20..EUR,GEN |
2 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 90430-12005 |
4K..KM20..EUR,GEN |
2 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06040 |
4K..KM20..RHD..(HRF,SRF) *H,L=380 |
1 | ||
| 95332-06040 |
4K..KM20..RHD *H,L=360 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06040 |
4K..KM20..RHD..(HRF,SRF) *H,L=380 |
1 | ||
| 95332-06040 |
4K..KM20..RHD *H,L=360 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-13040 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4K..KM20 |
4 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95332-06010 |
4K..KM20 *H,L=70 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 90461-08532 |
4K..KM20 |
1 | ||
| Common parts | ||||
| 90464-00090 | ||||
