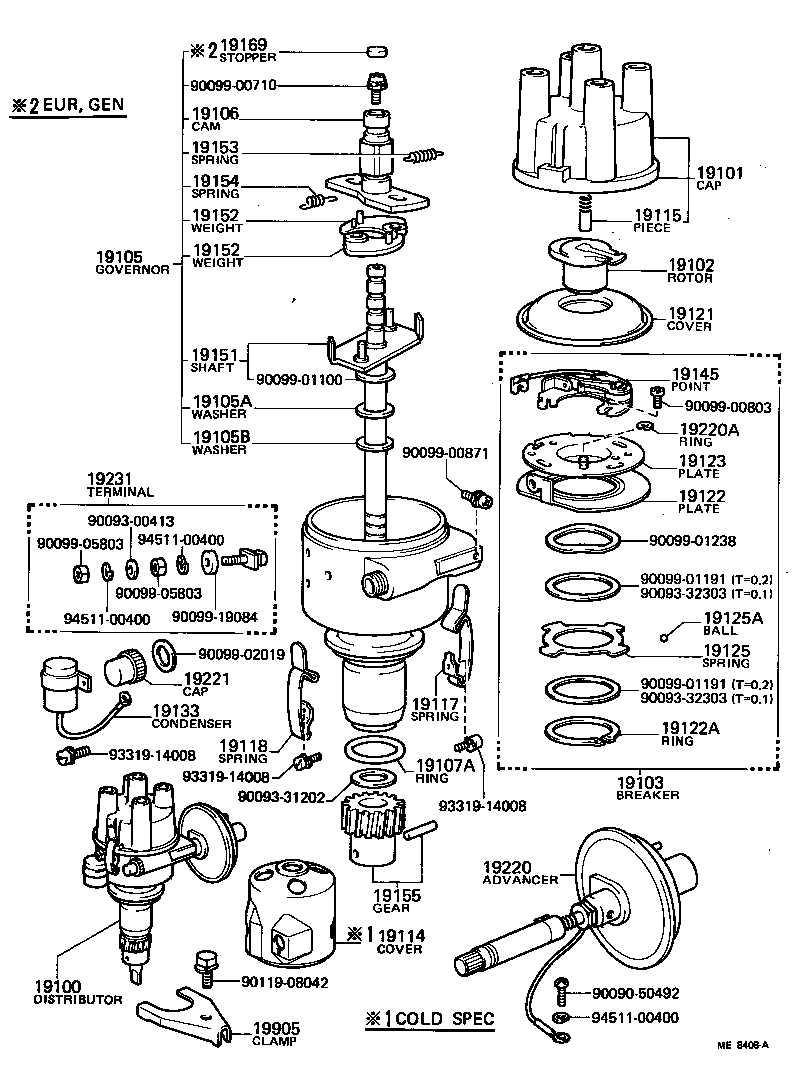

KM20RV-JRZBE (1979)
Toyota Liteace
(7910-8108) ; (8108-8210)4K..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-13080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19100-13250 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19100-13110 |
4K..KM20..GEN |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-31013 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19101-31013 |
4K..KM20..ARL,GEN |
1 | ||
| 19101-25070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-24121 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19102-26150 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19102-22012 |
4K..KM20..ARL,GEN |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-22011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19103-22011 |
4K..KM20..ARL,GEN |
1 | ||
| 19103-13070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-13100 |
4K..KM20..GEN |
1 | ||
| 19105-13140 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01387 |
4K..KM20..RHD..GEN T=2.9,HONG KONG SPEC,T=2.9 |
1 | ||
| 90099-01386 |
4K..KM20..RHD..GEN T=2.7,HONG KONG SPEC,T=2.7 |
1 | ||
| 90099-01412 |
4K..KM20..RHD..GEN T=2.3,HONG KONG SPEC,T=2.3 |
1 | ||
| 90099-02093 |
4K..KM20..ARL,GEN T=0.8 |
1 | ||
| 90099-01385 |
4K..KM20..RHD..GEN T=2.5,HONG KONG SPEC,T=2.5 |
1 | ||
| 90099-02093 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) T=0.8 |
1 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90093-31204 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) T=0.1 |
1 | ||
| 90093-31202 |
4K..KM20..ARL,GEN |
1 | ||
| 90093-31202 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 90093-31204 |
4K..KM20..ARL,GEN T=0.1 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-40021 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19106-33021 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19106-24050 |
4K..KM20..GEN |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
4K..KM20 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19117-30030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19118-30030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 19117-24080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19121-10010 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19121-10010 |
4K..KM20..ARL,GEN |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-29021 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19122-13070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19122-29021 |
4K..KM20..ARL,GEN |
1 | ||
| 19122A - RING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 90099-07081 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 90099-07081 |
4K..KM20..ARL,GEN |
1 | ||
| 19123 - PLATE, DISTRIBUTOR BREAKER | ||||
| 19123-41011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19123-41011 |
4K..KM20..ARL,GEN |
1 | ||
| 19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 19125-30010 |
4K..KM20..ARL,GEN |
1 | ||
| 19125-30010 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19125A - BALL, DISTRIBUTOR STATIONARY PLATE | ||||
| 90099-12003 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 90099-12003 |
4K..KM20..ARL,GEN |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52059 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 90099-52060 |
4K..KM20..ARL,GEN |
1 | ||
| 90099-52060 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
4K..KM20 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-24081 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19151-22031 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19151-22031 |
4K..KM20..ARL,GEN |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
4K..KM20..ARL,GEN |
2 | ||
| 19152-45060 |
4K..KM20..RHD..GEN HONG KONG SPEC |
2 | ||
| 19152-87104 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
4K..KM20..ARL,GEN |
2 | ||
| 19152-45060 |
4K..KM20..RHD..GEN HONG KONG SPEC |
2 | ||
| 19152-87104 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13140 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19153-24100 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19153-13100 |
4K..KM20..GEN |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-24100 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19154-13140 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19154-13100 |
4K..KM20..GEN |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-24020 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19195-24081 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19195-24020 |
4K..KM20..ARL,GEN |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-24101 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19220-13100 |
4K..KM20..GEN |
1 | ||
| 19220-13250 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 90099-07104 |
4K..KM20..ARL,GEN |
1 | ||
| 90099-07104 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
4K..KM20..GEN |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-45020 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19231-38011 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19231-45020 |
4K..KM20..ARL,GEN |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-24010 |
4K..KM20..ARL,GEN |
1 | ||
| 19955-24010 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| Common parts | ||||
| 90090-50492 | ||||
| 90093-00413 | ||||
| 90093-31202 | ||||
| 90093-32303 | ||||
| 90099-00710 | ||||
| 90099-00803 | ||||
| 90099-00871 | ||||
| 90099-01100 | ||||
| 90099-01191 | ||||
| 90099-01238 | ||||
| 90099-02019 | ||||
| 90099-05803 | ||||
| 90099-19084 | ||||
| 90119-08042 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
(8108-8202)4K..RHD..GEN ; (8108-8210)4K..EUR ; (8210- )4K..ARL,EUR ; (8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-13080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19100-13250 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19100-13110 |
4K..KM20..GEN |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-31013 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19101-31013 |
4K..KM20..ARL,GEN |
1 | ||
| 19101-25070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-24121 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19102-26150 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19102-22012 |
4K..KM20..ARL,GEN |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-22011 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19103-22011 |
4K..KM20..ARL,GEN |
1 | ||
| 19103-13070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-13100 |
4K..KM20..GEN |
1 | ||
| 19105-13140 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01387 |
4K..KM20..RHD..GEN T=2.9,HONG KONG SPEC,T=2.9 |
1 | ||
| 90099-01386 |
4K..KM20..RHD..GEN T=2.7,HONG KONG SPEC,T=2.7 |
1 | ||
| 90099-01412 |
4K..KM20..RHD..GEN T=2.3,HONG KONG SPEC,T=2.3 |
1 | ||
| 90099-02093 |
4K..KM20..ARL,GEN T=0.8 |
1 | ||
| 90099-01385 |
4K..KM20..RHD..GEN T=2.5,HONG KONG SPEC,T=2.5 |
1 | ||
| 90099-02093 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) T=0.8 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-40021 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19106-33021 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19106-24050 |
4K..KM20..GEN |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
4K..KM20 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19117-30030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19118-30030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 19117-24080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19121-10010 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19121-10010 |
4K..KM20..ARL,GEN |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-29021 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19122-13070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19122-29021 |
4K..KM20..ARL,GEN |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52059 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 90099-52060 |
4K..KM20..ARL,GEN |
1 | ||
| 90099-52060 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 19135-24080 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
4K..KM20 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-24081 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19151-22031 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19151-22031 |
4K..KM20..ARL,GEN |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
4K..KM20..ARL,GEN |
2 | ||
| 19152-45060 |
4K..KM20..RHD..GEN HONG KONG SPEC |
2 | ||
| 19152-87104 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
4K..KM20..ARL,GEN |
2 | ||
| 19152-45060 |
4K..KM20..RHD..GEN HONG KONG SPEC |
2 | ||
| 19152-87104 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
4K..KM20..RHD..GEN HONG KONG SPEC |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
4K..KM20..RHD..GEN HONG KONG SPEC |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13140 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19153-24100 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19153-13100 |
4K..KM20..GEN |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-24100 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19154-13140 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19154-13100 |
4K..KM20..GEN |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-24020 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19195-24081 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19195-24020 |
4K..KM20..ARL,GEN |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN) |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-24101 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19220-13100 |
4K..KM20..GEN |
1 | ||
| 19220-13250 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-24101 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19220-13100 |
4K..KM20..GEN |
1 | ||
| 19220-13250 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 90099-07104 |
4K..KM20..ARL,GEN |
1 | ||
| 90099-07104 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-25070 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-45020 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 19231-38011 |
4K..KM20..RHD..GEN HONG KONG SPEC |
1 | ||
| 19231-45020 |
4K..KM20..ARL,GEN |
1 | ||
| Common parts | ||||
| 90093-00413 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 90099-05803 | ||||
| 90999-00124 | ||||
| 91651-60822 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
