KM20RV-JRZBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

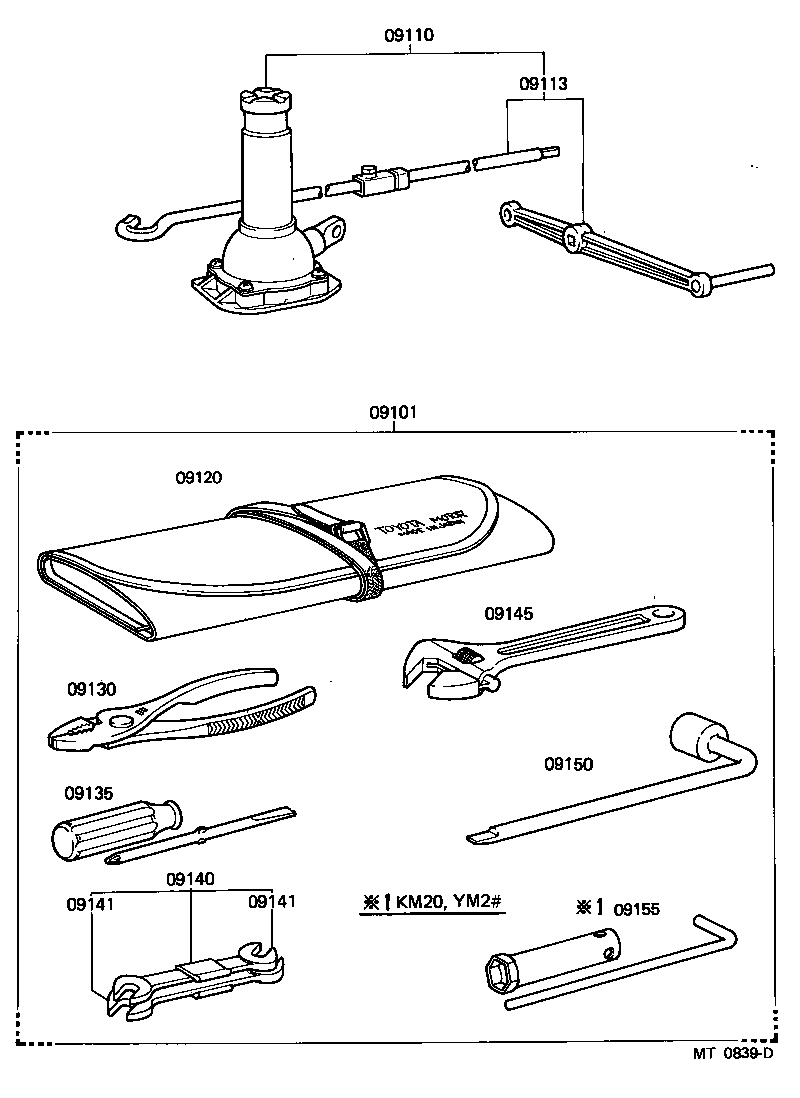

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09140 09141 09141 09145 09150 09155
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-27070

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
09110 - JACK ASSY
09110-27030

CM20,KM20,YM2#

 1
09113 - HANDLE, JACK
09113-27020

CM20,YM21;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
09120 - BAG, TOOL
09120-12011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
09130 - PLIERS
09130-00010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
09135 - DRIVER, SCREW
99915-10700

CM20,KM20,YM2#

 1
09140 - SPANNER SET
09140-27010

CM20,KM20,YM2#

 1
09141 - SPANNER
99914-11417

CM20,KM20,YM2#

14 X 17,14X17

 1
99914-11012

CM20,KM20,YM2#

10 X 12,10X12

 1
09141 - SPANNER
99914-11417

CM20,KM20,YM2#

14 X 17,14X17

 1
99914-11012

CM20,KM20,YM2#

10 X 12,10X12

 1
09145 - WRENCH, MONKEY
99911-10200

CM20,KM20,YM2#

 1
09150 - WRENCH, HUB NUT BOX
09150-00010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
09155 - WRENCH, SPARK PLUG
09155-12010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 1
