KM20RV-JRF (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )CM20,YM2#..RHD ; (7910- )KM20..RHD..V4D..GEN ; (7910- )KM20..RHD..

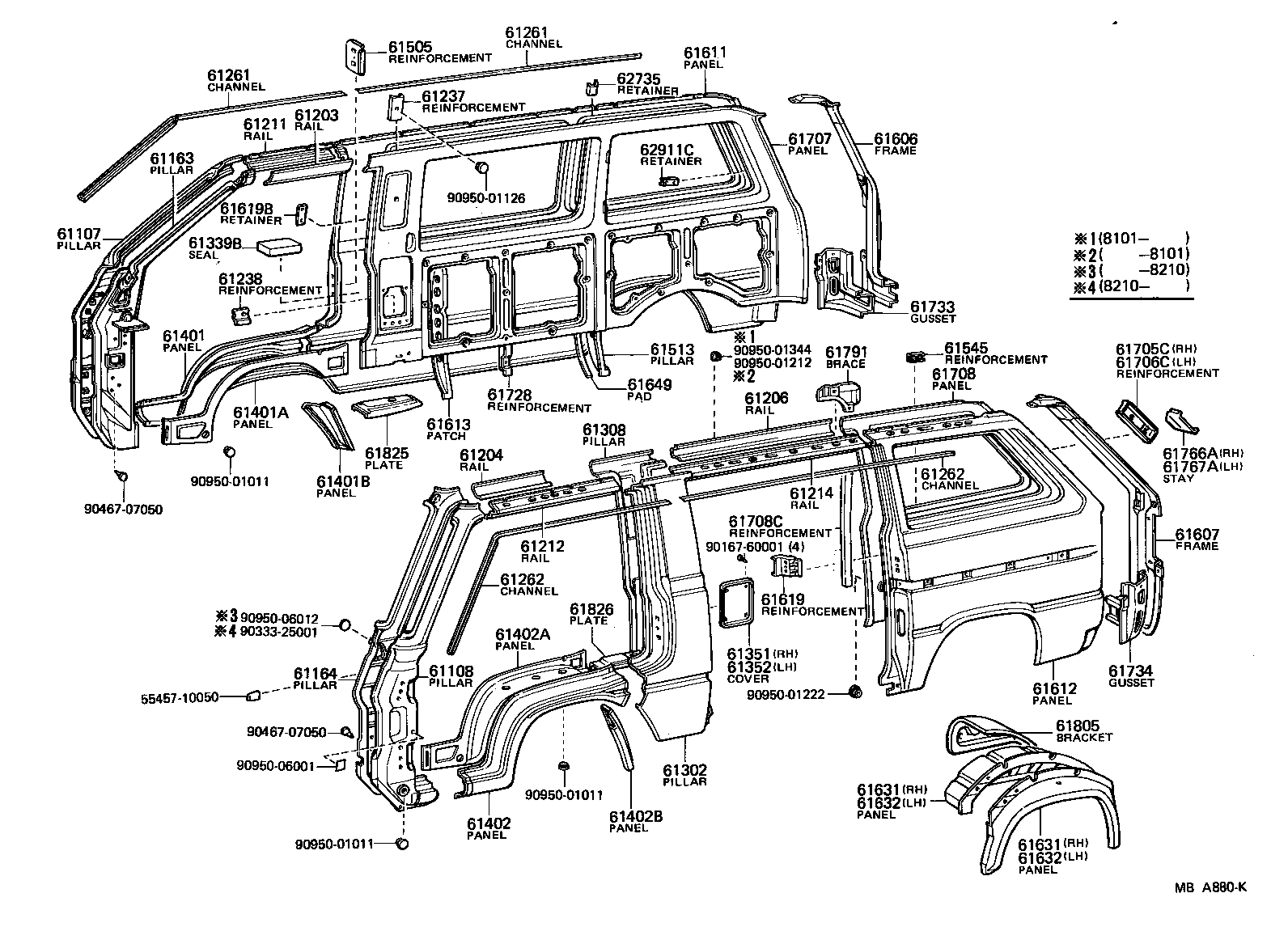

Click highlighted areas on diagram

diagram 5545710050 61107 61108 61163 61164 61203 61204 61206 61211 61212 61214 61237 61238 61261 61261 61262 61262 61302 61308 61339B 61351 61352 61401 61401A 61401B 61402 61402A 61402B 61505 61513 61545 61606 61607 61611 61612 61613 61619 61619B 61631 61631 61632 61632 61649 61705C 61706C 61707 61708 61708C 61728 61733 61734 61766A 61767A 61791 61805 61825 61826 62735 62911C 9016760001 9033325001 9046707050 9046707050 9095001011 9095001011 9095001011 9095001126 9095001212 9095001222 9095001344 9095006001 9095006012
Part # Description Qty Price
61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61103-95706

KM20..RHD;KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)

 1
61103-95710

KM20..RHD;KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)

 1
61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61104-95705

KM20..RHD..(ARL,GEN)

 1
61104-95708

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
61163 - PILLAR, FRONT BODY, INNER RH
61105-95702

KM20..RHD..(ARL,GEN)

 1
61164 - PILLAR, FRONT BODY, INNER LH
61106-95702

KM20..RHD..(ARL,GEN)

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61231-95701

CM20,KM20,YM2#..RHD..(HRF,SRF)

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61206-95702

KM20..RHD..(HRF,SRF)

 1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61234-95701

KM20..V5D

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95704

KM20..V5D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95703

KM20..V5D

 1
61214 - RAIL, ROOF SIDE, OUTER REAR LH
61214-95700

KM20..V5D

 1
61261 - CHANNEL, ROOF DRIP, RH
61267-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61263-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61261 - CHANNEL, ROOF DRIP, RH
61267-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61263-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61262 - CHANNEL, ROOF DRIP, LH
61264-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61268-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61262 - CHANNEL, ROOF DRIP, LH
61264-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61268-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-95701

KM20..V5D

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61304-95708

KM20..RHD..(HRF,SRF)..GEN

 1
61351 - COVER, CENTER BODY, INNER RH
61306-95701

KM20..(HRF,SRF)..GEN

 1
61306-95703

KM20..RHD..V5D..06S

NEW ZEALAND SPEC

 1
61352 - COVER, CENTER BODY, INNER, LH
61347-95701

CM20,KM20..(HRF,SRF)..GEN

 1
61347-95702

KM20..RHD..HRF..06S;KM20..RHD..V5D..06S

NEW ZEALAND SPEC

 1
61401 - PANEL SUB-ASSY, FENDER, RH
61411-95701

CM20,KM20,YM2#

 1
61401A - PANEL SUB-ASSY, FENDER, INNER RH
61421-95701

CM20,KM20,YM2#..HRF,SRF

 1
61401B - PANEL, FENDER, INNER LOWER RH
61423-95701

CM20,KM20,YM2#..HRF,SRF

 1
61402 - PANEL SUB-ASSY, FENDER, LH
61412-95701

CM20,KM20,YM2#

 1
61402A - PANEL SUB-ASSY, FENDER, INNER LH
61422-95701

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
61402B - PANEL, FENDER, INNER LOWER LH
61424-95701

CM20,KM20,YM2#..HRF,SRF

 1
61545 - REINFORCEMENT, REAR SEAT BACK STOPPER
71545-95700

CM20,KM20..RHD..VSG..(EUR,GEN)

 1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61605-95701

CM20,KM20,YM2#..HRF,SRF

 1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61606-95701

CM20,KM20,YM2#..HRF,SRF

 1
61611 - PANEL, QUARTER, RH
61611-95710

KM20..RHD..V5D..06S

 1
61612 - PANEL, QUARTER, LH
61612-95707

KM20..RHD..(05S,06S,09S)

 1
61619 - REINFORCEMENT, SLIDE DOOR LOCK STRIKER
61402-95700

KM20..V5D

LH

 1
61401-95700

KM20..V5D

RH

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61634-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61634-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61731-95724

KM20..RHD..V5D..06S

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61732-95707

KM20..RHD..VSG

 1
61733 - GUSSET, QUARTER, INNER RH
61701-95701

CM20,KM20,YM2#..HRF,SRF

 1
61734 - GUSSET, QUARTER, INNER LH
61702-95700

CM20,KM20,YM2#..HRF,SRF

 1
61791 - BRACE, QUARTER INNER PANEL
61784-95700

KM20..V5D

LH

 1
61783-95701

KM20..V5D

RH

 1
61825 - PLATE, QUARTER INNER PANEL, LOWER FRONT RH
64153-95703

KM20..V5D

 1
61826 - PLATE, QUARTER INNER PANEL, LOWER FRONT LH
64154-95701

KM20..V5D

 1
Common parts
55457-10050
90167-60001
90333-25001
90467-07050
90950-01011
90950-01126
90950-01212
90950-01222
90950-01344
90950-06001
90950-06012

(7910- )V5D

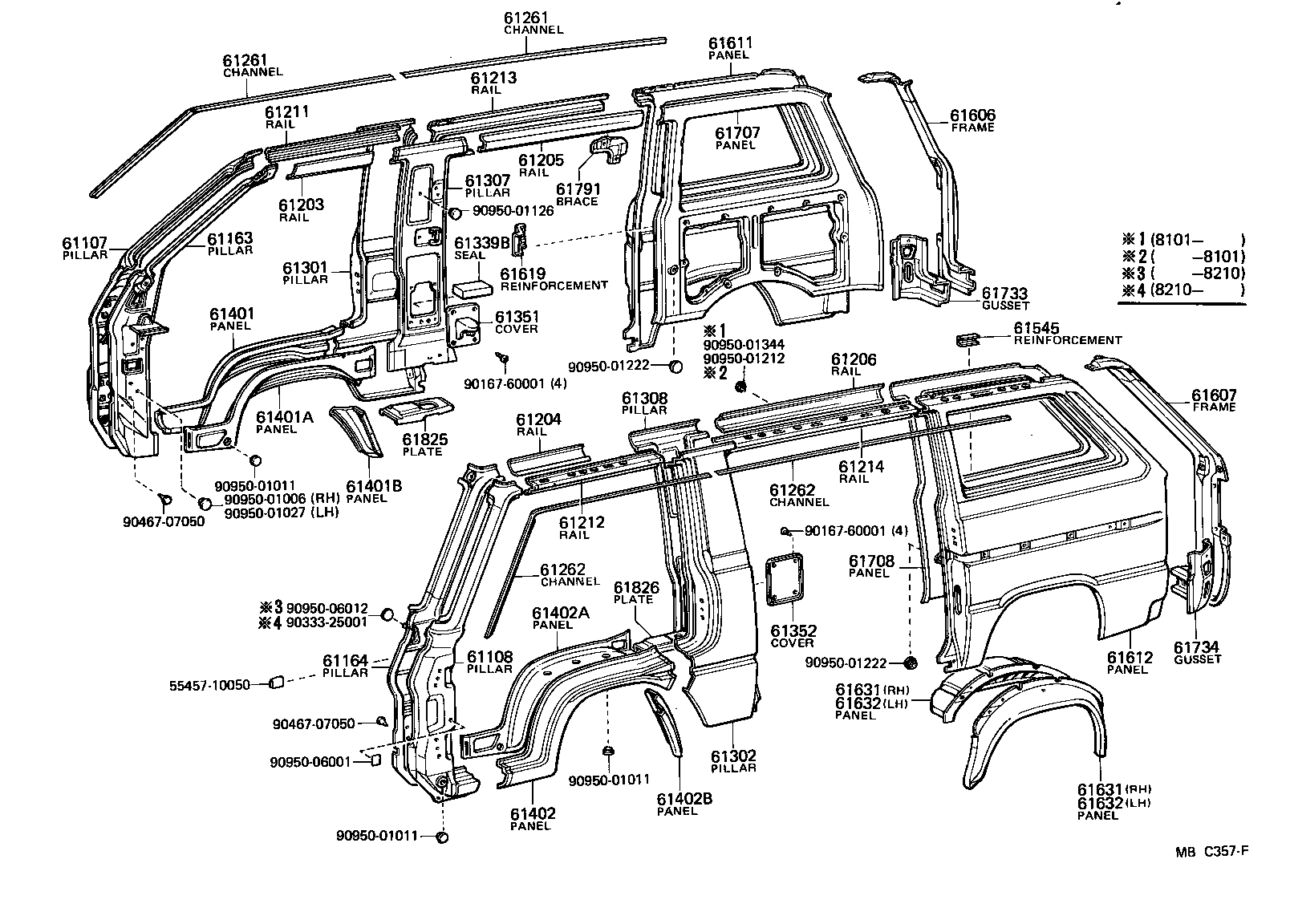

Click highlighted areas on diagram

diagram 5545710050 61107 61108 61163 61164 61203 61204 61205 61206 61211 61212 61213 61214 61261 61261 61262 61262 61301 61302 61307 61308 61339B 61351 61352 61401 61401A 61401B 61402 61402A 61402B 61545 61606 61607 61611 61612 61619 61631 61631 61632 61632 61707 61708 61733 61734 61791 61825 61826 9016760001 9016760001 9033325001 9046707050 9046707050 9095001006 9095001011 9095001011 9095001011 9095001027 9095001126 9095001212 9095001222 9095001222 9095001344 9095006001 9095006012
Part # Description Qty Price
61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61103-95706

KM20..RHD;KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)

 1
61103-95710

KM20..RHD;KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)

 1
61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61104-95705

KM20..RHD..(ARL,GEN)

 1
61104-95708

KM20..RHD..(HRF,SRF)..(ARL,GEN)

 1
61163 - PILLAR, FRONT BODY, INNER RH
61105-95702

KM20..RHD..(ARL,GEN)

 1
61164 - PILLAR, FRONT BODY, INNER LH
61106-95702

KM20..RHD..(ARL,GEN)

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61231-95701

CM20,KM20,YM2#..RHD..(HRF,SRF)

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61206-95702

KM20..RHD..(HRF,SRF)

 1
61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61233-95701

KM20..V5D

 1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61234-95701

KM20..V5D

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95704

KM20..V5D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95703

KM20..V5D

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61213-95700

KM20..V5D

 1
61214 - RAIL, ROOF SIDE, OUTER REAR LH
61214-95700

KM20..V5D

 1
61261 - CHANNEL, ROOF DRIP, RH
61267-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61263-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61261 - CHANNEL, ROOF DRIP, RH
61267-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61263-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61262 - CHANNEL, ROOF DRIP, LH
61264-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61268-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61262 - CHANNEL, ROOF DRIP, LH
61264-95700

CM20,KM20,YM2#..HRF,SRF

FR

 1
61268-95700

CM20,KM20,YM2#..HRF,SRF

RR

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-95701

KM20..V5D

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-95701

KM20..V5D

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61303-95705

KM20..RHD..V5D

 1
61303-95708

KM20..RHD..V5D..06S

NEW ZEALAND SPEC

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61304-95708

KM20..RHD..(HRF,SRF)..GEN

 1
61351 - COVER, CENTER BODY, INNER RH
61306-95701

KM20..(HRF,SRF)..GEN

 1
61306-95703

KM20..RHD..V5D..06S

NEW ZEALAND SPEC

 1
61352 - COVER, CENTER BODY, INNER, LH
61347-95701

CM20,KM20..(HRF,SRF)..GEN

 1
61347-95702

KM20..RHD..HRF..06S;KM20..RHD..V5D..06S

NEW ZEALAND SPEC

 1
61401 - PANEL SUB-ASSY, FENDER, RH
61411-95701

CM20,KM20,YM2#

 1
61401A - PANEL SUB-ASSY, FENDER, INNER RH
61421-95701

CM20,KM20,YM2#..HRF,SRF

 1
61401B - PANEL, FENDER, INNER LOWER RH
61423-95701

CM20,KM20,YM2#..HRF,SRF

 1
61402 - PANEL SUB-ASSY, FENDER, LH
61412-95701

CM20,KM20,YM2#

 1
61402A - PANEL SUB-ASSY, FENDER, INNER LH
61422-95701

KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)

 1
61402B - PANEL, FENDER, INNER LOWER LH
61424-95701

CM20,KM20,YM2#..HRF,SRF

 1
61545 - REINFORCEMENT, REAR SEAT BACK STOPPER
71545-95700

CM20,KM20..RHD..VSG..(EUR,GEN)

 1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61605-95701

CM20,KM20,YM2#..HRF,SRF

 1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61606-95701

CM20,KM20,YM2#..HRF,SRF

 1
61611 - PANEL, QUARTER, RH
61611-95710

KM20..RHD..V5D..06S

 1
61612 - PANEL, QUARTER, LH
61612-95707

KM20..RHD..(05S,06S,09S)

 1
61619 - REINFORCEMENT, SLIDE DOOR LOCK STRIKER
61402-95700

KM20..V5D

LH

 1
61401-95700

KM20..V5D

RH

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61634-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61631-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

OUTER

 1
61634-95701

CM20,KM20,YM2#..HRF,SRF

INNER

 1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61731-95724

KM20..RHD..V5D..06S

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61732-95707

KM20..RHD..VSG

 1
61733 - GUSSET, QUARTER, INNER RH
61701-95701

CM20,KM20,YM2#..HRF,SRF

 1
61734 - GUSSET, QUARTER, INNER LH
61702-95700

CM20,KM20,YM2#..HRF,SRF

 1
61791 - BRACE, QUARTER INNER PANEL
61784-95700

KM20..V5D

LH

 1
61783-95701

KM20..V5D

RH

 1
61825 - PLATE, QUARTER INNER PANEL, LOWER FRONT RH
64153-95703

KM20..V5D

 1
61826 - PLATE, QUARTER INNER PANEL, LOWER FRONT LH
64154-95701

KM20..V5D

 1
Common parts
55457-10050
90167-60001
90333-25001
90467-07050
90950-01006
90950-01011
90950-01027
90950-01126
90950-01212
90950-01222
90950-01344
90950-06001
90950-06012
